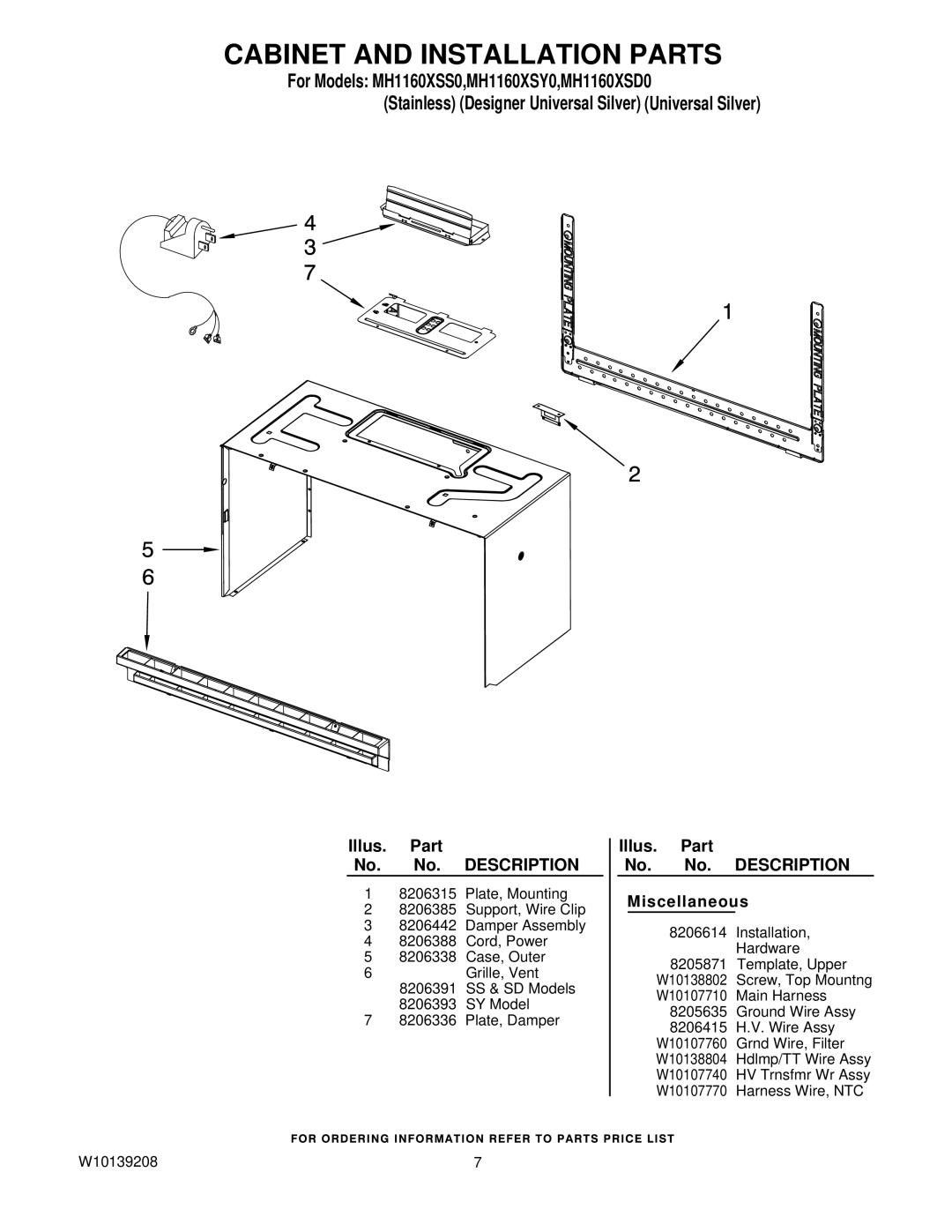

CABINET AND INSTALLATION PARTS

For Models: MH1160XSS0,MH1160XSY0,MH1160XSD0

(Stainless) (Designer Universal Silver) (Universal Silver)

Illus. Part

No. No. DESCRIPTION

18206315 Plate, Mounting

28206385 Support, Wire Clip

38206442 Damper Assembly

48206388 Cord, Power

58206338 Case, Outer

6Grille, Vent

8206391 SS & SD Models

8206393 SY Model

78206336 Plate, Damper

Illus. Part

No. No. DESCRIPTION

Miscellaneous

8206614 Installation,

Hardware

8205871 Template, Upper

W10138802 Screw, Top Mountng

W10107710 Main Harness

8205635 Ground Wire Assy

8206415 H.V. Wire Assy

W10107760 Grnd Wire, Filter

W10138804 Hdlmp/TT Wire Assy

W10107740 HV Trnsfmr Wr Assy

W10107770 Harness Wire, NTC

W10139208

7

Page 7
Image 7
Whirlpool MH1160XSY0, MH1160XSS0, MH1160XSD0 Cabinet and Installation Parts, Illus. Part No. No. Description Miscellaneous

MH1160XSD0, MH1160XSY0, MH1160XSS0 specifications

The Whirlpool MH1160XSD0, MH1160XSS0, and MH1160XSY0 are part of a popular line of over-the-range microwaves known for their attractive design and versatile functionality. Each model features a sleek stainless steel finish that complements modern kitchen aesthetics. They are designed not just to cook food efficiently but also to enhance the look of your kitchen space.

One of the primary features of these microwaves is their spacious interior. With a capacity of 1.6 cubic feet, they provide ample room for heating large plates and recipes, making them a great choice for families and home chefs alike. The turntable feature ensures even cooking by allowing microwaves to circulate evenly throughout the cavity.

These models are equipped with a powerful ventilation system, including a two-speed vent fan that effectively eliminates smoke, steam, and odors from your kitchen while you cook. This is particularly beneficial for over-the-range models, as they help maintain a clean kitchen environment. The fan can be adjusted between different speeds based on your cooking needs, offering flexibility and efficiency.

Another highlight is the microwave's intuitive controls. With a straightforward keypad and dedicated buttons for popular functions like popcorn, defrosting, and re-heating, users can easily operate the microwave with minimal effort. The cooking presets help eliminate guesswork, ensuring that your food is cooked to perfection every time.

These models incorporate innovative sensor cooking technology that detects the humidity level of the food, automatically adjusting the cooking time for optimal results. This feature is particularly handy for reheating leftovers or cooking frozen foods, as it takes the guesswork out of the equation, delivering consistent results.

The Whirlpool MH1160XSD0, MH1160XSS0, and MH1160XSY0 also prioritize convenience and safety. With features like a child lock function and an interior light, they provide additional user-friendly capabilities. The easy-to-clean interior with a smudge-resistant finish allows homeowners to maintain a pristine cooking space without excessive effort.

In summary, Whirlpool’s MH1160XSD0, MH1160XSS0, and MH1160XSY0 models combine style and functionality, making them an excellent addition to any contemporary kitchen. With powerful cooking capabilities, effective ventilation, user-friendly controls, and innovative cooking technologies, they are designed to meet the needs of both casual cooks and culinary enthusiasts alike.
