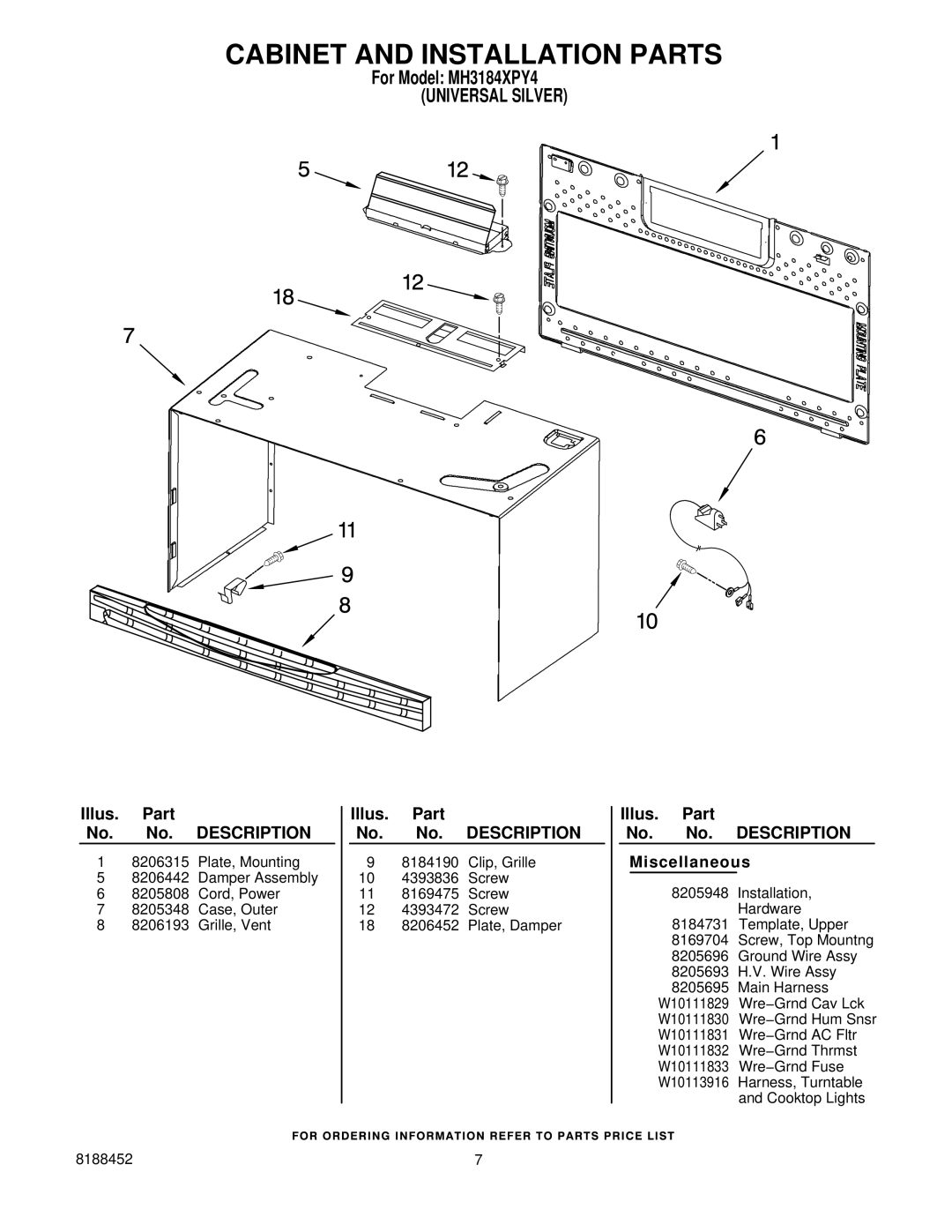

CABINET AND INSTALLATION PARTS

For Model: MH3184XPY4

(UNIVERSAL SILVER)

Illus.

Part



No.

No.

DESCRIPTION

1

8206315

Plate, Mounting

58206442 Damper Assembly

68205808 Cord, Power

78205348 Case, Outer

88206193 Grille, Vent

Illus. Part

No. No. DESCRIPTION

98184190 Clip, Grille

104393836 Screw

118169475 Screw

124393472 Screw

18 8206452 Plate, Damper

Illus. Part

No. No. DESCRIPTION

Miscellaneous

8205948 Installation,

Hardware

8184731 Template, Upper

8169704 Screw, Top Mountng

8205696 Ground Wire Assy

8205693 H.V. Wire Assy

8205695 Main Harness

W10111829 Wre−Grnd Cav Lck

W10111830 Wre−Grnd Hum Snsr

W10111831 Wre−Grnd AC Fltr

W10111832 Wre−Grnd Thrmst

W10111833 Wre−Grnd Fuse

W10113916 Harness, Turntable

and Cooktop Lights

8188452

7
