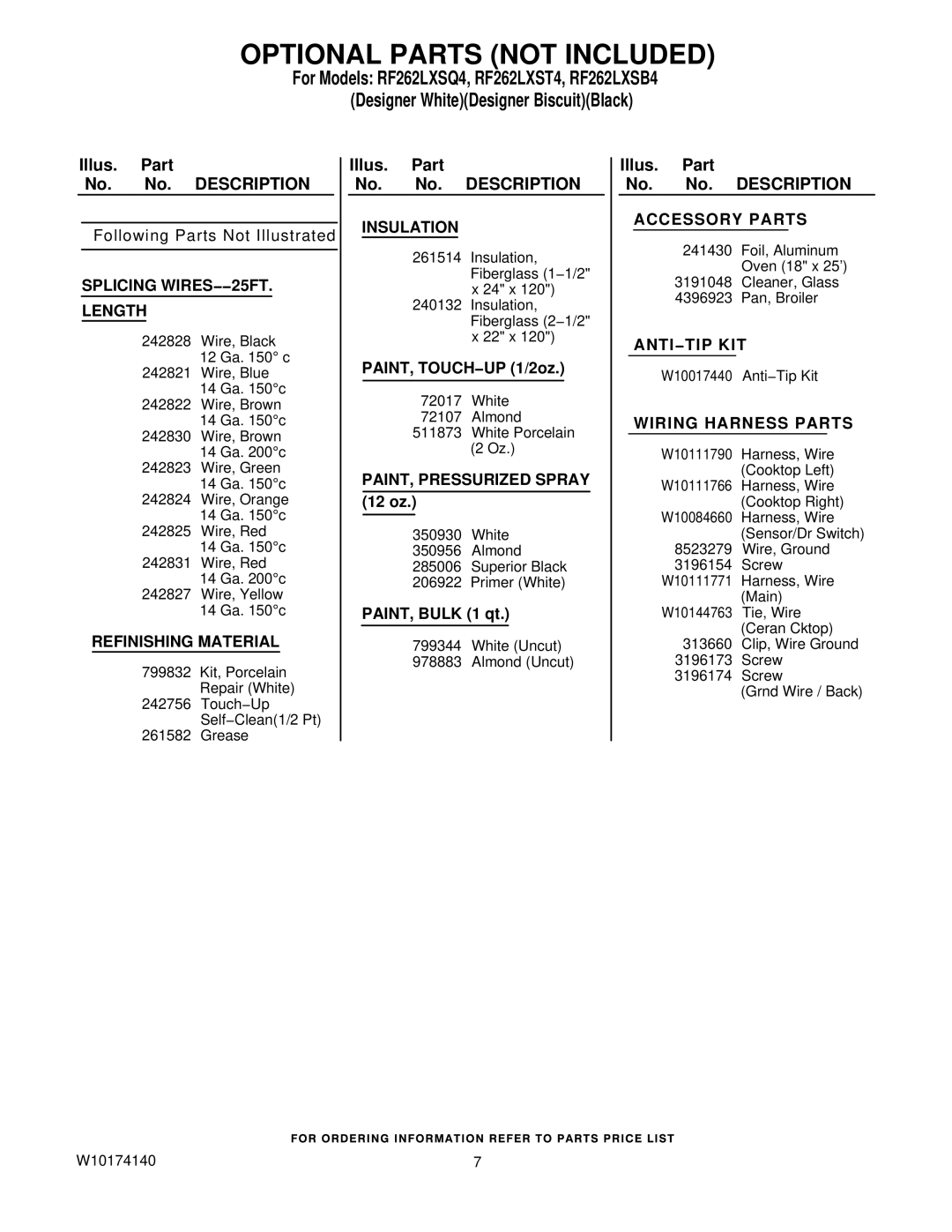

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF262LXSQ4, RF262LXST4, RF262LXSB4 (Designer White)(Designer Biscuit)(Black)

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828

Wire, Black



12

Ga. 150 c

242821

Wire, Blue



14

Ga. 150 c

242822

Wire, Brown



14

Ga. 150 c

242830

Wire, Brown



14

Ga. 200 c

242823

Wire, Green



14

Ga. 150 c

242824

Wire, Orange



14

Ga. 150 c

242825

Wire, Red



14

Ga. 150 c

242831

Wire, Red



14

Ga. 200 c

242827

Wire, Yellow



14

Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

Illus. Part

No. No. DESCRIPTION

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350956 Almond

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25')

3191048 Cleaner, Glass

4396923 Pan, Broiler

ANTI−TIP KIT

W10017440 Anti−Tip Kit

WIRING HARNESS PARTS

W10111790 Harness, Wire

(Cooktop Left)

W10111766 Harness, Wire

(Cooktop Right)

W10084660 Harness, Wire

(Sensor/Dr Switch)

8523279 Wire, Ground

3196154 Screw

W10111771 Harness, Wire

(Main)

W10144763 Tie, Wire

(Ceran Cktop)

313660 Clip, Wire Ground

3196173 Screw

3196174 Screw

(Grnd Wire / Back)

W10174140

7

Page 7
