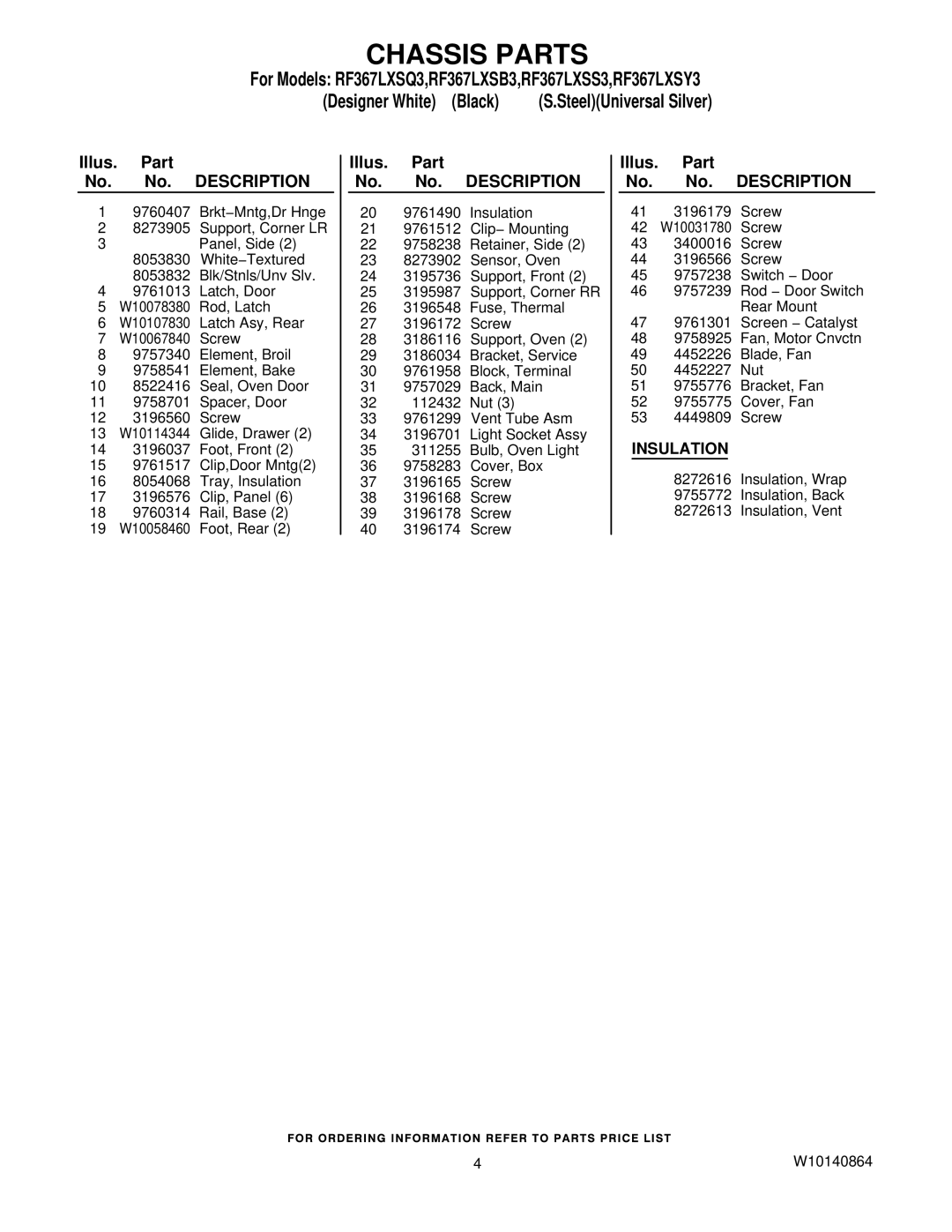

CHASSIS PARTS
For Models: RF367LXSQ3,RF367LXSB3,RF367LXSS3,RF367LXSY3
(Designer White) (Black) (S.Steel)(Universal Silver)
Illus. Part
No. No. DESCRIPTION
19760407 Brkt−Mntg,Dr Hnge
28273905 Support, Corner LR
3Panel, Side (2)
8053830 White−Textured
8053832 Blk/Stnls/Unv Slv.
49761013 Latch, Door
5W10078380 Rod, Latch
6W10107830 Latch Asy, Rear
7W10067840 Screw
89757340 Element, Broil
99758541 Element, Bake
108522416 Seal, Oven Door
119758701 Spacer, Door
123196560 Screw
13W10114344 Glide, Drawer (2)
143196037 Foot, Front (2)
159761517 Clip,Door Mntg(2)
168054068 Tray, Insulation
173196576 Clip, Panel (6)
189760314 Rail, Base (2)
19W10058460 Foot, Rear (2)
Illus. Part
No. No. DESCRIPTION
209761490 Insulation
219761512 Clip− Mounting
229758238 Retainer, Side (2)
238273902 Sensor, Oven
243195736 Support, Front (2)
253195987 Support, Corner RR
263196548 Fuse, Thermal
273196172 Screw
283186116 Support, Oven (2)
293186034 Bracket, Service
309761958 Block, Terminal
319757029 Back, Main
32112432 Nut (3)
339761299 Vent Tube Asm
343196701 Light Socket Assy
35311255 Bulb, Oven Light
369758283 Cover, Box
373196165 Screw
383196168 Screw
393196178 Screw
403196174 Screw
Illus. Part
No. No. DESCRIPTION
413196179 Screw
42W10031780 Screw
433400016 Screw
443196566 Screw
459757238 Switch − Door
469757239 Rod − Door Switch Rear Mount
479761301 Screen − Catalyst
489758925 Fan, Motor Cnvctn
494452226 Blade, Fan
504452227 Nut
519755776 Bracket, Fan
529755775 Cover, Fan
534449809 Screw
INSULATION
8272616 Insulation, Wrap
9755772 Insulation, Back
8272613 Insulation, Vent
4 | W10140864 |
