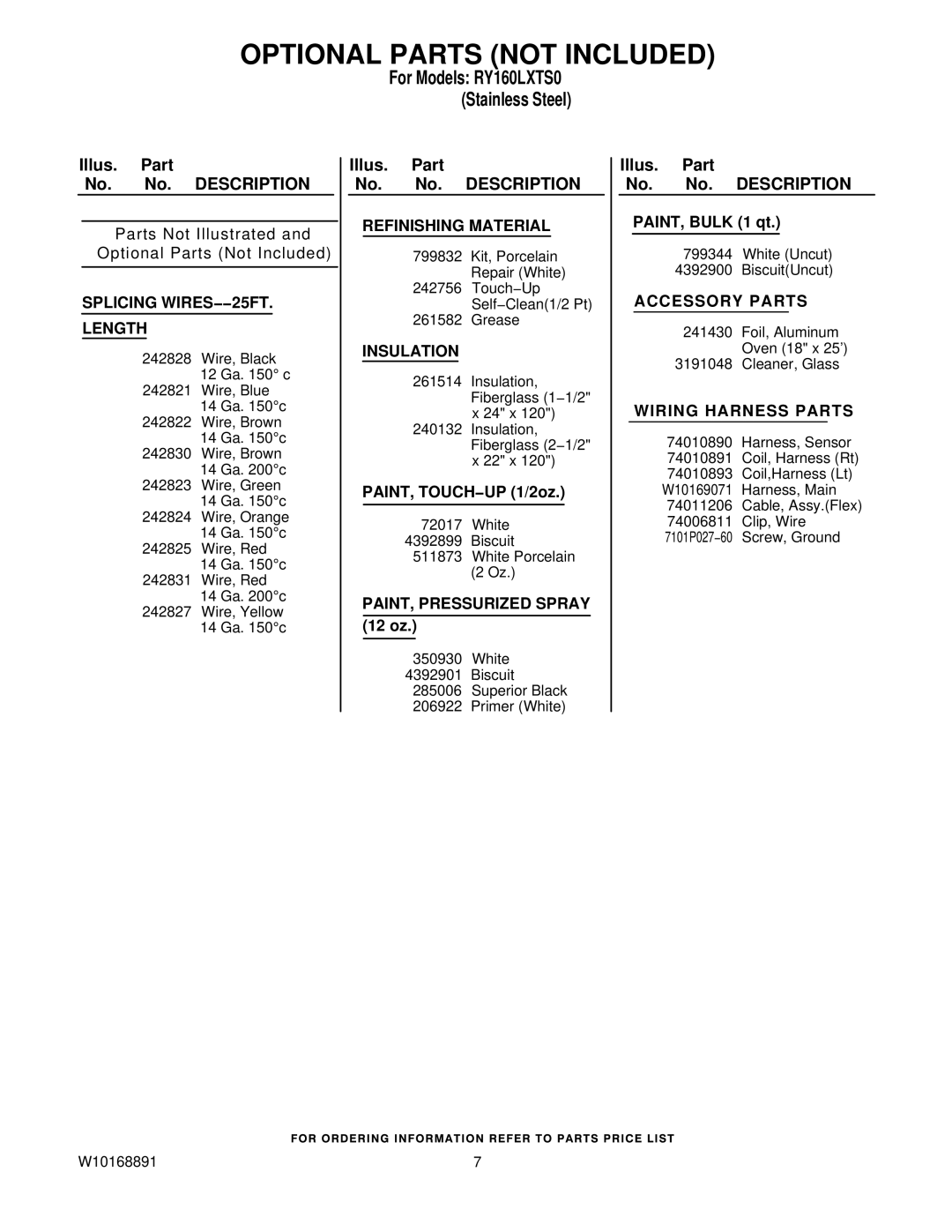

OPTIONAL PARTS (NOT INCLUDED)

For Models: RY160LXTS0

(Stainless Steel)

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828

Wire, Black



12

Ga. 150 c

242821

Wire, Blue



14

Ga. 150 c

242822

Wire, Brown



14

Ga. 150 c

242830

Wire, Brown



14

Ga. 200 c

242823

Wire, Green



14

Ga. 150 c

242824

Wire, Orange



14

Ga. 150 c

242825

Wire, Red



14

Ga. 150 c

242831

Wire, Red



14

Ga. 200 c

242827

Wire, Yellow



14

Ga. 150 c

Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

Illus. Part

No. No. DESCRIPTION

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25')

3191048 Cleaner, Glass

WIRING HARNESS PARTS

74010890 Harness, Sensor

74010891 Coil, Harness (Rt)

74010893 Coil,Harness (Lt)

W10169071 Harness, Main

74011206 Cable, Assy.(Flex)

74006811 Clip, Wire

7101P027−60 Screw, Ground

W10168891

7

Page 7
