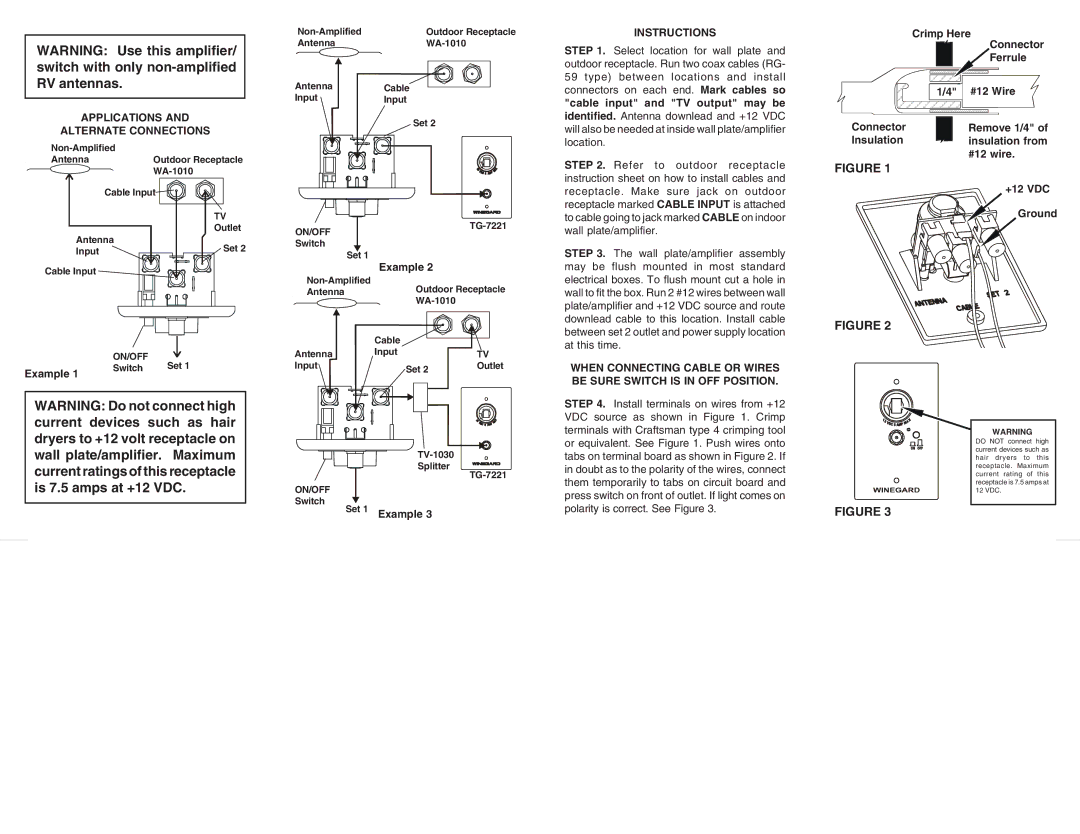

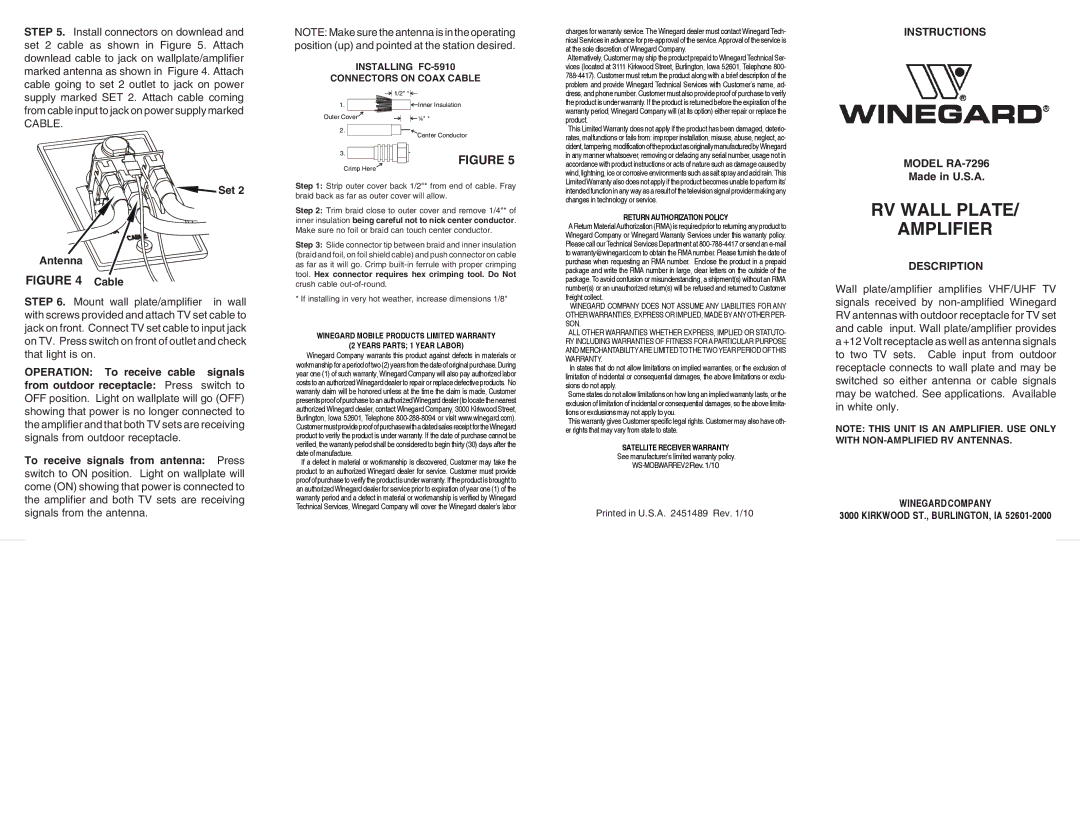

STEP 5. Install connectors on downlead and set 2 cable as shown in Figure 5. Attach downlead cable to jack on wallplate/amplifier marked antenna as shown in Figure 4. Attach cable going to set 2 outlet to jack on power supply marked SET 2. Attach cable coming
charges for warranty service. The Winegard dealer must contact Winegard Tech- nical Services in advance for pre-approval of the service.Approval of the service is at the sole discretion of Winegard Company.
Alternatively, Customer may ship the product prepaid to Winegard Technical Ser- vices (located at 3111 Kirkwood Street, Burlington, Iowa 52601, Telephone 800- 788-4417). Customer must return the product along with a brief description of the problem and provide Winegard Technical Services with Customer’s name, ad- dress, and phone number. Customer must also provide proof of purchase to verify
INSTRUCTIONS
from cable input to jack on power supply marked
CABLE.
1. Outer Cover
2.
3.
Crimp Here
Inner Insulation
¼" *
Center Conductor
FIGURE 5
the product is under warranty. If the product is returned before the expiration of the warranty period, Winegard Company will (at its option) either repair or replace the product.
This Limited Warranty does not apply if the product has been damaged, deterio- rates, malfunctions or fails from: improper installation, misuse, abuse, neglect, ac- cident,tampering,modificationofthe productasoriginallymanufacturedbyWinegard in any manner whatsoever, removing or defacing any serial number, usage not in accordance with product instructions or acts of nature such as damage caused by wind, lightning, ice or corrosive environments such as salt spray and acid rain. This
MODEL RA-7296
Step 1: Strip outer cover back 1/2"* from end of cable. Fray braid back as far as outer cover will allow.
Step 2: Trim braid close to outer cover and remove 1/4"* of inner insulation being careful not to nick center conductor. Make sure no foil or braid can touch center conductor.
Step 3: Slide connector tip between braid and inner insulation (braid and foil, on foil shield cable) and push connector on cable as far as it will go. Crimp built-in ferrule with proper crimping tool. Hex connector requires hex crimping tool. Do Not crush cable out-of-round.
* If installing in very hot weather, increase dimensions 1/8"
WINEGARD MOBILE PRODUCTS LIMITED WARRANTY
(2 YEARS PARTS; 1 YEAR LABOR)
Winegard Company warrants this product against defects in materials or workmanship for a period of two (2) years from the date of original purchase. During year one (1) of such warranty, Winegard Company will also pay authorized labor costs to an authorized Winegard dealer to repair or replace defective products. No warranty claim will be honored unless at the time the claim is made, Customer presents proof of purchase to an authorized Winegard dealer (to locate the nearest authorized Winegard dealer, contact Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone 800-288-8094 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor
Limited Warranty also does not apply if the product becomes unable to perform its’ intended function in any way as a result of the television signal provider making any changes in technology or service.
RETURN AUTHORIZATION POLICY
AReturn MaterialAuthorization (RMA) is required prior to returning any product to Winegard Company or Winegard Warranty Services under this warranty policy. Please call our Technical Services Department at 800-788-4417 or send an e-mail to warranty@winegard.com to obtain the RMA number. Please furnish the date of purchase when requesting an RMA number. Enclose the product in a prepaid package and write the RMA number in large, clear letters on the outside of the package. To avoid confusion or misunderstanding, a shipment(s) without an RMA number(s) or an unauthorized return(s) will be refused and returned to Customer freight collect.
WINEGARD COMPANY DOES NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, MADE BYANY OTHER PER- SON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTO- RY INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITYARE LIMITED TOTHE TWO YEAR PERIOD OFTHIS WARRANTY.
In states that do not allow limitations on implied warranties, or the exclusion of limitation of incidental or consequential damages, the above limitations or exclu- sions do not apply.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental or consequential damages, so the above limita- tions or exclusions may not apply to you.
This warranty gives Customer specific legal rights. Customer may also have oth- er rights that may vary from state to state.
SATELLITE RECEIVER WARRANTY
See manufacturer’s limited warranty policy.
WS-MOBWARREV2Rev.1/10
Printed in U.S.A. 2451489 Rev. 1/10
Made in U.S.A.
RV WALL PLATE/
AMPLIFIER
DESCRIPTION
Wall plate/amplifier amplifies VHF/UHF TV signals received by non-amplified Winegard RV antennas with outdoor receptacle for TV set and cable input. Wall plate/amplifier provides a +12 Volt receptacle as well as antenna signals to two TV sets. Cable input from outdoor receptacle connects to wall plate and may be switched so either antenna or cable signals may be watched. See applications. Available in white only.
NOTE: THIS UNIT IS AN AMPLIFIER. USE ONLY WITH NON-AMPLIFIED RV ANTENNAS.
WINEGARD COMPANY
3000 KIRKWOOD ST., BURLINGTON, IA 52601-2000
1/2" *
Set 2
