BROADBAND YAGI

ANTENNA

Clearly the World's Best®

engineering specifications

Model YA-1713

Active Elements

10





Boom Length

99.875"



Turning Radius

61"





Maximum Width

35"

Net Weight

3.25 lbs.

Vertical Height

3"

Shpg. Weight

5.3 lbs.

Element Diameter 3/8" Carton Dimensions 6.25"x6.25"x59"

Output Impedance: 75 ohm

Recommended Preamp: AP Series

"UPS in shield design is a registered trademark of United Parcel Service of America, Inc. used by permission."

Made in U.S.A.

CHANNEL

CH.7

CH.9



CH.11

CH.13













dB gain over

9.1

10



10

10.3

reference dipole

























beamwidth at half

56°

55°



47°

40°

power points

























front-to-back

10.5dB

18dB



19dB

14dB

ratio





























POLAR PATTERNS





Printed in U.S.A. Winegard Company, 3000 Kirkwood St., Burlington, IA 52601-2000

Page 1

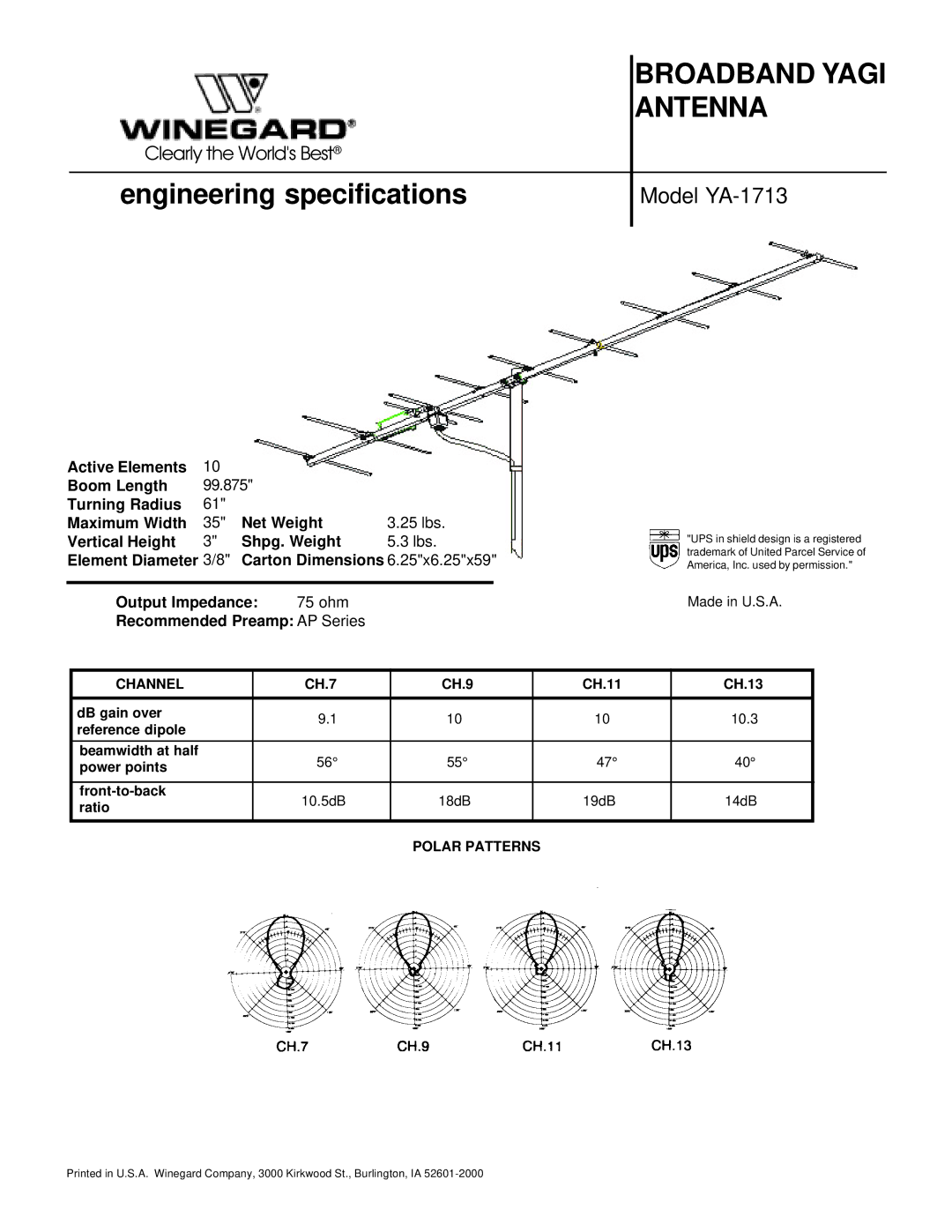

Image 1
Winegard specifications Broadband Yagi Antenna, Engineering specifications, Model YA-1713, Channel, Polar Patterns

YA-1713 specifications
