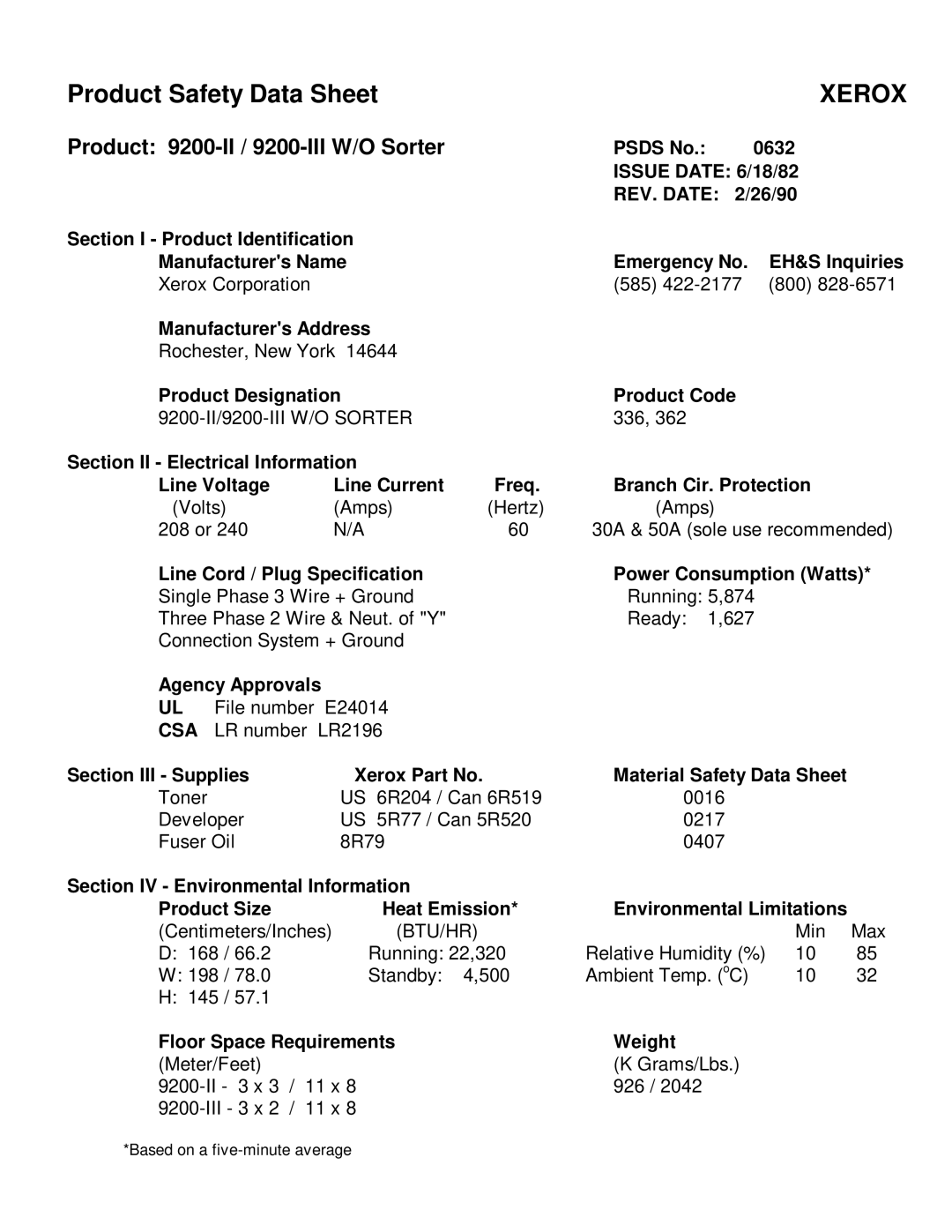

Product Safety Data Sheet |
|
| XEROX | |
Product: |
| PSDS No.: | 0632 | |
|
|
| ISSUE DATE: 6/18/82 | |
|
|
| REV. DATE: 2/26/90 | |
Section I - Product Identification |
|
|
| |
Manufacturer's Name |
| Emergency No. | EH&S Inquiries | |
Xerox Corporation |
|
| (585) | (800) |
Manufacturer's Address |
|
|
| |
Rochester, New York 14644 |
|
|
| |
Product Designation |
| Product Code |
| |
| 336, 362 |
| ||
Section II - Electrical Information |
|
|
| |
Line Voltage | Line Current | Freq. | Branch Cir. Protection | |
(Volts) | (Amps) | (Hertz) | (Amps) |
|
208 or 240 | N/A | 60 | 30A & 50A (sole use recommended) |
Line Cord / Plug Specification | Power Consumption (Watts)* | |
Single Phase 3 Wire + Ground | Running: 5,874 | |
Three Phase 2 Wire & Neut. of "Y" | Ready: 1,627 | |
Connection System + Ground |
| |
Agency Approvals |
| |
UL | File number E24014 |
|
CSA | LR number LR2196 |
|
Section III - Supplies |
|
| Xerox Part No. | Material Safety Data Sheet |
| |
Toner |
|
| US 6R204 / Can 6R519 | 0016 |
|
|
Developer |
|
| US 5R77 / Can 5R520 | 0217 |
|
|
Fuser Oil |
|
| 8R79 | 0407 |
|
|
Section IV - Environmental Information |
|
|
| |||
Product Size |
|
| Heat Emission* | Environmental Limitations |
| |
(Centimeters/Inches) | (BTU/HR) |
| Min | Max | ||
D: 168 / 66.2 |
|
| Running: 22,320 | Relative Humidity (%) | 10 | 85 |
W: 198 / 78.0 |
|
| Standby: 4,500 | Ambient Temp. (oC) | 10 | 32 |
H: 145 / 57.1 |
|
|
|
|
|
|
Floor Space Requirements | Weight |
|
| |||
(Meter/Feet) |
|
|
| (K Grams/Lbs.) |
|
|
/ | 11 x 8 | 926 / 2042 |
|
| ||
/ | 11 x 8 |
|
|
|
*Based on a
