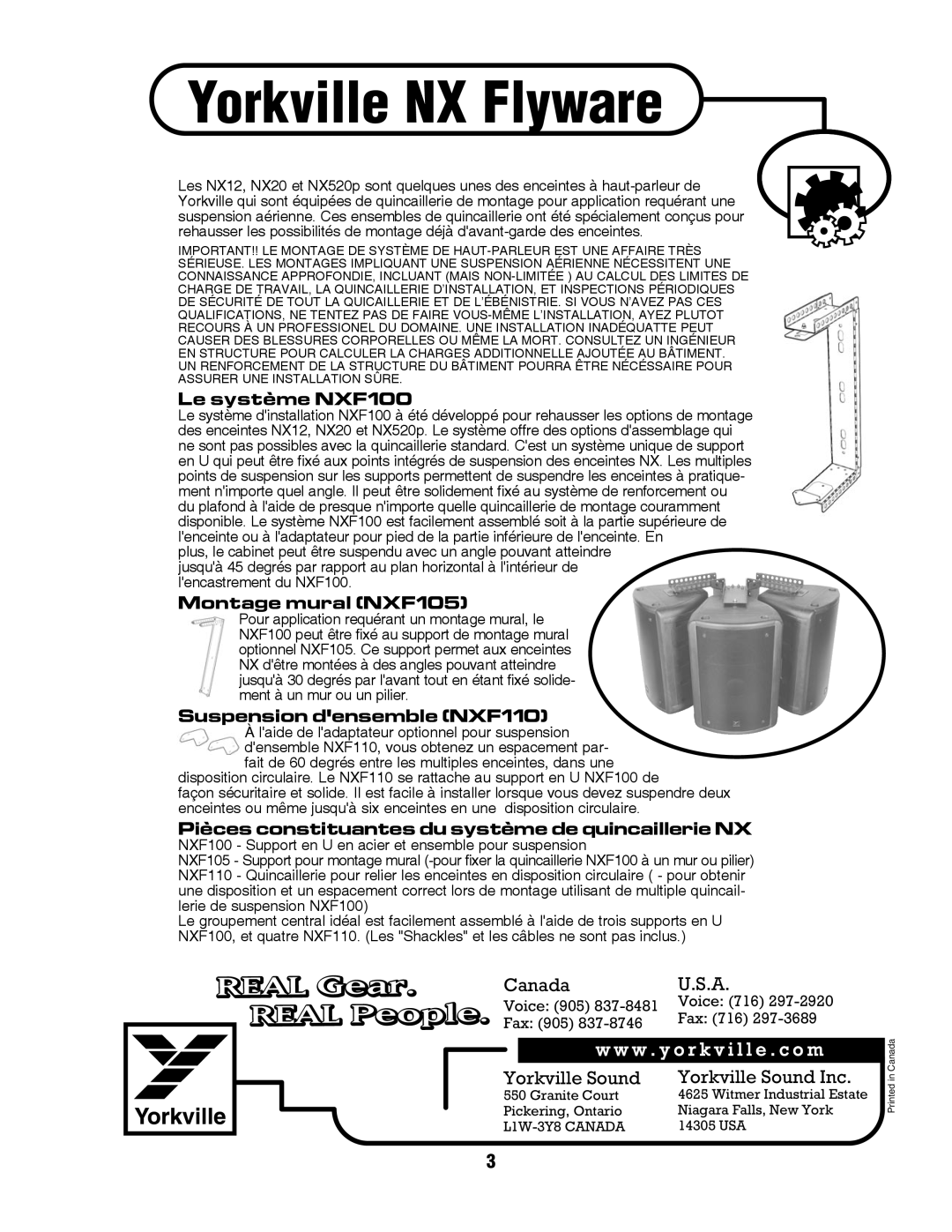

Yorkville NX Flyware

The NX12, NX20 and NX520p are a few of the many Yorkville speaker enclo- sures equipped with flying hardware for overhead suspension applications. These hardware kits have been specifically designed to expand the enclosure’s already advanced mounting capabilities.

IMPORTANT!! THE RIGGING OF LOUDSPEAKER SYSTEMS IS AN EXTREMELY SERIOUS MATTER. OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, INCLUDING (BUT NOT LIMITED TO) CALCULATING WORKING LOAD LIMITS, HARDWARE INSTALLATION, AND PERIODIC SAFETY INSPECTION OF ALL HARDWARE AND CABINETRY. IF YOU LACK THESE QUALIFICATIONS,

DO NOT ATTEMPT THE INSTALLATION YOURSELF, BUT INSTEAD USE A PROFESSIONAL STRUCTURAL RIGGER. IMPROPER INSTALLATION CAN RESULT IN BODILY INJURY OR DEATH. CONSULT A STRUCTURAL ENGINEER TO CALCULATE ADDED LOADS FOR A BUILDING. STRUCTURAL REINFORCEMENT MAY BE NECESSARY TO INSURE A SAFE INSTALLATION.

The NXF100 System

The NXF100 installation system has been developed to expand the NX12, NX20 and the NX520p enclosure’s capabilities to be mounted in more ways than a stan- dard shackle and cables allow. It’s a unique U-bracket system that attaches to the NX enclosures’ integrated flypoints. Multiple flypoints on the brackets ensure the rig can be flown at virtually any angle. It can be secured to the truss or roofing system with almost any typical flyware currently available. The NXF100 is easily mounted to the top of the enclosure as well as the bottom standmount adapter. Additionally, the cabinet can be angled up to 45 degrees across the horizon-

tal plane within the NXF100 housing.

Wall Mounting (NXF105) For wall mounting applications, the NXF100 can be attached to an optional NXF105 wall-mount bracket. This bracket enables the NX enclosure to achieve angles up to 30 degrees forward while being securely attached to a wall or pillar.

Flying Arrays (NXF110) Using the optional NXF110 Flying Array Adapter perfect 60 degree spacing between multiple enclosures,

in a circular array is achieved. The NXF110 joins the NXF100 U-Brackets together safely and securely

and is extremely simple to install for flying two enclosure or up to six cabinets in the circular arrays.

NX Flyware System Components NXF100 - Steel U-Bracket and flying assembly

NXF105 - Wall Mounting Bracket ( - to attach NXF100 assembly to wall or piller) NXF110 - Array Link Assembly ( - to properly array and space out multiple NXF100 Flying assemblies)

The ideal center cluster array is easily assembled using three NXF100 U brackets, and four NXF110s. (Shackles and cables not included.)

CanadaU.S.A.

Voice: (905) 837-8481

Voice: (716) 297-2920

Fax: (716) 297-3689

Fax: (905) 837-8746





w w w . y o r k v i l l e . c o m





Yorkville Sound

Yorkville Sound Inc.

550 Granite Court

4625 Witmer Industrial Estate

Pickering, Ontario

Niagara Falls, New York

L1W-3Y8 CANADA

14305 USA

Printed in Canada

1
