All models have right-angled side edges to allow flush-fitting joins between units eliminating gaps and possible dirt traps.

Stainless steel oven chamber with

3 levels of runners to accommodate 2/1GN shelves.

Inside door panel in stainless steel.

Handles on the oven in stainless steel.

IPX4 water protection.

6 BURNER GAS RANGES

N 700

Main connections can be via the base of the unit.

All gas appliances are supplied for use with natural gas, LPG or town gas. Conversion jets supplied as standard.

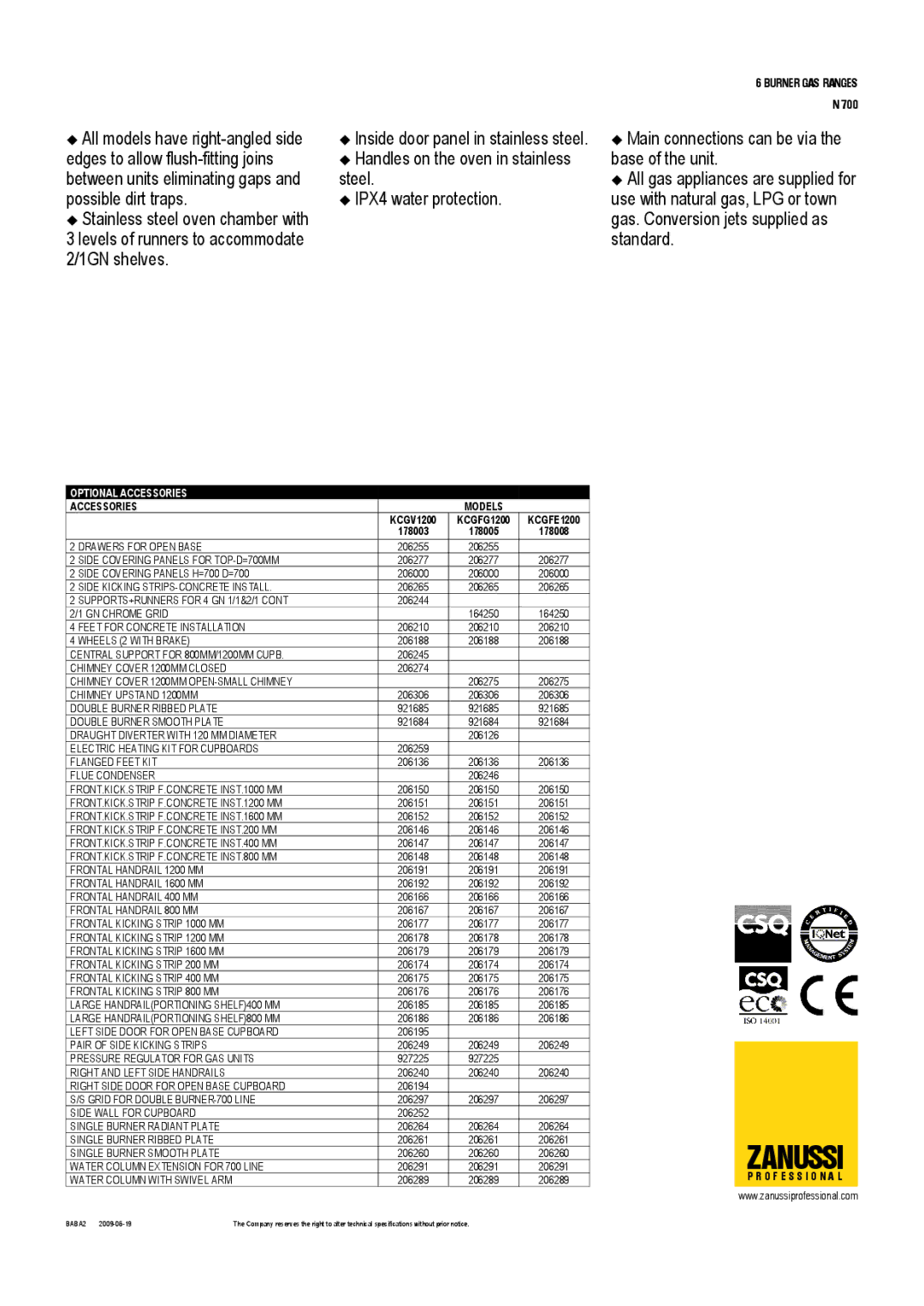

OPTIONAL ACCESSORIES







ACCESSORIES



MODELS





KCGV1200

KCGFG1200

KCGFE1200



178003

178005

178008

2 DRAWERS FOR OPEN BASE

206255

206255



2 SIDE COVERING PANELS FOR TOP-D=700MM

206277

206277

206277

2 SIDE COVERING PANELS H=700 D=700

206000

206000

206000

2 SIDE KICKING STRIPS-CONCRETE INSTALL.

206265

206265

206265

2 SUPPORTS+RUNNERS FOR 4 GN 1/1&2/1 CONT

206244





2/1 GN CHROME GRID



164250

164250

4 FEET FOR CONCRETE INSTALLATION

206210

206210

206210

4 WHEELS (2 WITH BRAKE)

206188

206188

206188

CENTRAL SUPPORT FOR 800MM/1200MM CUPB.

206245





CHIMNEY COVER 1200MM CLOSED

206274





CHIMNEY COVER 1200MM OPEN-SMALL CHIMNEY



206275

206275

CHIMNEY UPSTAND 1200MM

206306

206306

206306

DOUBLE BURNER RIBBED PLATE

921685

921685

921685

DOUBLE BURNER SMOOTH PLATE

921684

921684

921684

DRAUGHT DIVERTER WITH 120 MM DIAMETER



206126



ELECTRIC HEATING KIT FOR CUPBOARDS

206259





FLANGED FEET KIT

206136

206136

206136

FLUE CONDENSER



206246



FRONT.KICK.STRIP F.CONCRETE INST.1000 MM

206150

206150

206150

FRONT.KICK.STRIP F.CONCRETE INST.1200 MM

206151

206151

206151

FRONT.KICK.STRIP F.CONCRETE INST.1600 MM

206152

206152

206152

FRONT.KICK.STRIP F.CONCRETE INST.200 MM

206146

206146

206146

FRONT.KICK.STRIP F.CONCRETE INST.400 MM

206147

206147

206147

FRONT.KICK.STRIP F.CONCRETE INST.800 MM

206148

206148

206148

FRONTAL HANDRAIL 1200 MM

206191

206191

206191

FRONTAL HANDRAIL 1600 MM

206192

206192

206192

FRONTAL HANDRAIL 400 MM

206166

206166

206166

FRONTAL HANDRAIL 800 MM

206167

206167

206167

FRONTAL KICKING STRIP 1000 MM

206177

206177

206177

FRONTAL KICKING STRIP 1200 MM

206178

206178

206178

FRONTAL KICKING STRIP 1600 MM

206179

206179

206179

FRONTAL KICKING STRIP 200 MM

206174

206174

206174

FRONTAL KICKING STRIP 400 MM

206175

206175

206175

FRONTAL KICKING STRIP 800 MM

206176

206176

206176

LARGE HANDRAIL(PORTIONING SHELF)400 MM

206185

206185

206185

LARGE HANDRAIL(PORTIONING SHELF)800 MM

206186

206186

206186

LEFT SIDE DOOR FOR OPEN BASE CUPBOARD

206195





PAIR OF SIDE KICKING STRIPS

206249

206249

206249

PRESSURE REGULATOR FOR GAS UNITS

927225

927225



RIGHT AND LEFT SIDE HANDRAILS

206240

206240

206240

RIGHT SIDE DOOR FOR OPEN BASE CUPBOARD

206194





S/S GRID FOR DOUBLE BURNER-700 LINE

206297

206297

206297

SIDE WALL FOR CUPBOARD

206252





SINGLE BURNER RADIANT PLATE

206264

206264

206264

SINGLE BURNER RIBBED PLATE

206261

206261

206261

SINGLE BURNER SMOOTH PLATE

206260

206260

206260

WATER COLUMN EXTENSION FOR 700 LINE

206291

206291

206291

WATER COLUMN WITH SWIVEL ARM

206289

206289

206289

ZANUSSI

P R O F E S S I O N A L

www.zanussiprofessional.com

BABA2

2009-06-19

The Company reserves the right to alter technical specifications without prior notice.

Page 2
Image 2

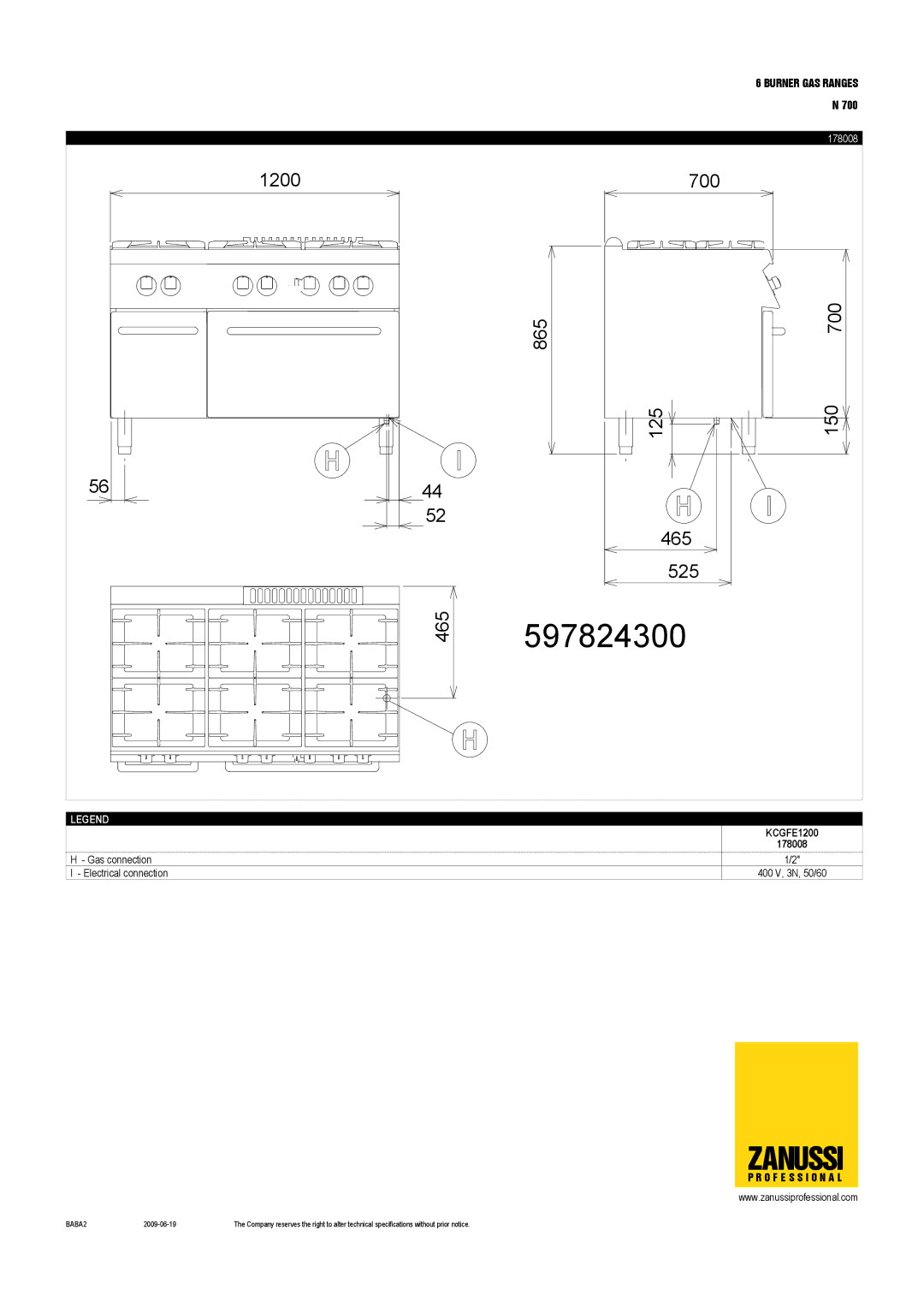

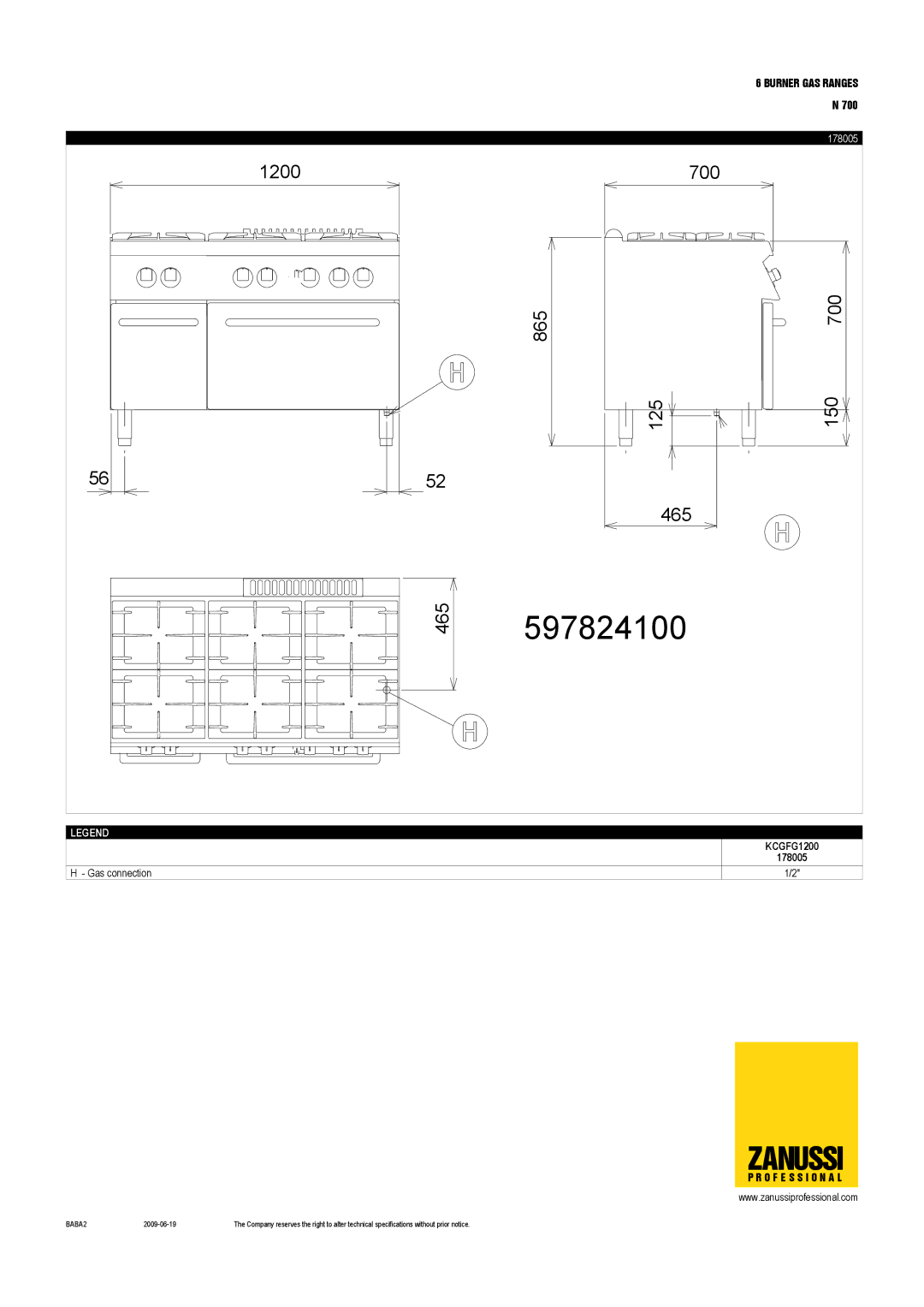

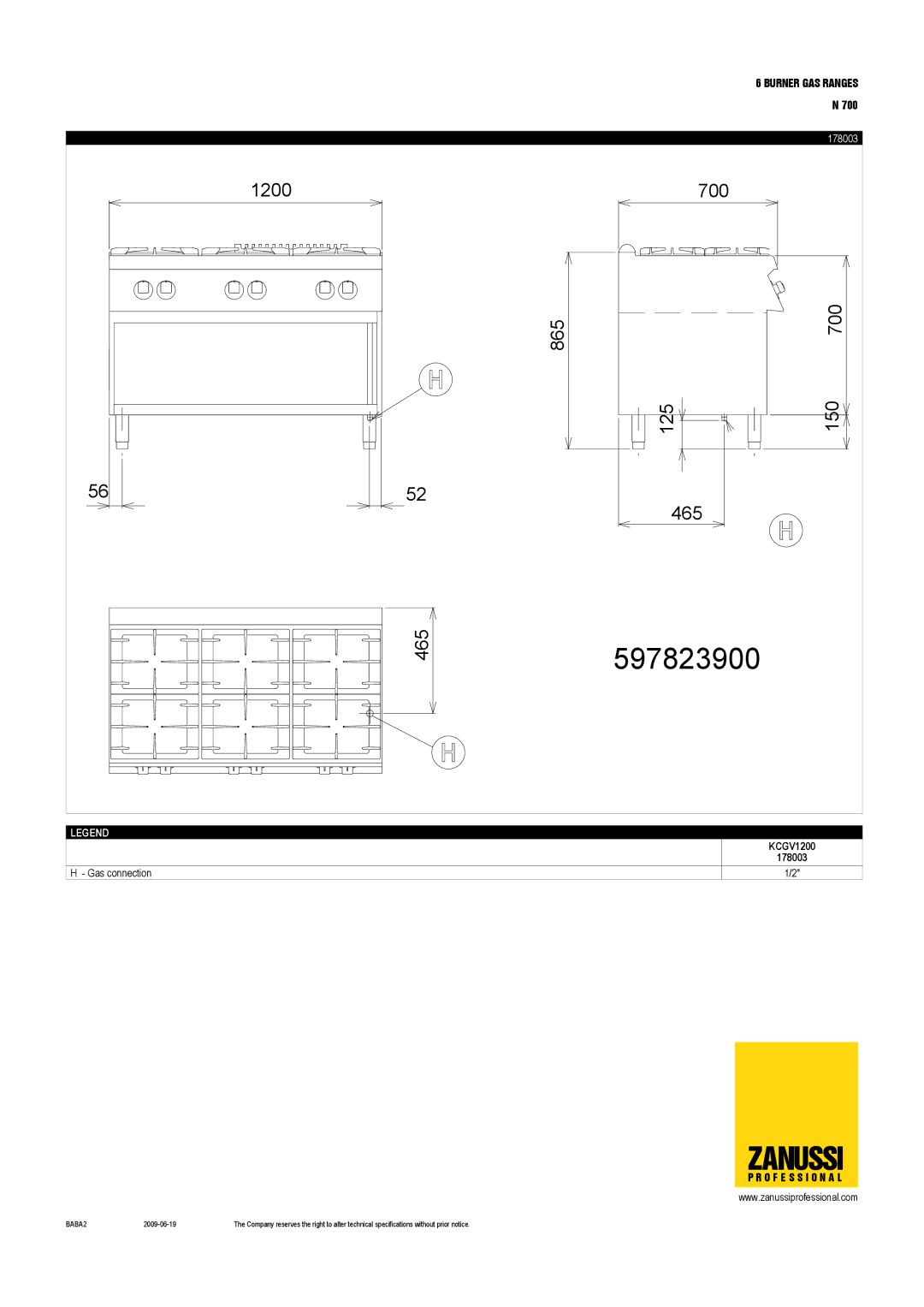

Zanussi KCGFE1200, KCGV1200, KCGFG1200, 178003, 178008, 178005 dimensions Zanussi

178005, 178008, 178003, KCGFE1200, KCGFG1200 specifications

Zanussi is a renowned brand in the home appliance industry, known for its innovative technologies and user-friendly designs. Among their impressive lineup, models such as the Zanussi 178008, KCGFE1200, 178005, KCGFG1200, and 178003 stand out for their combination of performance, style, and efficiency.

The Zanussi 178008 is a versatile built-in oven that offers several cooking functions, making it suitable for a variety of culinary tasks. With its fan-assisted heating technology, it ensures even cooking and reduces cooking times. This model also features a self-cleaning function that simplifies maintenance, eliminating the need for harsh chemicals.

The KCGFE1200 is a gas cooker that offers the precision of gas cooking combined with modern design. It provides multiple burner options, including a high-output burner for rapid cooking and an economical simmer burner for delicate dishes. Additionally, the eye-level grill allows for safe monitoring of food, ensuring that everything is cooked to perfection. Its easy-to-clean enamel interior makes mess management a breeze.

The Zanussi 178005 is another built-in oven model, known for its user-friendly interface and efficient cooking technologies. It comes equipped with a digital display and programmable timer, allowing for precise cooking plans. The oven's multi-level cooking capability enables the user to cook multiple dishes simultaneously, saving time and energy.

Meanwhile, the KCGFG1200 combines the flexibility of a gas cooking system with modern features like a glass lid for extra safety and convenience. This model features flame failure safety devices, providing peace of mind during cooking. With its robust construction and stylish finish, it becomes an attractive centerpiece in any kitchen.

Lastly, the Zanussi 178003 is an elegant built-in oven that showcases a sleek design and advanced cooking technologies. It features a steam cooking option, which helps retain nutrients and moisture in food. The model also includes a quick preheat function, ensuring that you can start cooking sooner without compromising on quality.

Each of these models combines functionality with aesthetic appeal, ensuring that they meet the demands of contemporary cooking while enhancing kitchen decor. With energy efficiency and user-friendly features, Zanussi continues to set the standard in home appliances, making cooking a delightful experience for everyone.
