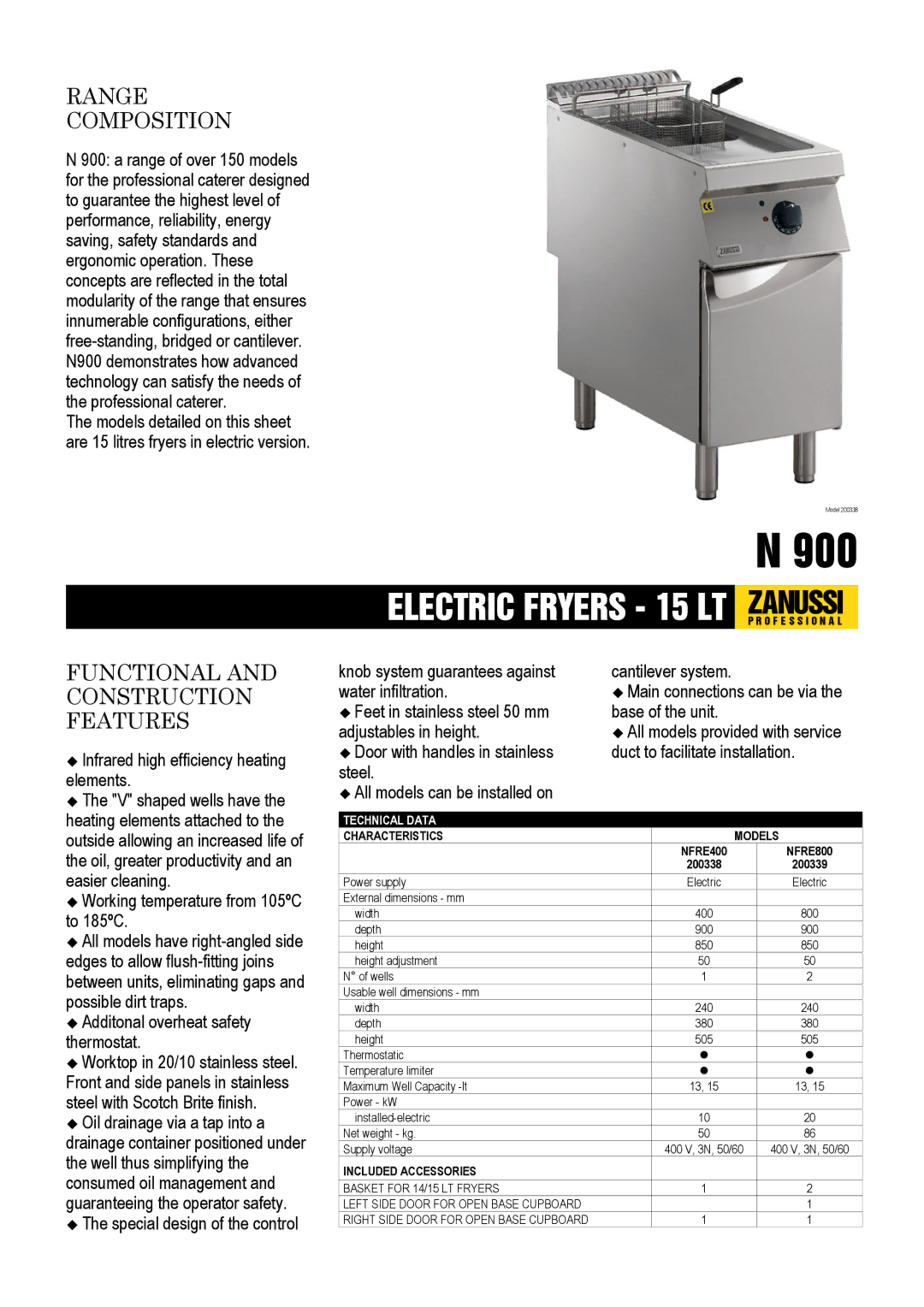

Zanussi NFRE800, NFRE400 dimensions Range Composition, Functional And Construction Features

RANGE

COMPOSITION

N 900: a range of over 150 models for the professional caterer designed to guarantee the highest level of performance, reliability, energy saving, safety standards and ergonomic operation. These concepts are reflected in the total modularity of the range that ensures innumerable configurations, either free-standing, bridged or cantilever. N900 demonstrates how advanced technology can satisfy the needs of the professional caterer.

The models detailed on this sheet are 15 litres fryers in electric version.

Model 200338

N 900

ELECTRIC FRYERS - 15 LT ZANUSSIP R O F E S S I O N A L

FUNCTIONAL AND CONSTRUCTION FEATURES

� Infrared high efficiency heating

elements.

� The "V" shaped wells have the

knob system guarantees against water infiltration.

�Feet in stainless steel 50 mm adjustables in height.

�Door with handles in stainless steel.

�All models can be installed on

cantilever system.

�Main connections can be via the base of the unit.

�All models provided with service duct to facilitate installation.

heating elements attached to the

outside allowing an increased life of

the oil, greater productivity and an

easier cleaning.

� Working temperature from 105ºC

to 185ºC.

� All models have right-angled side

edges to allow flush-fitting joins

between units, eliminating gaps and

possible dirt traps.

� Additonal overheat safety

thermostat.

� Worktop in 20/10 stainless steel.

Front and side panels in stainless

steel with Scotch Brite finish.

� Oil drainage via a tap into a

drainage container positioned under

the well thus simplifying the

consumed oil management and

guaranteeing the operator safety.

� The special design of the control

TECHNICAL DATA
CHARACTERISTICS		MODELS
	NFRE400		NFRE800
	200338		200339
Power supply	Electric		Electric

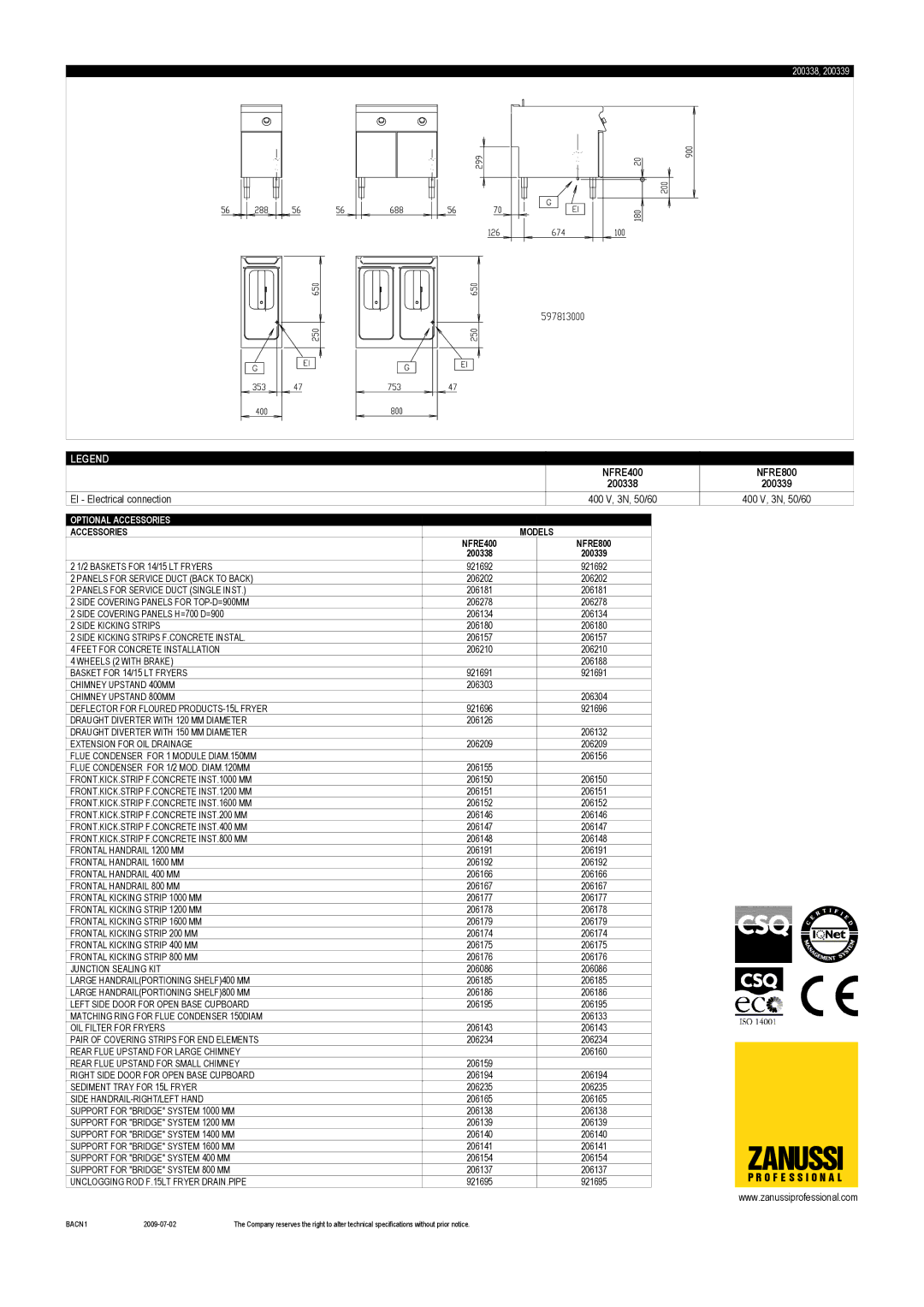

External dimensions - mm
width	400		800
depth	900		900
height	850		850
height adjustment	50		50
N° of wells	1		2
Usable well dimensions - mm
width	240		240
depth	380		380
height	505		505
Thermostatic	•		•
Temperature limiter	•		•
Maximum Well Capacity -lt	13, 15		13, 15
Power - kW
installed-electric	10		20
Net weight - kg.	50		86
Supply voltage	400 V, 3N, 50/60		400 V, 3N, 50/60
INCLUDED ACCESSORIES
BASKET FOR 14/15 LT FRYERS	1		2
LEFT SIDE DOOR FOR OPEN BASE CUPBOARD			1
RIGHT SIDE DOOR FOR OPEN BASE CUPBOARD	1		1
