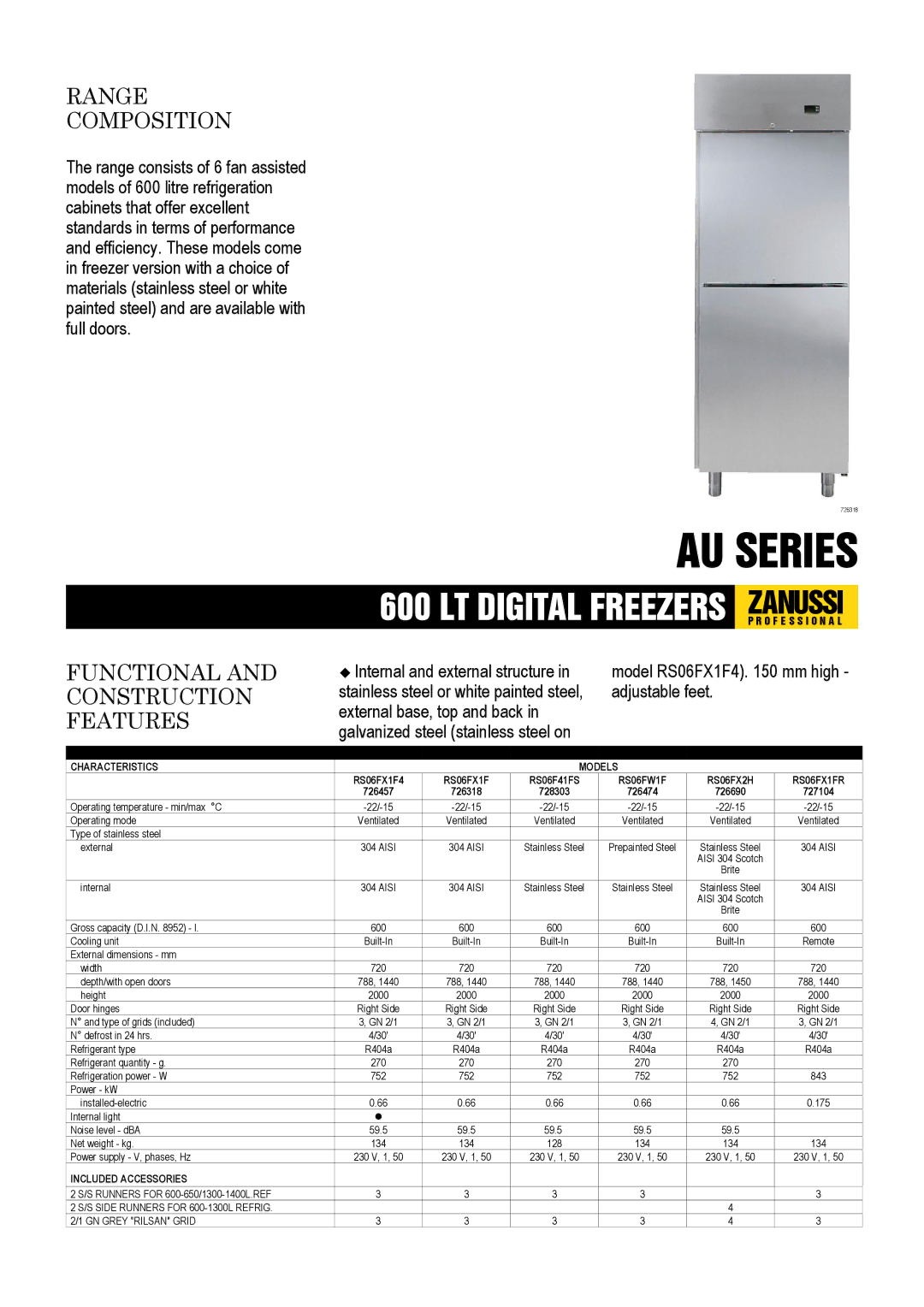

Zanussi RS06FX1FR dimensions Au Series, Range Composition, Functional And Construction Features

RANGE

COMPOSITION

The range consists of 6 fan assisted models of 600 litre refrigeration cabinets that offer excellent standards in terms of performance and efficiency. These models come in freezer version with a choice of materials (stainless steel or white painted steel) and are available with full doors.

726318

AU SERIES

600 LT DIGITAL FREEZERS ZANUSSIP R O F E S S I O N A L

FUNCTIONAL AND CONSTRUCTION FEATURES

� Internal and external structure in	model RS06FX1F4). 150 mm high -
stainless steel or white painted steel,	adjustable feet.
external base, top and back in
galvanized steel (stainless steel on

TECHNICAL DATA
CHARACTERISTICS			MODELS
	RS06FX1F4	RS06FX1F	RS06F41FS	RS06FW1F	RS06FX2H	RS06FX1FR
	726457	726318	728303	726474	726690	727104
Operating temperature - min/max °C	-22/-15	-22/-15	-22/-15	-22/-15	-22/-15	-22/-15
Operating mode	Ventilated	Ventilated	Ventilated	Ventilated	Ventilated	Ventilated
Type of stainless steel
external	304 AISI	304 AISI	Stainless Steel	Prepainted Steel	Stainless Steel	304 AISI
					AISI 304 Scotch
					Brite
internal	304 AISI	304 AISI	Stainless Steel	Stainless Steel	Stainless Steel	304 AISI
					AISI 304 Scotch
					Brite
Gross capacity (D.I.N. 8952) - l.	600	600	600	600	600	600
Cooling unit	Built-In	Built-In	Built-In	Built-In	Built-In	Remote
External dimensions - mm
width	720	720	720	720	720	720
depth/with open doors	788, 1440	788, 1440	788, 1440	788, 1440	788, 1450	788, 1440
height	2000	2000	2000	2000	2000	2000
Door hinges	Right Side	Right Side	Right Side	Right Side	Right Side	Right Side
N° and type of grids (included)	3, GN 2/1	3, GN 2/1	3, GN 2/1	3, GN 2/1	4, GN 2/1	3, GN 2/1
N° defrost in 24 hrs.	4/30'	4/30'	4/30'	4/30'	4/30'	4/30'
Refrigerant type	R404a	R404a	R404a	R404a	R404a	R404a
Refrigerant quantity - g.	270	270	270	270	270
Refrigeration power - W	752	752	752	752	752	843
Power - kW
installed-electric	0.66	0.66	0.66	0.66	0.66	0.175
Internal light	•
Noise level - dBA	59.5	59.5	59.5	59.5	59.5
Net weight - kg.	134	134	128	134	134	134
Power supply - V, phases, Hz	230 V, 1, 50	230 V, 1, 50	230 V, 1, 50	230 V, 1, 50	230 V, 1, 50	230 V, 1, 50
INCLUDED ACCESSORIES
2 S/S RUNNERS FOR 600-650/1300-1400L.REF	3	3	3	3		3
2 S/S SIDE RUNNERS FOR 600-1300L REFRIG.					4
2/1 GN GREY "RILSAN" GRID	3	3	3	3	4	3
