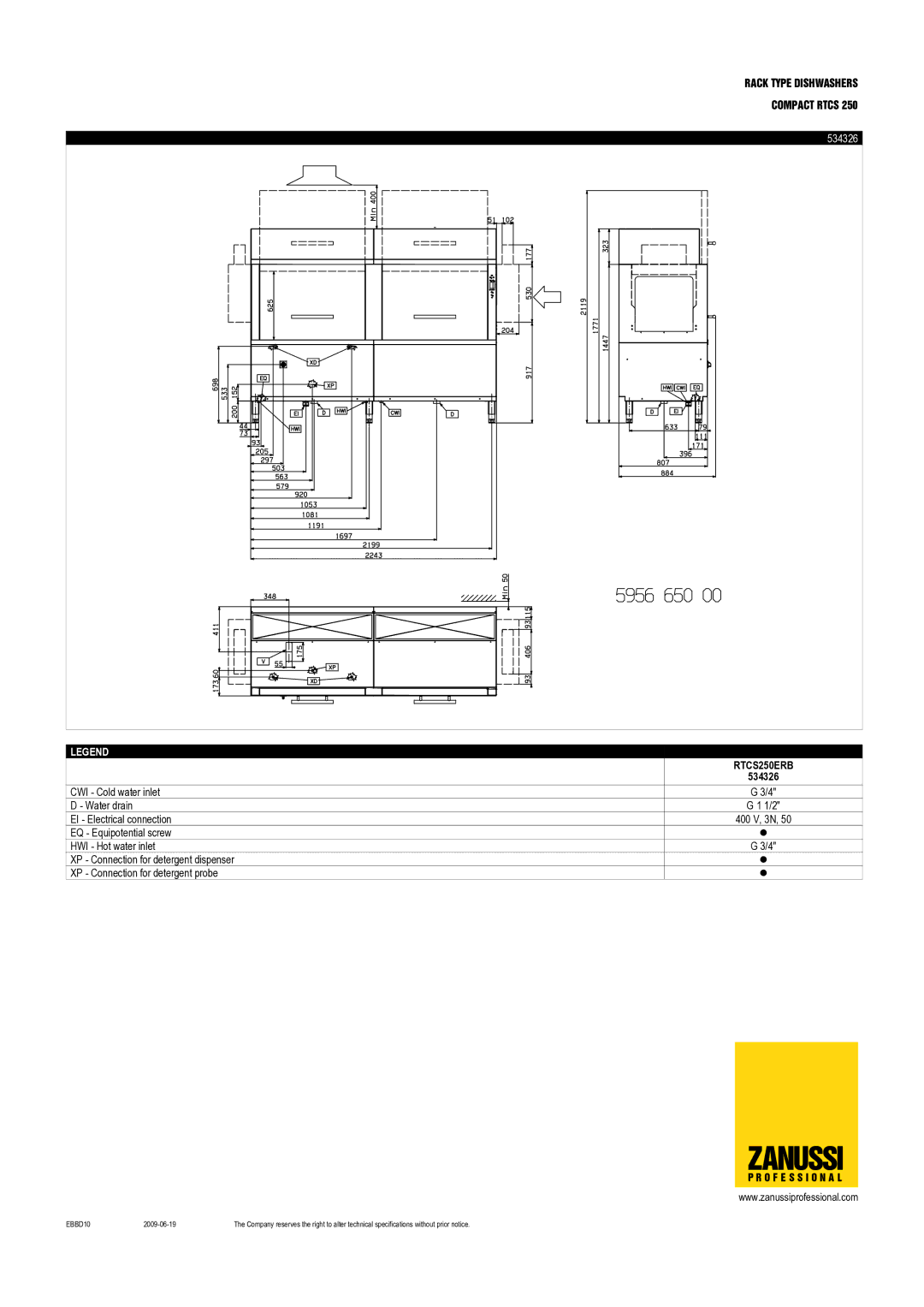

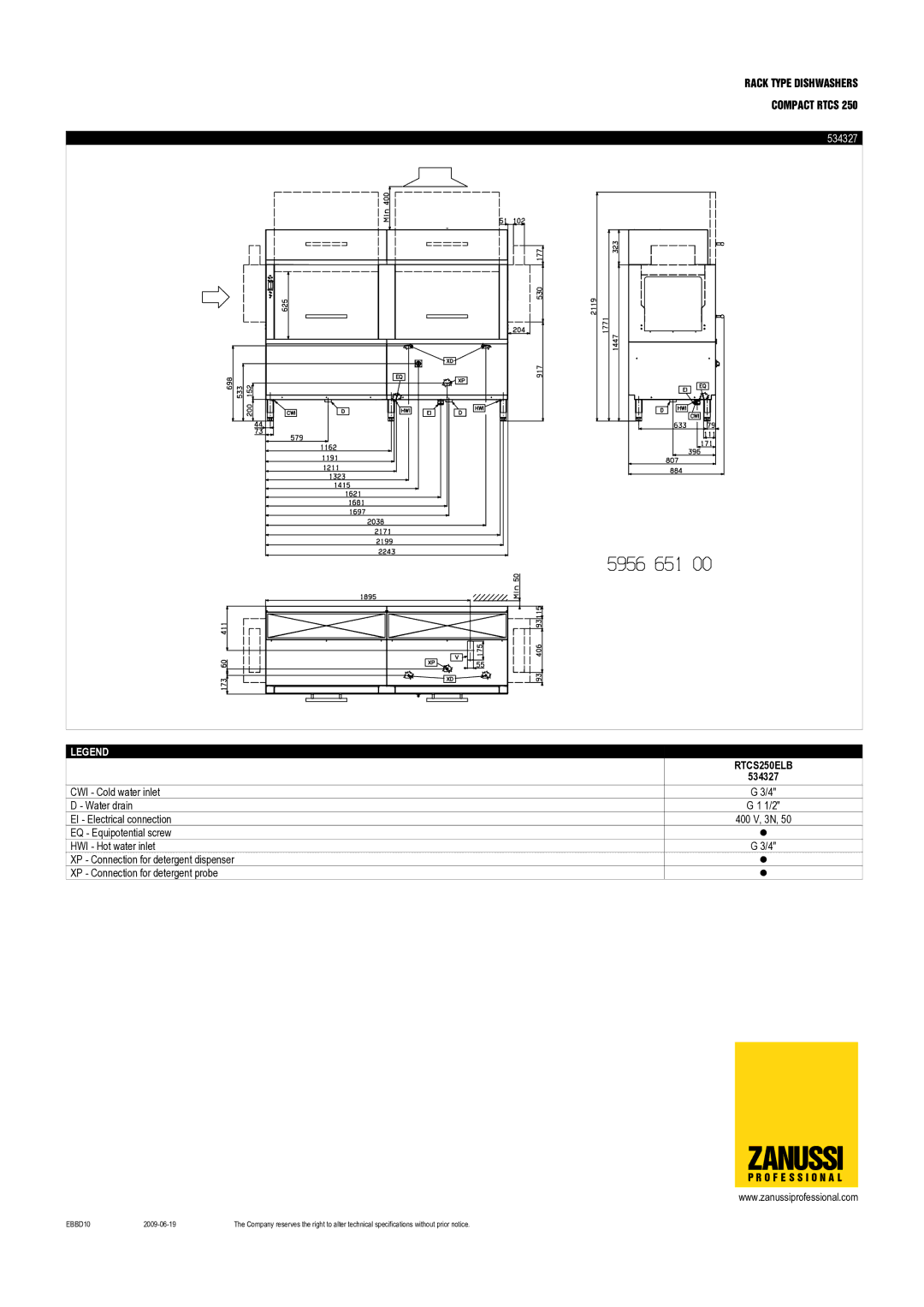

Zanussi RTCS250ERA, RTCS250ERB, RTCS250ELB, RTCS250ELA, 534326, 534325, 534324 dimensions Compact Rtcs

RANGE

COMPOSITION

The Zanussi Dishwashing range is produced for customers with the highest conceivable demands for good efficiency, economy and ergonomics for dishwashing operation. The product range comprises glasswashers, undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot and pan washers. The rack type dishwasher range is designed to be easily connected with the equipment included in the Zanussi Handling System range, to create a functional and ergonomic dishwashing area. The rack type dishwasher RTCS250 has a capacity up to 250 racks per hour with 2 speeds, variable on installation. The range consists of 4 electrically heated models (steam on request), available with or without Energy Saving Device (ESD).

534326

COMPACT RTCS 250

RACK TYPE DISHWASHERS ZANUSSIP R O F E S S I O N A L

FUNCTIONAL AND CONSTRUCTION FEATURES

�Solid 3mm square stainless steel

sub-frame with bolt-together construction that can be delivered assembled or in modules to

be connected on site.

�All rear positioned water tubes in stainless steel.

�Only one cable for electrical connection.

�Service from the front and from the side.

�Pre-arrangements for automatic detergent dispenser, energy management device and HACCP implementation (both basic as well as integrated system).

TECHNICAL DATA
CHARACTERISTICS			MODELS
	RTCS250ERA	RTCS250ELA		RTCS250ERB	RTCS250ELB
	534324	534325		534326	534327
Model	Electronic - A	Electronic - A		Electronic - B	Electronic - B
Power supply	Electric	Electric		Electric	Electric
Feeding direction	from RH to LH	from LH to RH		from RH to LH	from LH to RH
Energy Saving Device incl. cond. unit	•	•
Water supply
pressure min. , max. - bar	3, 7	3, 7		3, 7	3, 7
hot water inlet °C	50	50		50	50
cold water inlet °C	15	15		15	15
N° of speeds	2	2		2	2
Capacity dishes/h 1st/2nd speed	4500, 3240	4500, 3240		4500, 3240	4500, 3240
Capacity baskets/h 1st/2nd speed	250, 180	250, 180		250, 180	250, 180
Air emission - m³/h	180	180
Insulation	•	•		•	•
External dimensions - mm
width	2243	2243		2243	2243
depth	884	884		884	884
height/with open door	1771, 2119	1771, 2119		1771, 2119	1771, 2119
Pre-wash
temperature - °C	<35	<35		<35	<35
tank capacity - lt.	100	100		100	100
pump power - kW	1.0	1.0		1.0	1.0
1st wash
temperature - °C	55-65	55-65		55-65	55-65
tank capacity - lt.	100	100		100	100
pump power - kW	1.5	1.5		1.5	1.5
Rinsing
temperature - °C	80-90	80-90		80-90	80-90
boiler capacity - lt.	12	12		12	12
boiler power - kW	16.5	16.5		16.5	16.5
water flow - liters/hr	300	300		300	300
Total installed power - kW	31	31		30.9	30.9
Net weight - kg.	859	859		817	817
