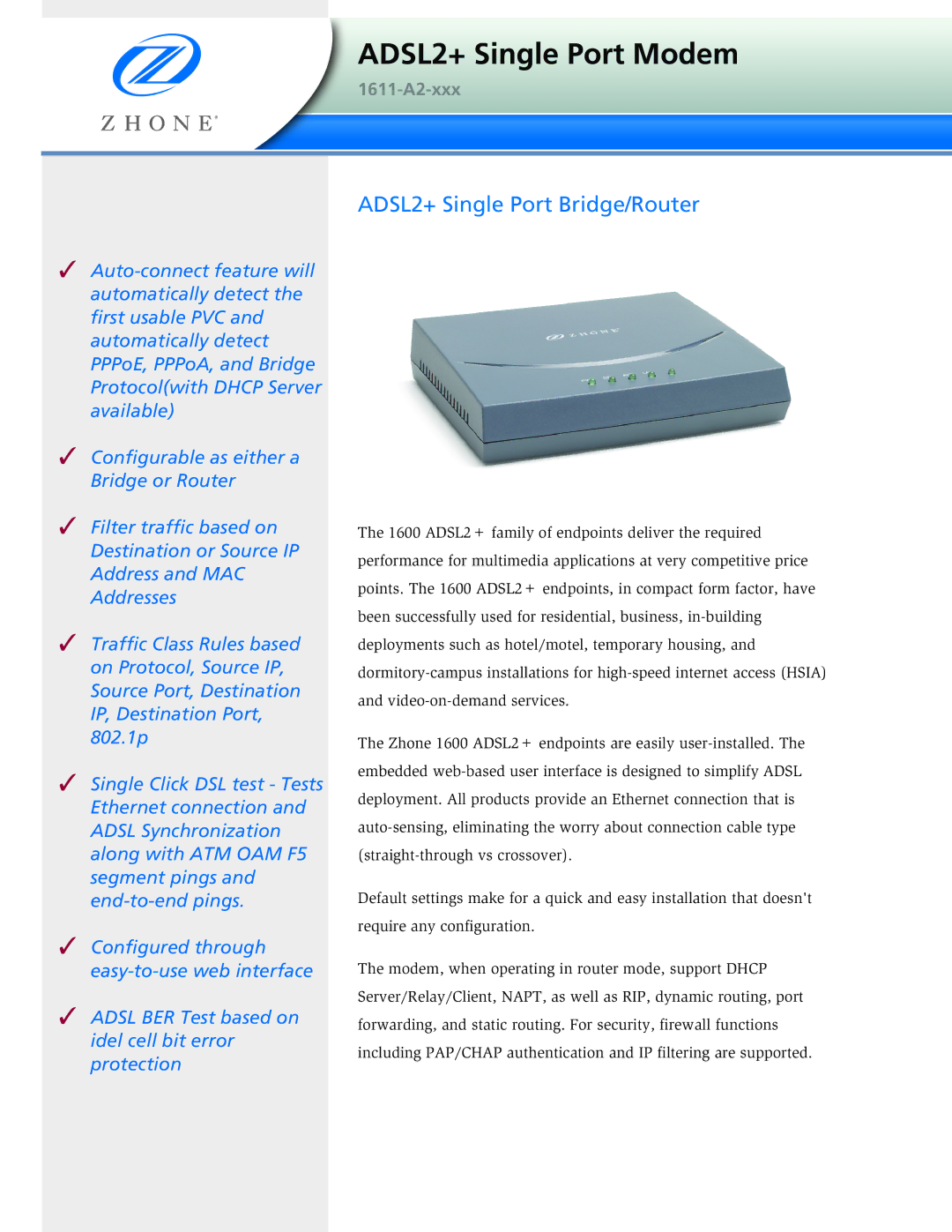

Zhone Technologies 1611-A2-xxx manual ADSL2+ Single Port Modem, ADSL2+ Single Port Bridge/Router

✓Auto-connect feature will automatically detect the first usable PVC and automatically detect PPPoE, PPPoA, and Bridge Protocol(with DHCP Server available)

✓Configurable as either a Bridge or Router

✓Filter traffic based on Destination or Source IP Address and MAC Addresses

✓Traffic Class Rules based on Protocol, Source IP, Source Port, Destination IP, Destination Port, 802.1p

✓Single Click DSL test - Tests Ethernet connection and ADSL Synchronization along with ATM OAM F5 segment pings and end-to-end pings.

✓Configured through easy-to-use web interface

✓ADSL BER Test based on idel cell bit error protection

ADSL2+ Single Port Modem

1611-A2-xxx

ADSL2+ Single Port Bridge/Router

The 1600 ADSL2+ family of endpoints deliver the required performance for multimedia applications at very competitive price points. The 1600 ADSL2+ endpoints, in compact form factor, have been successfully used for residential, business, in-building deployments such as hotel/motel, temporary housing, and dormitory-campus installations for high-speed internet access (HSIA) and video-on-demand services.

The Zhone 1600 ADSL2+ endpoints are easily user-installed. The embedded web-based user interface is designed to simplify ADSL deployment. All products provide an Ethernet connection that is auto-sensing, eliminating the worry about connection cable type (straight-through vs crossover).

Default settings make for a quick and easy installation that doesn't require any configuration.

The modem, when operating in router mode, support DHCP Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port forwarding, and static routing. For security, firewall functions including PAP/CHAP authentication and IP filtering are supported.
