Zhone Technologies 4929-A1-530 Technical Specifications, Ordering Information, Dimensions, Weight

Technical Specifications

Dimensions

■Height 1U

■Width : 430 mm (excluding the mounting wings)

■Depth : 241mm (excluding the room for cabling)

Weight

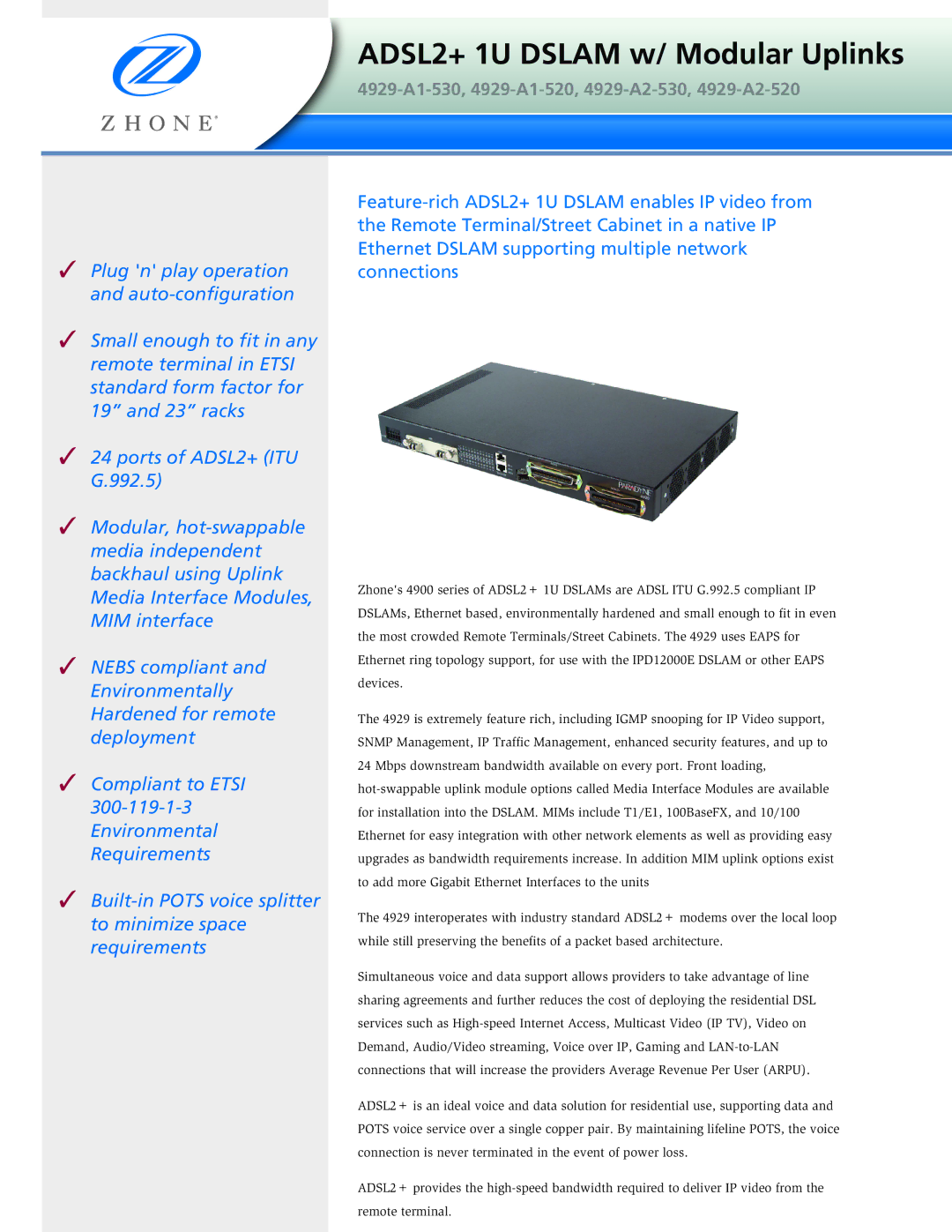

ADSL2+ 1U DSLAM w/ Modular Uplinks

Standards Support	Bandwidth/Distance
■ IEEE 802.3	■ Bandwidth: Maximum within ITU ADSL2+
■ IEEE 802.1p CoS	standard
■ IEEE 802.1Q VLAN	■ Distance: up to 18,000 feet/7,500m (lower
■ IGMP Snooping - supports IGMPv 1 and IGMPv2	speeds will be achieved at greater distances)

■2.5 lbs. (1.1 kg)

Power

■DC: Dual -48 Volt DC terminal blocks

■Consumption: < 1.5 Amps

■AC: Requires separate AC power supply (sold separately)

Interfaces

■Access ports

■24 ADSL2+ ports using RJ-21 connector (Annex A)

■24 Splitter ports using RJ-21 connector (Annex A)

■Uplink ports

■1 10/100/1000BT or fiber based (SFP) GigE port for management or uplink

■1 RS232 Console port for RS-232 serial management connection

■1 Media Interface Module (MIM) slot:

-2 x Gigabit Ethernet (MIM-2000F)

-2 x T1 (MIM-2T1)

-2 x E1 (MIM-2E1)

-4 x E1 (MIM-4E1)

-4 x T1 (MIM-4T1)

-10/100 Ethernet (MIM-10/100)

Protocol Support

■MTM Traffic Management - Configurable Priority scheme 802.1p, DiffServ, IP address range, Rate Limiting, Security

■IGMP snooping

■Enterprise MIBs “Chassis and Module Identification, Configuration, IP Traffic Management"

■IETF RFC1213 “Network Management of TCP/IP-based internets: MIB-II”

■IETF RFC3440: “Definitions of Extension Managed Objects for ADSL Lines”

■ITU-G.997.1: “Physical Layer Management for DSL Transceivers”

■ADSL Forum Technical Report TR-024: “DMT Line Code Specific MIB”

■Flash Upgradeable

Regulatory Compliance

■NEBS: GR-63-CORE, GR-1089-CORE

■EMC: FCC Part 15; ICES-003; EN 300 386-2; CE Marking

■Safety: UL1950, CSA C22.2 No. 950, EN60950, IEC950, CE Marking

Operating Requirements

■Complies to ETSI 300-019-1-3 Environmental Requirements

■Climatic conditions Classes 3.1 to 3.3

■Temperature: -40ºF to 149ºF (-40ºC to 65ºC)

■Non-operating temperature: -40ºF to 158ºF (-40ºC to 70¼C)

■Humidity: 5% to 95%, non-condensing

■Altitude: -200ft to 16,600ft (-60m to 5,000m)

Ordering Information

4929-A1-520	ADSL2+ Annex A unit with no integrated splitter
4929-A1-530	ADSL2+ Annex A unit with integrated Annex A 900 ohm splitter
EPC-AC-2.5A-US	Optional AC Power Supply, 2.5A, US plug
EPC-AC-2.5A-UK	Optional AC Power Supply, 2.5A, UK plug
EPC-AC-2.5A-EU	Optional AC Power Supply, 2.5A, EU plug
