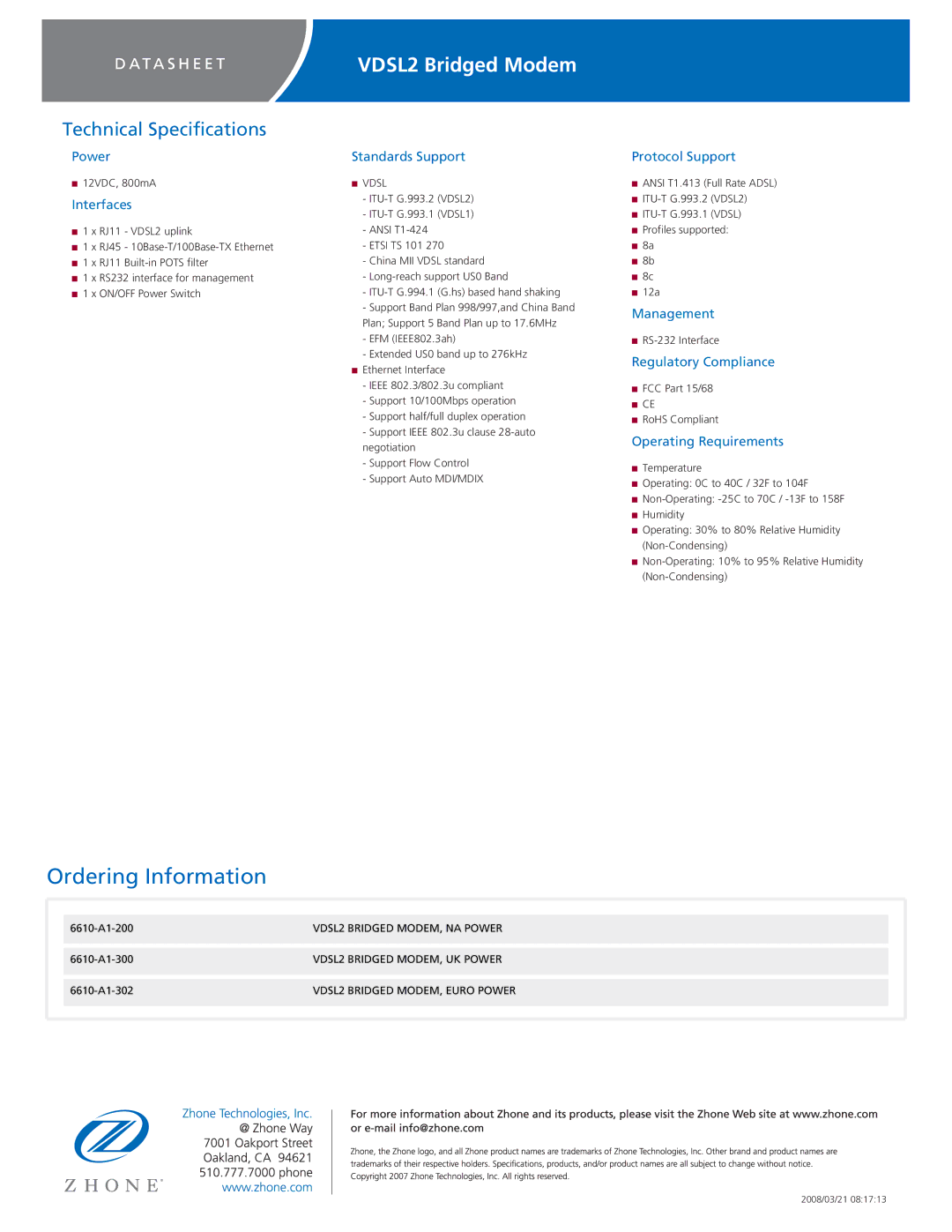

Technical Specifications

Power

■12VDC, 800mA

Interfaces

■1 x RJ11 - VDSL2 uplink

■1 x RJ45 - 10Base-T/100Base-TX Ethernet

■1 x RJ11 Built-in POTS filter

■1 x RS232 interface for management

■1 x ON/OFF Power Switch

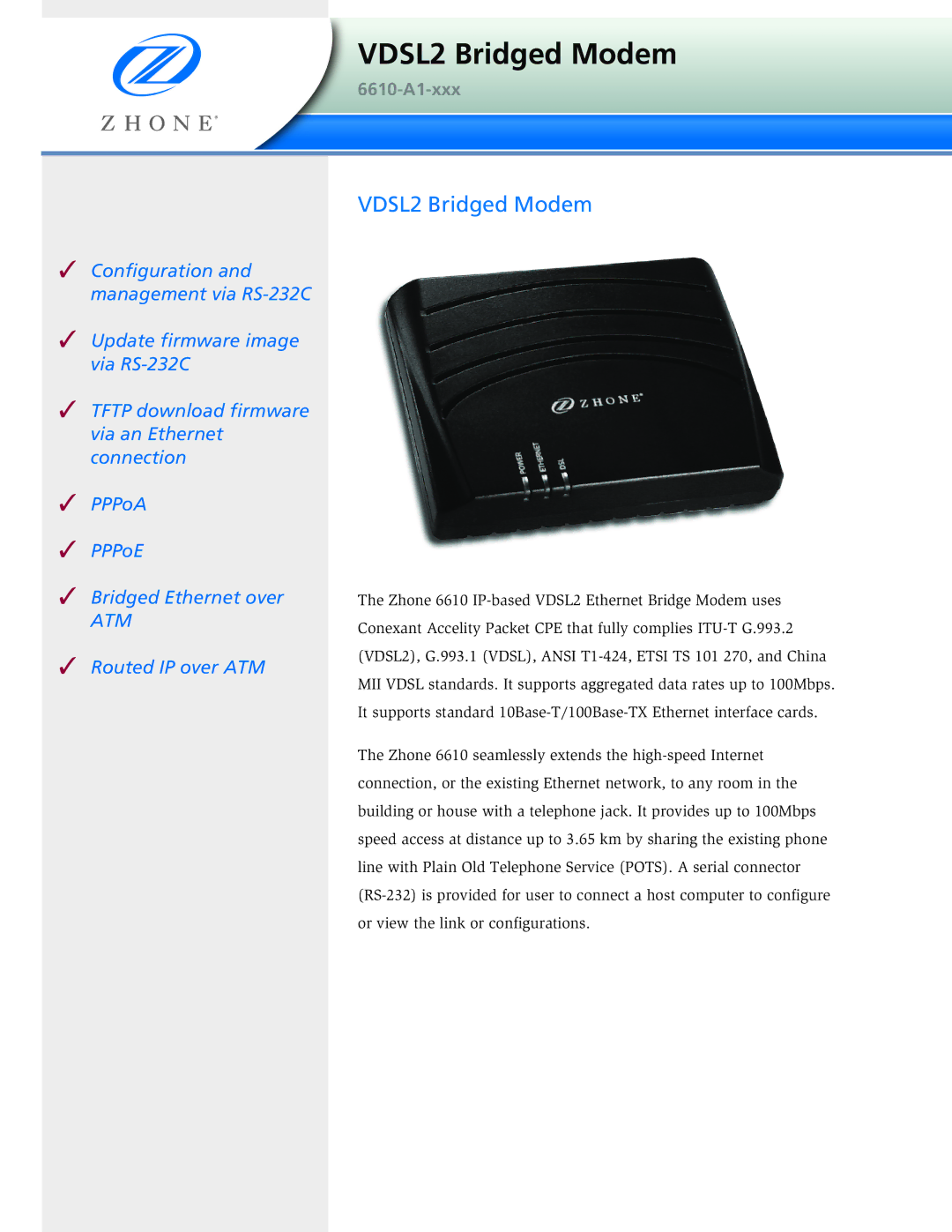

VDSL2 Bridged Modem

Standards Support

■VDSL

-ITU-T G.993.2 (VDSL2)

-ITU-T G.993.1 (VDSL1)

-ANSI T1-424

-ETSI TS 101 270

-China MII VDSL standard

-Long-reach support US0 Band

-ITU-T G.994.1 (G.hs) based hand shaking

-Support Band Plan 998/997,and China Band Plan; Support 5 Band Plan up to 17.6MHz

-EFM (IEEE802.3ah)

-Extended US0 band up to 276kHz

■Ethernet Interface

-IEEE 802.3/802.3u compliant

-Support 10/100Mbps operation

-Support half/full duplex operation

-Support IEEE 802.3u clause 28-auto negotiation

-Support Flow Control

-Support Auto MDI/MDIX

Protocol Support

■ANSI T1.413 (Full Rate ADSL)

■ITU-T G.993.2 (VDSL2)

■ITU-T G.993.1 (VDSL)

■Profiles supported:

■8a

■8b

■8c

■12a

Management

■RS-232 Interface

Regulatory Compliance

■FCC Part 15/68

■CE

■RoHS Compliant

Operating Requirements

■Temperature

■Operating: 0C to 40C / 32F to 104F

■Non-Operating: -25C to 70C / -13F to 158F

■Humidity

■Operating: 30% to 80% Relative Humidity (Non-Condensing)

■Non-Operating: 10% to 95% Relative Humidity (Non-Condensing)

Ordering Information

6610-A1-200	VDSL2 BRIDGED MODEM, NA POWER
6610-A1-300	VDSL2 BRIDGED MODEM, UK POWER
6610-A1-302	VDSL2 BRIDGED MODEM, EURO POWER

2008/03/21 08:17:13
