Poulan 271150 manual Decals, Wheels and Tires

Page 41

TRACTOR -- MODEL NUMBER 271150

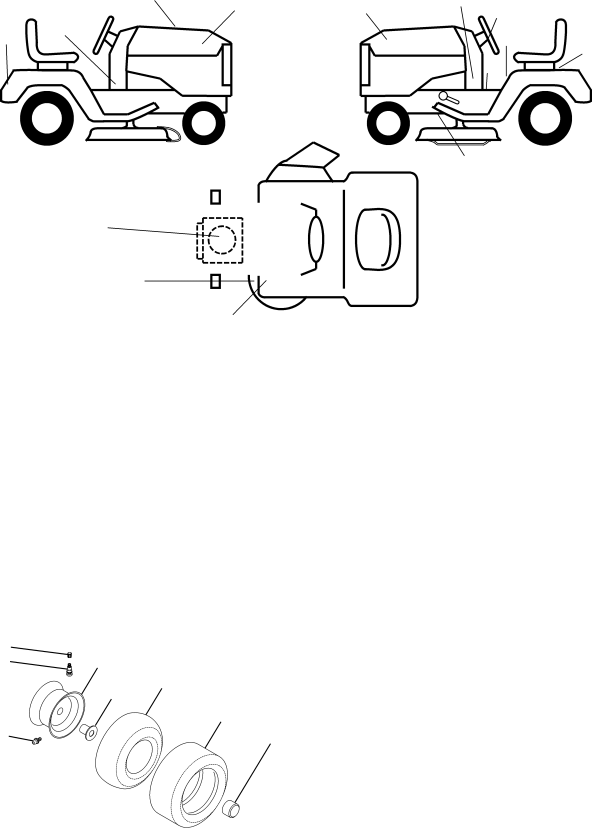

DECALS



6



1



3

3



7

4

1



11







5







8





2



















13



















































































































































15



















































































































































12





































KEY PART











KEY PART



NO.

NO.

DESCRIPTION

NO.

NO.

DESCRIPTION

1

177109

Decal Lower Dash

11

156439

Decal Fender Dnger

2

176394

Decal Engine

12

181249

Decal, Clutch/Brake Eng

3

171828

Decal Hood

13

146046

Decal V-Belt Dr Sch tractor

4

171829

Decal Fender

15

136832

Decal V-Belt sch

5

145005

Decal Battery Danger

- -

138311

Decal Handle Lft Height

6

186216

Decal Replacement











Adjust (Lift Handle)

7

171830

Decal Steering

- -

185514

Owner’s Manual, English

8

156867

Decal, Oper sdl P/L Gear

- -

185515

Owner’s Manual, Spanish

WHEELS AND TIRES



KEY

PART









NO.

NO.

DESCRIPTION







1

59192

Cap Valve Tire

1





2

65139

Stem Valve

2

5,8



3

106222X

Tire F Ts 15 X 6 0 - 6 Service



4

59904

Tube Front (Service Item Only)









4,10



5

106732X624

Rim Asm 6"front Service



7



6

278H

Fitting Grease (Front Wheel Only)





3,9

7

9040H

Bearing Flange (front Wheel









Only)

6



11

8

106108X624

Rim Asm 8"rear Service



9

124635X

Tire Rear













10

7152J

Tube Rear (Service Item Only)







11

104757X428

Cap Axle Blk 1 50 X 1 00







- -

144334

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S. inches 1 inch = 25.4 mm

41
