Snapper YZ145332BVE, YZ145382BVE Mower Blade Replacement 4.4.3. Blade Replacement

Page 21

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT. Avoid serious burns, allow all parts to cool before working on machine. Fuel Filler Cap and Vent must be closed securely to prevent fuel spillage. DO NOT attempt to service or charge the battery while it is installed on the YARD CRUISER. Shield the positive terminal with terminal cover located on battery harness. This prevents metal from touching the positive terminal, which could cause sparks. Cables must be connected to battery terminals in the proper position as shown in Figure 4.17.

4.4 MOWER BLADE REPLACEMENT 4.4.3. BLADE REPLACEMENT

1.Remove blade(s). See Figure 4.17. Replace blade(s) if it shows signs of excessive wear or damage. See chart below for replacement

BLADE REPLACEMENT CHART

33”

Blade

1-9523

38”

Blades

2-4466 (Requires Two)

4.5BATTERY

4.5.1. BATTERY REMOVAL

1.Tilt seat up to gain access to battery.

2.Observe and note cable positions on battery. See Figure 4.18.

3.Disconnect cables from battery terminals, disconnecting BLACK (Negative) cable first. Disconnect RED (Positive) battery cable. Slide battery from battery cradle.

4.Retain mounting bolts and nuts for future use.

4.5.2.BATTERY INSTALLATION 1. Slide battery into battery cradle.

2. Connect cables to battery terminals. Connect RED (Positive) cable first. Connect BLACK (Negative) cable. See Figure 4.18.

3. Place the positive (+) terminal insulator over positive terminal and cable. See Figure 4.18.

4.5.3.BATTERY SERVICE

1.Remove battery. Refer to Section “BATTERY REMOVAL”.

2.Place battery in a well-ventilated area on a level surface.

3.Using distilled water, refill cells as required to cover cell plates of which can also be visualized through the plastic battery case.

4.With cell caps removed, connect battery charger to battery terminals. Red to positive (+) terminal and black to negative (-) terminal.

5.Slow charge battery at 1 amp for 10 hours.

6.If battery will not accept charge or is partially charged after 10 hours of charging at 1 amp, replace with new battery, Part Number 6-0753.

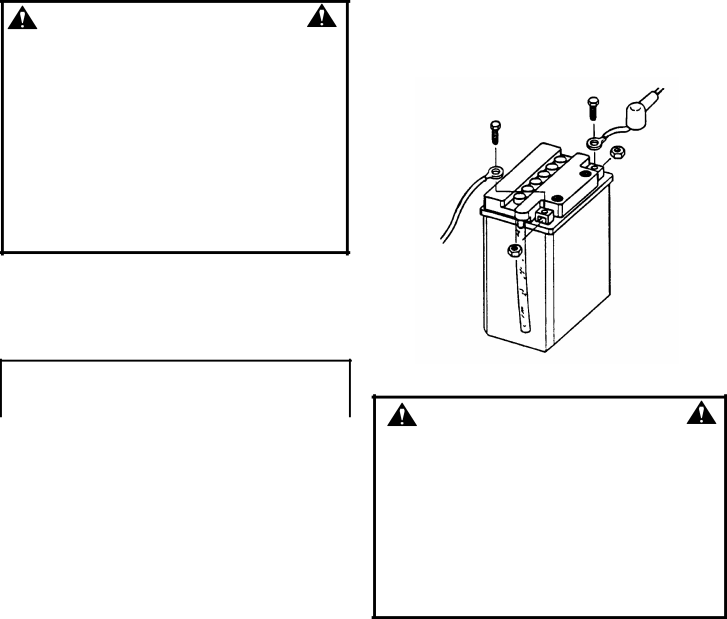

FIGURE 4.18

WARNING

The electrolyte (acid) produces a highly explosive gas. Keep all sparks, flame and fire away from area when charging battery or when handling electrolyte or battery. Electrolyte (acid) is a highly corrosive liquid. Wear eye protection. Wash affected areas immediately after having eye or skin contact with electrolyte (acid). Battery acid is corrosive. Rinse empty acid containers with water and mutilate before discarding. If acid is spilled on battery, bench, or clothing, etc., Flush with clear water and neutralize with baking soda. DO NOT attempt to charge battery while installed on the YARD CRUISER. DO NOT use “BOOST” chargers on the battery.

4.5.4. BATTERY STORAGE

If YARD CRUISER is to be stored out of season on its rear bumper, it is recommended the battery be removed, charged and stored.

1.Remove battery. (Refer to Section “BATTERY REMOVAL”).

2.Perform battery service.

3.Bring battery to full charge, if required.

4.Store battery in an area away from the YARD CRUISER on a wood surface. DO NOT STORE BATTERY ON A CONCRETE SURFACE.
