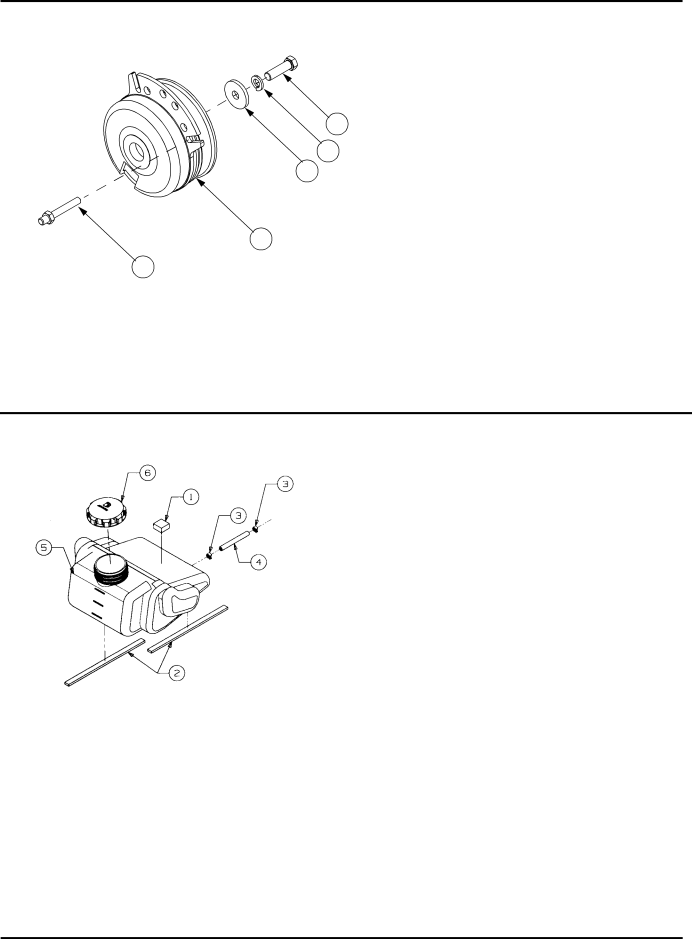

PTO CLUTCH

1

3

5

4

2









REF.

PART













NO.

NUMBER

DESCRIPTION

QTY.



1

710-0757

Screw, Hex Cap, 7/16-20 x 1.5 GR5

1



2

711-0640

Stud, Clutch Stop

1



3

736-0171

Washer, Lock, 3/8

1



4

717-3403

Clutch Assy, PTO

1



5

736-3082A

Washer, Flat, .445 x 1.5 x 1.72 Hdn

1











FUEL TANK

TO FUEL

FILTER

REF.

PART





NO.

NUMBER

DESCRIPTION

QTY.

1

722-3020

Foam, 1.25 Sq x .62 Thk

AR

2

722-3022

Tape, Foam, .625 Wide x .25 Thk

AR

3

726-0205

Clamp, Hose

2

4

759-3330

Line,Fuel, 72” (Shipped In 10ft Length)

1

5

751-3112

Tank, Fuel

1

6

751-3124B

Cap, Fuel

1

723-3066

Insulator, Foam Fuel LIne

1









Not Shown
