Cub Cadet 2146 manual Gearcase

Page 25

-23-

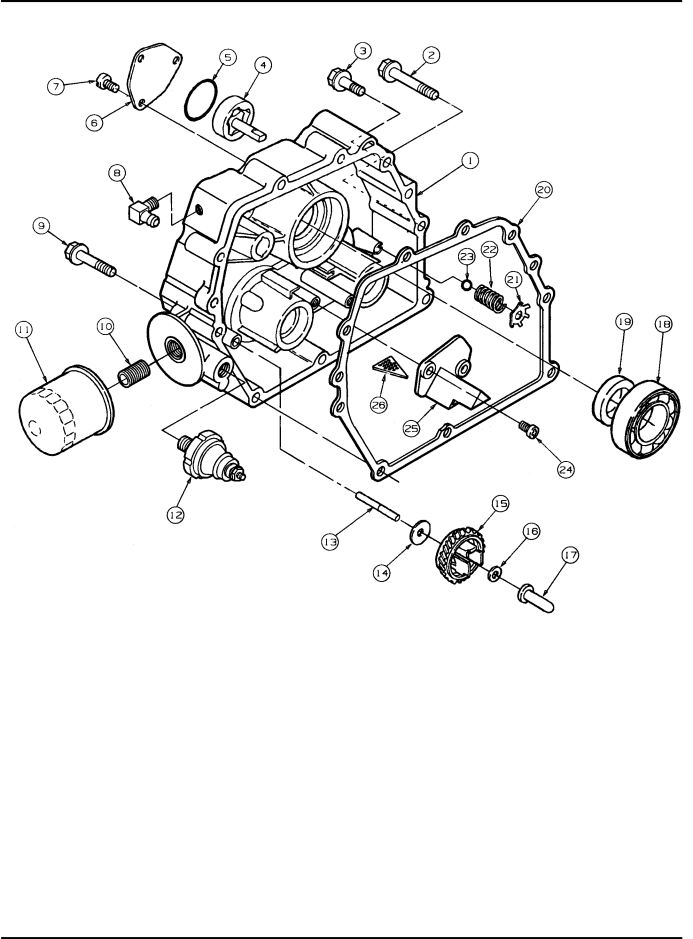

GEARCASE

REF.

PART





NO.

NUMBER

DESCRIPTION

QTY.

1

ME-103-0825-03 Gearcase

1

2

ME-815-0829-03 Screw, Hex Hd, TT, M8x1.25x 70

1

3

ME-815-0829-01 Screw, Hex Hd, TT, M8x1.25x 35

1

4

ME-120-1313

Oil Pump

1

5

ME-509-0253

O-Ring

1

6

ME-120-1299-02

Cover, Oil Pump

1

7

ME-823-0003-05 Screw, Torx Pan Hd, M6 x 1 x 14

3

8

ME-502-0313

Elbow, 90° Hose

1

9

ME-815-0829-02 Screw, Hex Hd TT, M8 x 1.25x 50

7

10

ME-122-0737-02

Filter, Oil

1

11

ME-122-0475

Adapter, Oil Filter

1

12

ME-309-0615

Switch, Oil Pressure

1

13

ME-775-0069

Shaft, Governor

1

REF.

PART





NO.

NUMBER

DESCRIPTION

QTY.

14

ME-526-2078

Washer, Flat, Special

1

15

ME-150-2272

Gear, Gov(Incl Shafts & Weights)

1

16

ME-150-2547

Retainer, Governor Gear

1

17

ME-150-2754

Sleeve, Governor

1

18

ME-510-0160

Bearing, Crankshaft

1

19

ME-509-0258

Seal, Crankshaft Oil

1

20

ME-110-3833

Gasket, Gearcase

1

21

ME-518-0560

Ring, Retaining

1

22

ME-120-0140

Spring, Relief Valve

1

23

ME-510-0195

Ball, Steel, 7.5mm OD

1

24

ME-823-0003-02 Screw, Torx Pan Hd, M6 x 1 x 14

2

25

ME-120-1295

Tube, Oil Pickup

1

26

ME-120-1298

Screen, Oil Pickup

1
