Troy-Bilt E666M Wheel Gear Lever, Forward Clutch Control, To Operatethe ForwardClutchControl

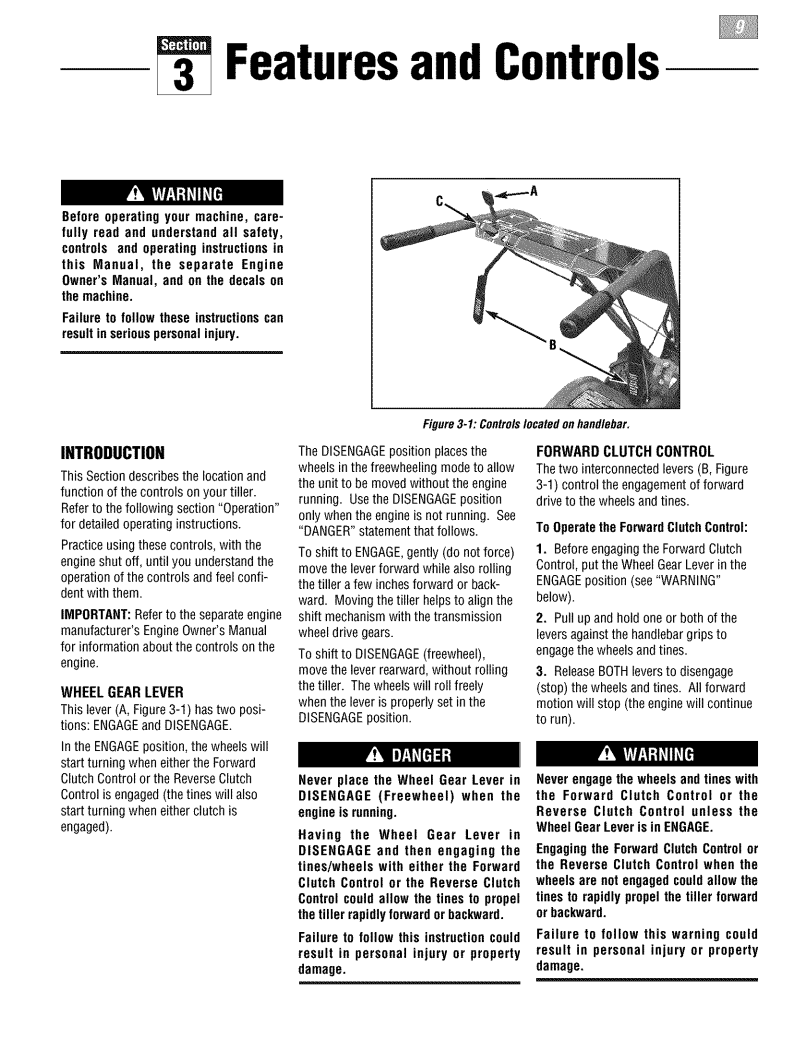

Page 9

FeaturesandControls

Before operating your machine, care- fully read and understand all safety, controls and operating instructions in this Manual, the separate Engine Owner'sManual, and on the decals on the machine.

Failure to follow these instructionscan

result in serious personalinjury.

Figure3-1: Controlslocated on handlebar.

INTRODUCTION

This Sectiondescribes the location and function of the controls on your tiller. Referto the following section "Operation" for detailed operating instructions. Practice using thesecontrols, with the engine shut off, until you understandthe

operation of the controls and feel confi- dent with them.

IMPORTANT:Referto the separateengine manufacturer'sEngineOwner'sManual for information about the controls on the

engine.

WHEEL GEAR LEVER

This lever (A, Figure 3-1) has two posi- tions: ENGAGEand DISENGAGE.

In the ENGAGEposition, the wheelswill

start turning when either the Forward Clutch Control or the ReverseClutch

Control is engaged(the tines will also start turning when either clutch is engaged).

The DISENGAGEposition placesthe wheels in the freewheeling mode to allow the unit to be movedwithout the engine running. Usethe DISENGAGEposition only when the engine is not running. See "DANGER"statement that follows.

To shift to ENGAGE,gently (do not force) move the lever forward while also rolling the tiller afew inchesforward or back- ward. Moving the tiller helps to align the shift mechanismwith the transmission wheel drive gears.

To shift to DISENGAGE(freewheel), move the lever rearward, without rolling the tiller. The wheelswill roll freely when the lever is properly set in the DISENGAGEposition.

Never place the Wheel Gear Lever in DISENGAGE (Freewheel) when the

engine is running.

Having the Wheel Gear Lever in DISENGAGE and then engaging the tines/wheels with either the Forward Clutch Control or the Reverse Clutch

Control could allow the tines to propel the tiller rapidlyforward or backward.

Failure to follow this instruction could

result in personal injury or property damage.

FORWARD CLUTCH CONTROL

The two interconnected levers (B, Figure 3-1) control the engagementof forward drive to the wheelsand tines.

To Operatethe ForwardClutchControl:

1.Beforeengaging the Forward Clutch Control, put the Wheel GearLever in the ENGAGEposition (see "WARNING" below).

2.Pull up and hold one or both of the levers against the handlebargrips to engagethe wheels and tines.

3.ReleaseBOTHleversto disengage (stop) the wheels andtines. All forward motion will stop (the enginewill continue to run).

Never engage the wheels and tines with the Forward Clutch Control or the Reverse Clutch Control unless the Wheel Gear Lever is in ENGAGE.

Engagingthe Forward Clutch Control or the Reverse Clutch Control when the

wheels are not engaged could allow the tines to rapidly propel the tiller forward or backward.

Failure to follow this warning could result in personal injury or property damage.
