Poulan XT5524ES, 96192002201, 422080 owner manual Axle Shaft, Roll PIN 3/16, Sprocket, Clik PIN

Page 32

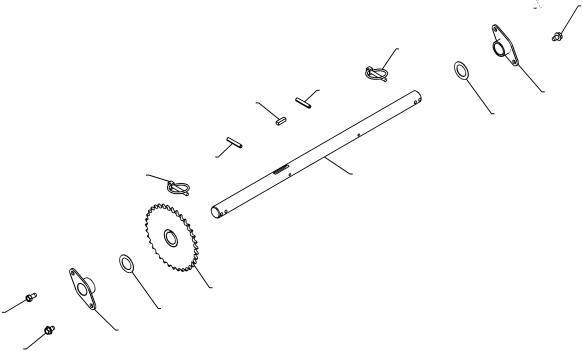

REPAIR PARTS SNOW THROWER - - MODEL NUMBER XT5524ES (96192002201)

DRIVE

6



7

1b

4

8

3



1b

1a

7









KEY

PART

DESCRIPTION









NO.

NO.







2

1

188226

(assy of 1a,1b) AXLE ASSEMBLY





3



5





1a

179352

AXLE SHAFT





4



1b

184206

ROLL PIN 3/16



6

01.03.005-A



2

402691

SPROCKET







3

174697

THRUST WASHER

















4

179830

BEARING









5

146315

SCREW 5/16−18 X .625









6

17490508

BOLT 5/16−18 X .500









7

155443

CLIK PIN









8

189282

SQUARE KEY

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

32

Image 32
Contents Model Number Snow ThrowerSafe Operation Practices for Walk-Behind Snow Throwers Table of Contents Assembly / PRE-OPERATION HOW to SET UP Your Snow ThrowerParts Packed Separately in Carton Remove Snow Thrower from CartonInstall Speed Control ROD See Figs Unfold Upper HandleCheck Tire Pressure Install Auger Control ROD See FigsInstall Discharge Chute / Chute Rotater Head See Fig Operation Know Your Snow ThrowerPrimer Ignition KEYMeets A.N.S.I. Safety Requirements Recoil auxiliary starter handle used for starting the engineHOW to USE Your Snow Thrower StoppingTo Move Forward and Backward See Fig Using the CLEAN-OUT Tool See FigTo Throw Snow See Fig Before Starting the Engine To Start EngineIf Recoil Starter has Frozen Snow Throwing TipsBefore Stopping Maintenance General RecommendationsBefore Each USE LubricationCleaning EngineService and Adjustments To Adjust Snow Thrower HeightChute Deflector Shear Bolts See FigTo Replace Belts See Fig Storage OtherTroubleshooting Service Notes Exploded KEY Part Description Auger Housing Scrapper BARAuger 24 LH Auger 24 RHAuger Bearing Bearing PlugChute Weldment Deflector WeldmentDeflector Seal StrapLEVER/CABLE Rotator Assembly Rotator HeadRotator Pivot Bracket Pulley Pivot405784X479 Pivot Support Weldment Panel Bracket LH Panel Bracket RHHandle Grip Spacer RetainerKnob RED Handle KnobImpeller ROD Assembly Traction ROD AssemblyShifter ROD TOP Shifter ROD BottomWire Harness Console PanelHeadlight Bezel Flood HeadlightRepair Parts Snow Thrower - Model Number XT5524ES Drive Speed Selector Assembly Drive Plate AssemblyShoulder Screw END PlateAxle Shaft Roll PIN 3/16Sprocket Clik PINKEY Part Description Engine Tecumseh Model LH195SP-67510D 417014X505 Engine Mount PlateImpeller Belt Belt CoverTraction Belt Repair Parts Snow Thrower - Model Number XT5524ES Wheels Wheel Assembly LH35062 Safety Ignition KEYPart KEY Description DECAL, Danger DECAL, Poulan PRODECAL, DANGER, Deflector DECAL, InstructionService Notes Service Notes Limited Warranty

XT5524ES, 422080, 96192002201 specifications

The Poulan XT5524ES is a powerful and versatile snow blower designed for residential use, making winter clean-up easier and more efficient. With a strong emphasis on durability and performance, this model is equipped with features that facilitate effective snow removal from driveways, walkways, and other outdoor areas.

One of the main features of the XT5524ES is its robust 24-inch clearing width. This allows users to tackle larger areas in less time, removing snow quickly and effectively. The machine is powered by a reliable 208cc engine, providing ample horsepower to handle heavy snowfalls and tough winter conditions. The electric start feature simplifies operation, enabling users to start the snow blower effortlessly with just the push of a button.

The XT5524ES comes with a durable metal auger that efficiently breaks up and collects snow, allowing for optimal snow throwing capabilities. It is capable of throwing snow up to 40 feet, depending on conditions, which helps in clearing out driveways and sidewalks without constantly needing to reposition the machine.

In terms of maneuverability, the Poulan XT5524ES features a 180-degree adjustable chute, allowing the operator to easily direct the discharged snow. This adjustable chute can be controlled from the operator's position, giving users the flexibility to manage snow placement effectively. The snow blower’s addition of power steering enhances its maneuverability, making it easier to navigate around obstacles and tight spaces.

Another notable characteristic of this model is its six-speed transmission, which includes four forward speeds and two reverse speeds. This feature ensures that users can adjust their speed depending on the snow conditions and the size of the area being cleared.

Built with user comfort in mind, the XT5524ES sports comfort grip handles designed to minimize fatigue during prolonged use. Its heavy-duty tires provide excellent traction on various surfaces, ensuring stability even in slippery conditions.

Additionally, the Poulan XT5524ES is designed for easy maintenance, with accessible components that allow for quick inspections and repairs. Its robust construction and high-quality materials ensure longevity, making it a reliable choice for winter snow removal tasks.

In summary, the Poulan XT5524ES is a feature-rich snow blower that combines power, efficiency, and user-friendly design, making it an ideal solution for homeowners looking to tackle winter snow challenges with ease.
