Poulan 437920 Repair Parts Snow Thrower Model XT627ES BAG of Parts, 422663, Safety Ignition KEY

Page 36

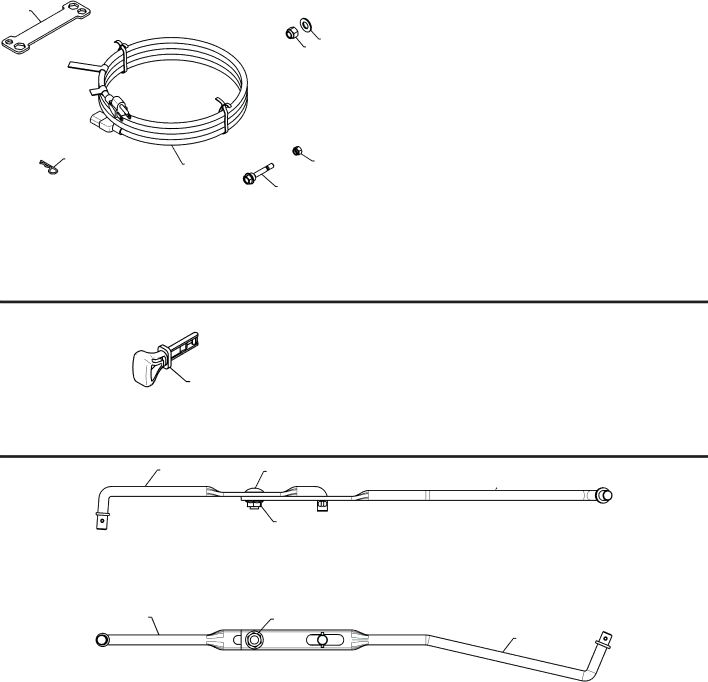

REPAIR PARTS SNOW THROWER - MODEL XT627ES (96192004501)

BAG OF PARTS

			KEY	PART	DESCRIPTION
			NO.	NO.	DESCRIPTION
3			1	198563	POWER CORD
3			2	169675	RETAINER PIN
			2	169675	RETAINER PIN
	4	5	3	180684X008	WRENCH
	4	5	4	73800600	LOCKNUT 3/8−16
			5	19131316	WASHER 3/8
			6	192090	SHEAR BOLT 1/4−20 X 1−3/4
			7	73800400	LOCKNUT 1/4−20
2	1	7
	6
	01.14.004-B

	KEY	PART	DESCRIPTION
	NO.	NO.	DESCRIPTION
1	1	422663	SAFETY IGNITION KEY

01.14.009-A

13

4

1

4

2

		2
01.14.012-A
KEY	PART	DESCRIPTION
NO.	NO.	DESCRIPTION

1180445 SHIFTER ROD TOP

2187716 SHIFTER ROD BOTTOM

372270505 CARRIAGE BOLT 5/16-18 X .75

4

155377

NUT 5/16-18

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty.

36
