Yard-Man 31AH553G401 manual 734-1709

Page 25

MODEL 31AH553G401

Ref. No.

Part No.

Part Description

Ref. No.

Part No.

Part Description













1.

618-0043

Dogg Assembly: RH

30.

736-0169

Lock Washer

2.

618-0044

Dogg Assembly: LH

31.

736-0351

Flat Washer

3.

618-0303B

Drive Shaft Assembly

32.

736-0626

Flat Washer

4.

656-0012A

Friction Wheel: Disc Assembly

33.

737-0170

6-in-1 Lubricant

5.

684-0014B

Shift Rod Assembly

34.

737-0318

Grease

6.

684-0042C

Bearing: Friction Wheel

35.

738-0924

Carriage Screw

7.

684-0131A

Support Bracket: Friction Wheel

36.

741-0598

Hex Flange Bearing

8.

710-0599

TT Screw: 1/4-20 x 0.5”

37.

741-0600

Ball Bearing

9.

710--0809

TT Screw: 1/4-20 x 1.25”

38.

741-1111

Hex Flange Bearing

10.

710-1652

TT Screw: 1/4-20 x 0.625”

39.

746-0897

Auger Clutch Cable

11.

711-1267

Hex Shaft

40.

746-0898

Drive Clutch Cable

12.

711-1268

Drive Shaft: Actr.

41.

746-0956

Steering Cable

13.

711-1364

Clevis Pin

42.

748-0190

Spacer

14.

712-0703

Nut Insert

43.

750-1161A

Support Tube: Axle

15.

712-0711

Jam Nut

44.

750-1162

Spacer

16.

712-3017

Jam Nut

45.

756-0625

Roller: Cable

17.

713-0233

Chain

46.

784-5590

Shift Bracket: Frame

18.

713-0374

Chain

47.

784-5687A

Cable Guide Bracket: Auger

19.

713-0413

Sprocket: 10T

48.

784-5689A

Front Support Bracket: Auger

20.

713-0472

Sprocket: 23T





Clutch Cable Guide

21.

714-0104

Hairpin Clip

49.

784-5730A

Drive Shaft Retainer RH

22.

714-0474

Cotter Pin

50.

784-5731A

Frame Housing

23.

716-0102

Snap Ring

51.

784-5732

Frame Cover

24.

721-0263

Loctite™ Adhesive

52.

784-5733

Bracket: Drive Cable Roller

25.

732-0209

Extension Spring

53.

784-5740

Drive Shaft Retainer LH

26.

732-0264

Extension Spring

54.

710-1233

Oval C-Sunk Screw

27.

736-0105

Spring Washer

55.

712-0127

Weld Nut

28.

736-0142

Flat Washer

56.

725-0157

Cable Tie

29.

736-0160

Flat Washer

57.

746-0950

Steering Control





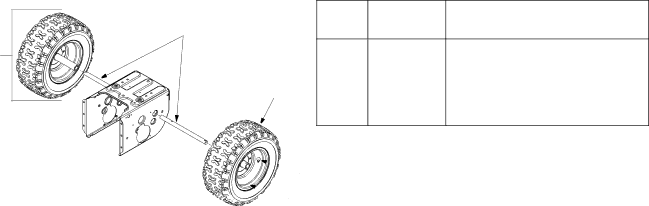

Ref.

Part No.

Part Description

2



No.







1



1.

734-1709

Wheel Assy Comp: 16.5” x 4.8”



2.

738-0994A

Axle: .75” dia. x 12.201” Lg.







3

3.

734-1530

Tire, Snow Hog, 16.5 x 4.8 - 4



4.

734-1708

Rim Assembly









5.

734-0255

Tubeless Air Valve

5

4

25

Image 25
