Meade LX80 instruction manual Equatorial Mode, Setting the Polar Home Position

Page 28

The LX80 Multi-Mount System

Note: Different objects may be displayed on a tour list on any given night.

Press ENTER to display information about the object. Press GoTo to move the telescope to the object.

5.Press MODE to return to the Tour list. Press the Scroll keys to scroll through the list. Press ENTER when you find the next object you wish to observe.

6.Press and hold down MODE for two seconds to leave the Guided Tour menu.

Equatorial Mode

Once the LX80 is fully assembled and AudioStar

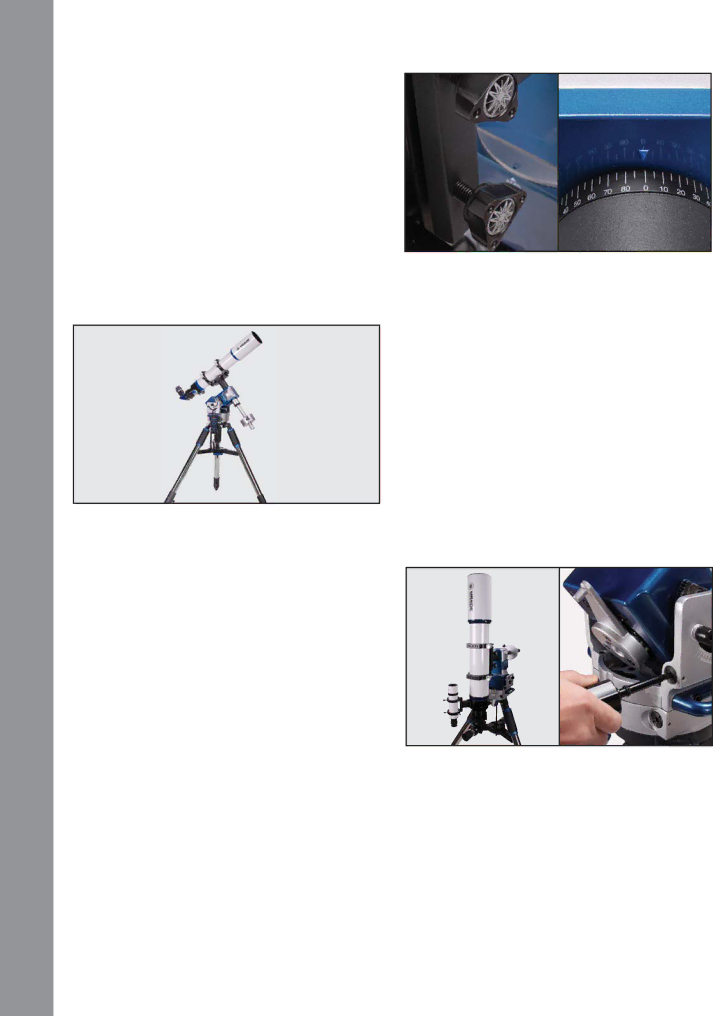

Fig 33: Equatorial Mode

initialized (See Page 24 for Initializing AudioStar), you will need to set the telescope into the polar home position, and perform an alignment on the night sky in order for the LX80 to successfully locate and track celestial objects. Performing the “Easy Alignment” routine is the ideal way to get started.

Setting the Polar Home Position

1.Notice that there is an “N” mark printed on the front of the base near the Azimuth lock (Page 11, Fig 5, 36). Lift the whole telescope assembly so that this arrow points to “True” north (or South in the Southern Hemisphere). Locate Polaris, the North Star, if necessary, to use as an accurate reference for due North (or Sigma Octantis in the Southern Hemisphere). See Locating THE CELESTIAL POLE, Page 62.

2.Level the mount, if necessary, by adjusting the length of the three tripod legs. Use the bubble level built-in to the base to assist you (Page 10, Fig 4, 32). The fine leg levelers

Fig 34: Align “EQ” with “AZ/EQ” mark. Set OTA at “0” mark

at the top of each tripod leg will allow you to make small adjustments to the tripod level (Page 11, Fig 6, 47).

2.Loosen the DEC Lock (Page 8, Fig 1, 30) so that the OTA rotates freely. Rotate the OTA to so that “0” degree mark on the DEC axis lines up with the reference arrow that is cast into the mount (Fig. 34). Retighten the DEC lock.

3.Release the RA lock (Page 8, Fig 1, 29) and rotate the telescope so that the “EQ” mark and the “AZ/ EQ” mark are aligned (Fig. 34). Retighten the RA lock.

4.If you have not already done so, determine the

Fig 35: Tilt the mount head using hex head tool

latitude of your observing location. See APPENDIX

E:LATITUDE CHART, Page 65, for a list of latitudes of major cities around the world.

5.Set the latitude: Setting the latitude is easier if it is set before you attach the optical tube to the assembly. Locate the latitude dial (Page 9, Fig 2, 28); note that there is a triangular pointer above the dial located on the mount. The latitude pointer
