Paradyne 5620-A2-GN11-30 DSL Access without a Pots Splitter, Service Provider

Page 2

NOTES:

In this document:

ÐEnd-user system is used to represent any host with an Ethernet connection.

ÐService provider is used to represent any Internet Service Provider (ISP) or remote LAN access provider.

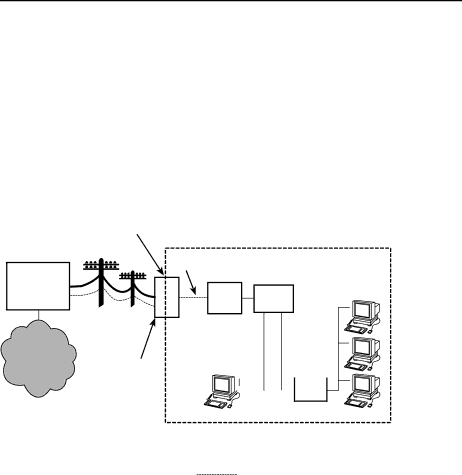

DSL Access without a POTS Splitter

When the Hotwire 5620 RTU is installed without a POTS splitter, the DSL line is used for data only and does not provide telephone services.

Central

Office

(CO)

Service

Provider

Demarcation

Customer Premises (CP)

Point



POTS/DSL



End-user









DSL

RTU

Systems



Jack



Local Loop













Ethernet



Ethernet



Crossover or



Cable



Cable







Punchdown

Block or NID Hub

00-16725

DSL –

Digital Subscriber Line

RTU – Remote Termination Unit

NID –

Network Interface Device

New Wiring Connections

2

Image 2
Contents Contents What Does the Hotwire 5620 RTU Do?Customer Premises CP DSL Access without a Pots SplitterService Provider DSL Access with a Hotwire 5030 or 5038 Pots Splitter Document Number Document Title DSL Access with a Hotwire 5038 Distributed Pots SplitterProduct-Related Documents Package Checklist Wiring and Cables You NeedPunchdown Block Installing the DSL Access WiringProcedure Telephone Network Interface Device NID Connecting to the DSL Access Wiring RJ11 Wall JackPots Splitter Installing the Hotwire 5620 RTUHotwire RTU Ethernet Line Digital Subscriber Line green Ethernet Link green Power-OnAlarm red Status LEDs Condition StatusTroubleshooting LED Symptom ActionPin # Function Cables & ConnectorsIncreasing the Number of End-User Systems This section is reference informationPin Ethernet Crossover Cable Function Pin # Pin # Function Pin Straight-Through ConnectionEthernet Cable Optional RTU Wall Placement RTU Hardware Template Technical Specifications for Model 5620 RTU SpecificationImportant Safety Instructions CE Marking JapanDeclaration of Conformity Canada ± EMI NoticeGovernment Requirements United States ± Notice to Users of the Telephone NetworkPage Trademarks Warranty, Sales, Service, and Training InformationDocument Feedback

5620-A2-GN11-30 specifications
