Lumens Technology PS600 user manual Control Panel, AWB/Shift:

Page 10

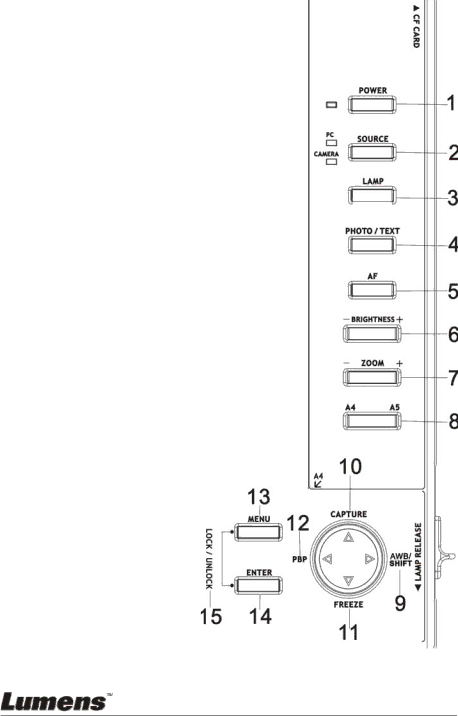

3.2 Control Panel

1.PowerPower on/off

2.Source

Select PC or Camera to Projector

3.Lamp

Switch / on / off the lamp and backlight

4.Photo/Text

Select the photo or text mode

5.AF

Auto Focus

6.Brightness +/– Brightness Adjustment

7.Zoom + /– zoom in/out

8.A4/A5

Speedy zoom to A4/ A5 size

9.AWB/Shift

AWB is Auto White Balance; Shift function enables in PBP mode that can be shifted the other half

10.Capture

Capture an image into internal memory or storage card

11.Freeze

Freeze the live image

12.PBP

Compare the live image and captured image

13.Menu

Entry the OSD menu

14.EnterEnter

15.Lock/ Unlock

Enable / Disable the Capture, PBP, AWB, Freeze etc

English - 9
