Lumens Technology PS600 user manual I/O Connector

Page 11

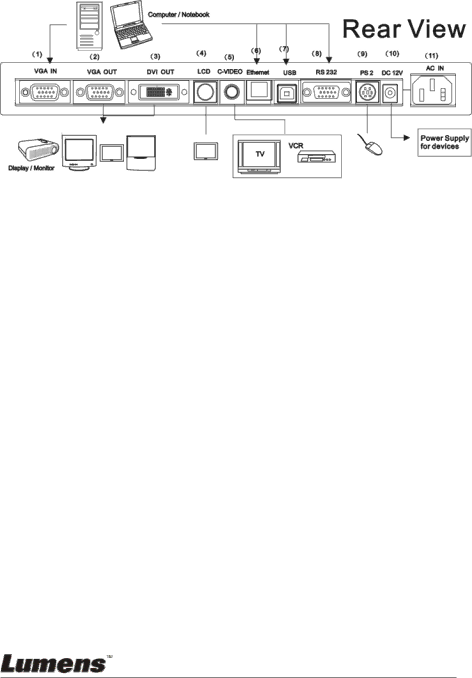

3.3 I/O Connector

1.VGA IN

Connect to VGA-out of other device for example PC

2.VGA OUT

Connect to VGA-in of another visual device

3.DVI OUT

Digital & Analog Receptacle Connector

4.LCD Monitor

External small size LCD monitor

5.C-VIDEO

C-Video for video output

6.Ethernet

Ethernet connection For remote central control

7.USB ( support USB 1.1 )

Ethernet connection For remote central control

8.PS2

Connect with PS/2 mouse

9.RS232

Connect external device with RS232

10.DC 12V output

Output the 12V (DC) from Digital Presenter, such as the backlight.

11.AC-in

Use this to connect the power cable (100 - 240V) for the power input
