Chapter 3

Chapter 3:

Installation

Overview

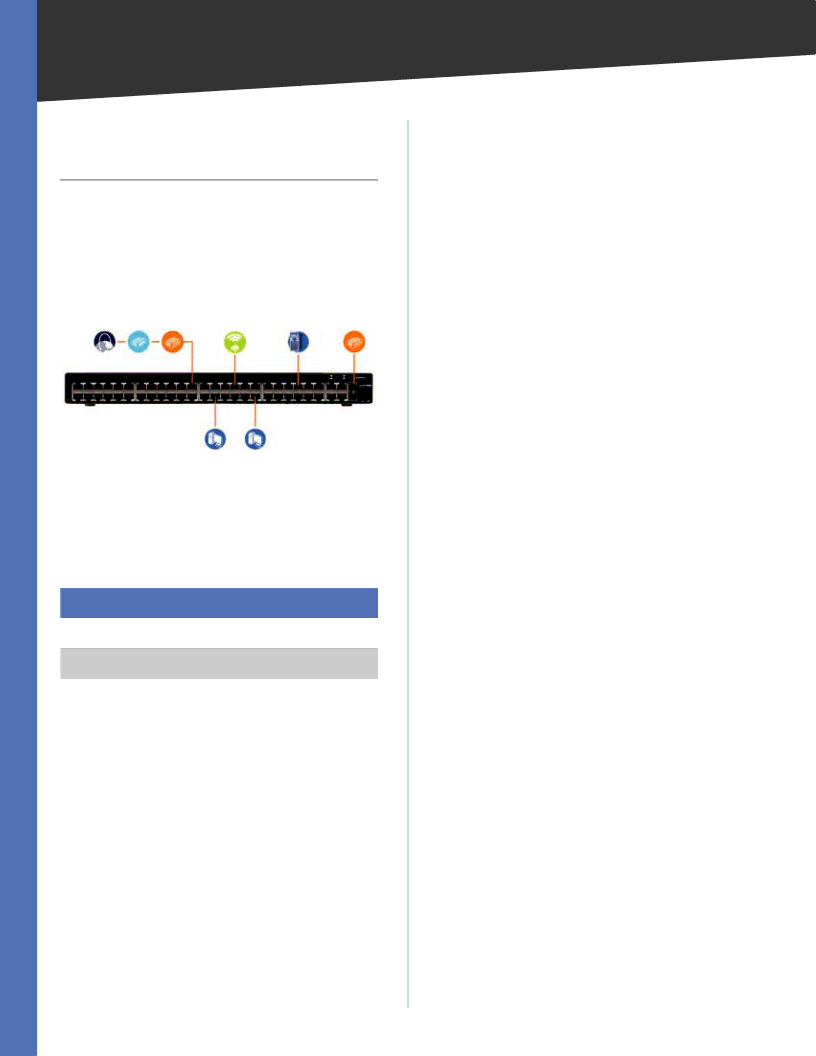

This chapter will explain how to connect network devices to the Switch. The following diagram shows a typical network configuration.

Cable/DSL





Uplink via Fiber to

Internet Modem Router

Wireless Access Point

Server

Switch

10/100/1000 10/100 Desktop Notebook

Typical Network Configuration for the SLM248G4S

When you connect your network devices, make sure you do not exceed the maximum cabling distances, which are listed in the following table:

Maximum Cabling Distances

From

To

Maximum Distance







Switch

Switch or Hub

100 meters (328 feet)

Hub†

Hub

5 meters (16.4 feet)

Switch or Hub†

Computer

100 meters (328 feet)







A hub refers to any type of 100 Mbps hub. A 10 Mbps hub connected to another 10 Mbps hub can span up to 100 meters (328 feet).

Installation

Pre-Installation Considerations

Fast Ethernet Considerations

If you are using the Switch for Fast Ethernet (100 Mbps) applications, you must observe the following guidelines:

Full-Duplex Considerations

The Switch provides full-duplex support for its RJ-45 ports. Full-duplex operation allows data to be sent and received simultaneously, doubling a port’s potential data throughput. If you will be using the Switch in full-duplex mode, the maximum cable length using Category 5 cable is 328 feet (100 meters).

1000BASE-T Cable Requirements

All Category 5 UTP cables that are used for 100BASE-TX connections should also work for 1000BASE-T, providing that all four wire pairs are connected. However, it is recommended that for all critical connections, or any new cable installations, Category 5e (enhanced Category

5)or Category 6 cable should be used. The Category

5e specification includes test parameters that are only recommendations for Category 5. Therefore, the first step in preparing existing Category 5 cabling for running 1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3ab standards.

Positioning the Switch

Before you choose a location for the Switch, observe the following guidelines:

Make sure that the Switch is accessible and that the cables can be connected easily.

Keep cabling away from sources of electrical noise, power lines, and fluorescent lighting fixtures.

Position the Switch away from water and moisture sources.

To ensure adequate air flow around the Switch, be sure to provide a minimum clearance of two inches (50 mm).

Do not stack free-standing Switches more than four units high.

Placement Options

There are two ways to physically install the Switch, either set the Switch on its four rubber feet for desktop placement or mount the switch in a standard-sized, 19-inch wide, 1U- high rack for rack-mount placement.
