1.1 Kit Contents

1.1 Kit Contents

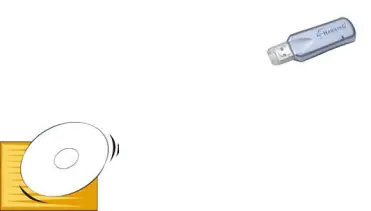

The 802.11b WLAN USB Adapter kit should include the following items: One 802.11b WLAN USB Adapter, one CD and one Quick Start Guide.

a.One 802.11b WLAN USB Adapter

b.One Software CD including:

1.Utility & Driver Installation Software

2.Acrobat Reader

3.User Manual PDF File

c.Quick Start Guide

If any of the items mentioned above are damaged or missing, please contact your distributor.
