Rear Panel Features

1

4

3

2

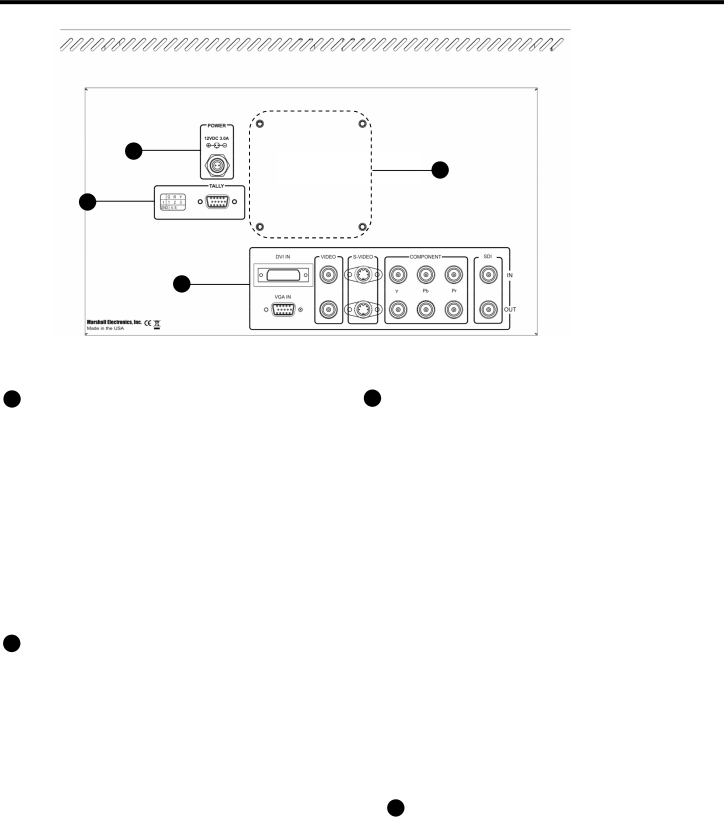

Rear Panel

1 Power Input 3 Tally Interface

Connect the 12VDC input to the Conxall 2-pin twist-lock power input connector. Power can be supplied from the included power supply, or from a variety of DC sources supplying at least 3 Amps at 12 Volts.

IMPORTANT: If using a power source other than the included power supply, be sure that the polarity of the DC input is correct:

Pin 1: +12VDC

Pin 2: GND

2Signal Input/Output

Connections:

•Composite Video Input/Output (BNC)

•S-Video Input/Output (4-Pin Mini-DIN)

•YPBPR Input/Output (BNC x 3)

•SDI Input/Output (BNC)

•VGA (HD-15)

•DVI (29-Pin connector, DVI-D signals only)

All outputs are active and require the monitor to be powered.

Each tally light is activated via the HD-15 connector by connecting the corresponding pin to ground. A variety of external devices can be used to perform the contact closure. No additional power should be supplied to the HD-15 port.

Tally Interface: HD-15 Pinout

Pin No.	Signal
1	Green
2	Red
3	Yellow
4	Ground
5	Ground
6	N/C
7	N/C
8	N/C
9	N/C
10	N/C
11	N/C
12	N/C
13	N/C
14	Ground
15	Ground

Example: To activate the red tally light, connect pin 2 to pin 4, 5, 14, or 15.

4Mounting Holes

A VESA-standard 75 mm hole pattern is provided to accommodate a variety of custom mounting options.
