4.4 Log

Function button can be used to search the images from motion recording and sensor recording logs.

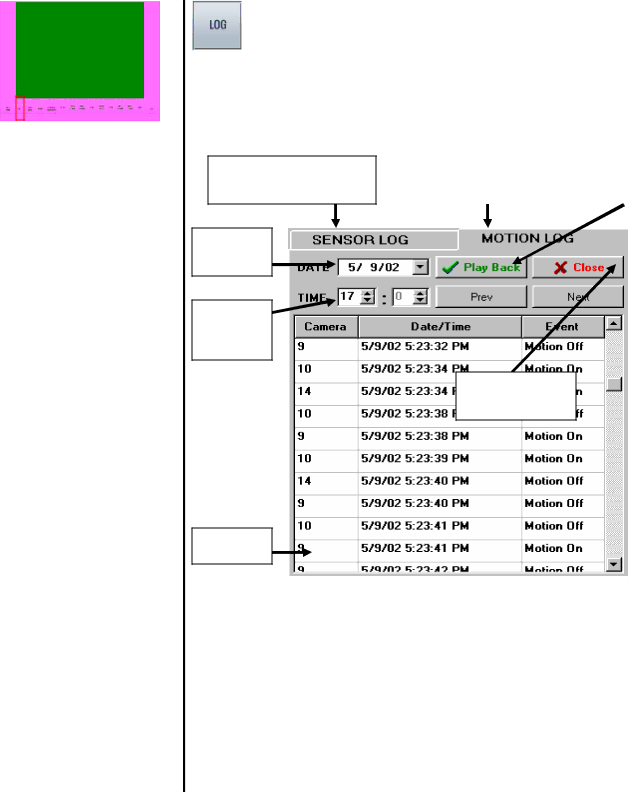

Click this button the screen will prompt out a data list displayed as below. (Please follow the steps below)

Click here to review the Sensor Recording Log

Date selection

Time selection

			Select the Log
	Click here to review		Select the Log
	Click here to review		and click here to
	the Motion		playback the data
	Recording Log		playback the data
	Recording Log

Close Log

Search function

List item

1.Sensor Recording Log or Motion Recording Log Select the log database you want to search.

2.Date

Select the date you want to search.

3.Time

Select the time you want to search.

4.List item

Click on a specific item you want to search.

5.Playback or Close

Click “Play Back” button to review the image you searched, or Close the function.
