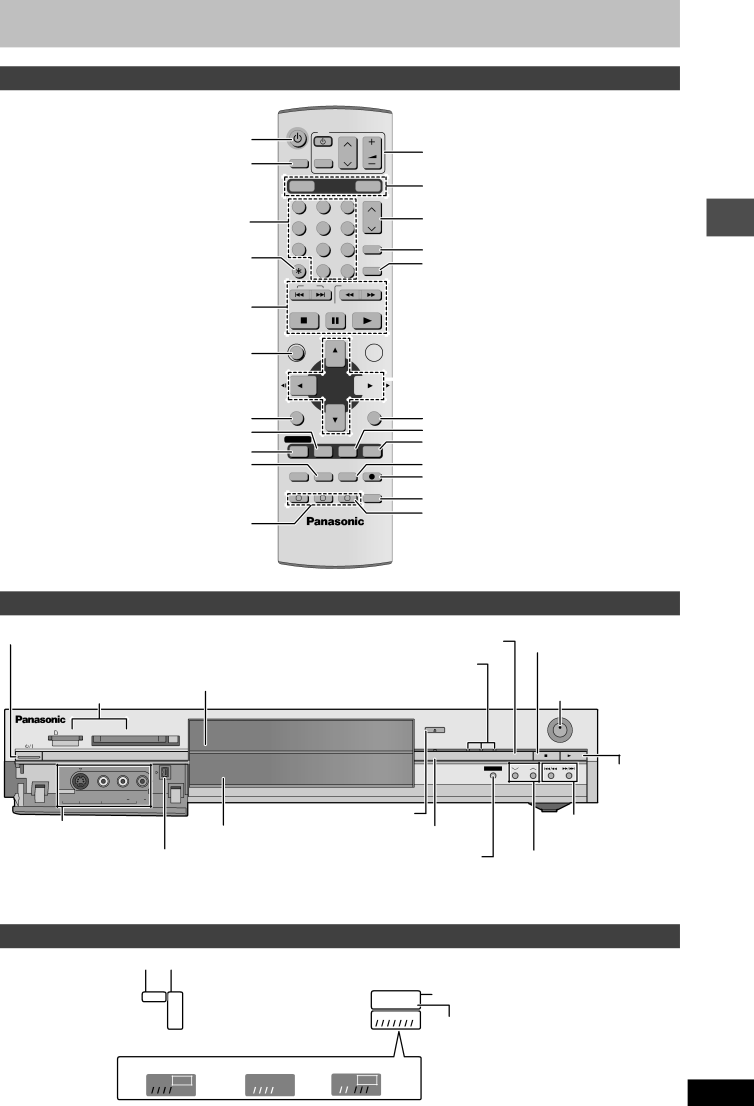

Control reference guide

Remote control

Turn the unit on (➡page 9)

Input select (AV3, AV4 or DV) (➡page 33)

Select channels and title numbers etc./ Enter numbers

Cancel

Basic operations for recording and play

Show Top menu/Direct navigator (➡page 20, 28)

DVD

TV

INPUT SELECT

CH

VOLUME

Television operations (➡page 11)







AV







DVD

DRIVE SELECT SD/PC

Select drive (DVD, SD or PC)

1

2

3



(➡page 14, 20, 25)



Channel select (➡page 14)

4

5

6

CH





7

8

9

G-Code

Show G-CODEscreen (➡page 17)





Skip 30 seconds forward (➡page 21)

CANCEL

0

-/--

MANUAL SKIP







SKIP



SLOW/SEARCH



STOP



PAUSE

PLAY/x1.3



DIRECT NAVIGATOR



FUNCTIONS



Show FUNCTIONS window (➡page 35)

TOP MENU

Selection/Enter, Frame-by-frame (➡page 9, 21)

ENTER

Getting started

Show sub menu (➡page 28)

Show on-screen menu (➡page 26)

Show timer recording programme screen (➡page 18) Erase items (➡page 22)

Programme recording standby/release (➡page 17, 18)

Manual tuning operation (➡page 42)

SUB MENU

PROG/CHECK DISPLAY STATUS

TIMER ERASE REC MODE

F

CREATE

CHAPTER

A B C

RETURN



Return to previous screen



Show status messages (➡page 27)

TIME SLIP

Skip the specified time/Display the television image



as a picture-in-picture (➡page 15, 21)

REC

Change recording mode (➡page 14)

Start recording (➡page 14)



AUDIO

Select audio (➡page 22)





Create chapter (➡page 22)

Main unit

Standby/on switch (Í/I) (➡page 9)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small

amount of power.

Disc tray (➡page 14, 20)

SD/PC card slots (➡page 24)



SD CARD

PC CARD

EJECT

























Select drive (➡page 14, 20, 25)

Lights when the DVD, SD or PC drive is selected

OPEN/CLOSE

TIME SLIP

DVD

SD

PC

Stop (➡page 14, 21)

Remote control signal sensor/ Start recording (➡page 14)

REC

DRIVE SELECT

/x1.3





AV3

S-VIDEO IN

VIDEO IN

L/MONO

AUDIO IN

R

DV IN

Connection for camcorder etc. (➡page 33)

TIME SLIP

Open/close disc tray (➡page 14, 20)

Display (➡below)

Time Slip indicator (➡page 15)

CH

Start play (➡page 20)

Skip/Slow/Search (➡page 21)

Connection for digital video (DV) camcorder (➡page 33)

Rear panel terminals (➡page 7, 8)

Skip the specified time/Display the television

Channel select

image as a picture-in-picture (➡page 15, 21)

(➡page 14)

The unit’s display

Card indicator Recording mode

Transferring (dubbing) in progress indicator

Timer recording indicator















SD PC XP









DVD - R AM









SP







VCD.MIX

LP







PLAY REC

EP























Main display section

Recording

Playback

Recording/Playback

REC

PLAY



PLAY REC

Disc type





D.MIX (multi-channel DVD-Audio only)



When lit:

down-mixed audio is played.



When off: the disc prevents down-mixing





so only the two front channels

RQT7450



can be played.

5
