Page 4

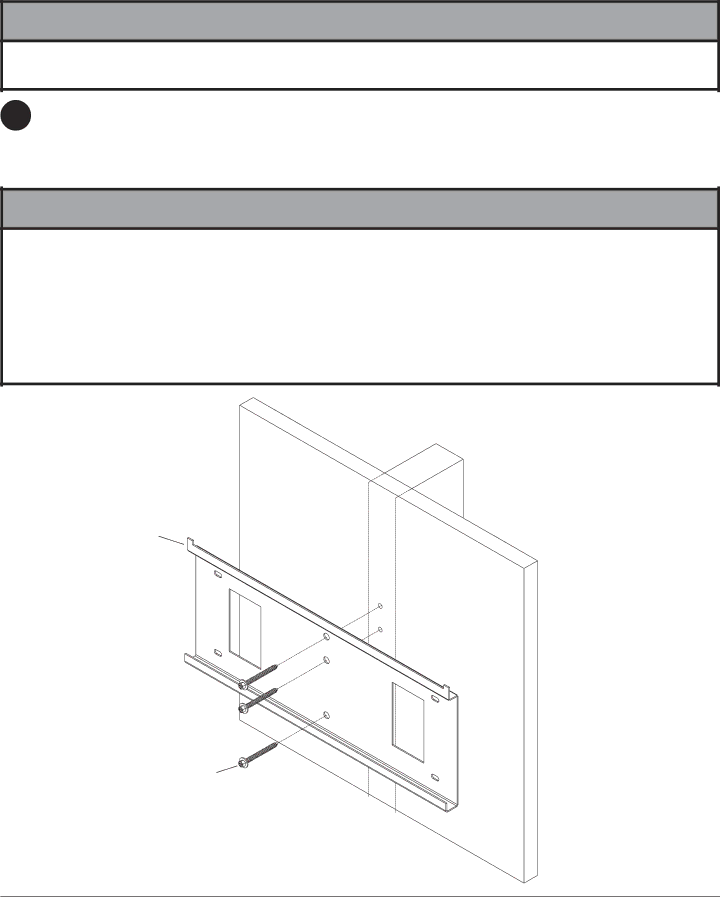

Installation to Single Wood Stud Wall

WARNING

Installer must verify that the wall will safely support four times the combined weight of all attached equipment and hardware.

1

Use stud finder to locate stud centers. Place wall plate (AA) on wall as template, level wall plate and mark center

of studs with pencil. Drill three 5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Attach wall plate (AA) using three #14

x 2.5" wood screws (CC).

Skip to step 2 on page 7.

WARNING

Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.

Never tighten in excess of 80 in. • lb (9 N.M.).

Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is highly recommended.

Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install- ers are responsible to provide hardware for other types of mounting situations.

AA

CC

4 of 8

ISSUED: 03-02-05 SHEET #: 201-9323-1

Visit the Westinghouse Web Site at www.westinghousedigital.com

For customer service call 1-866-287-5555.
