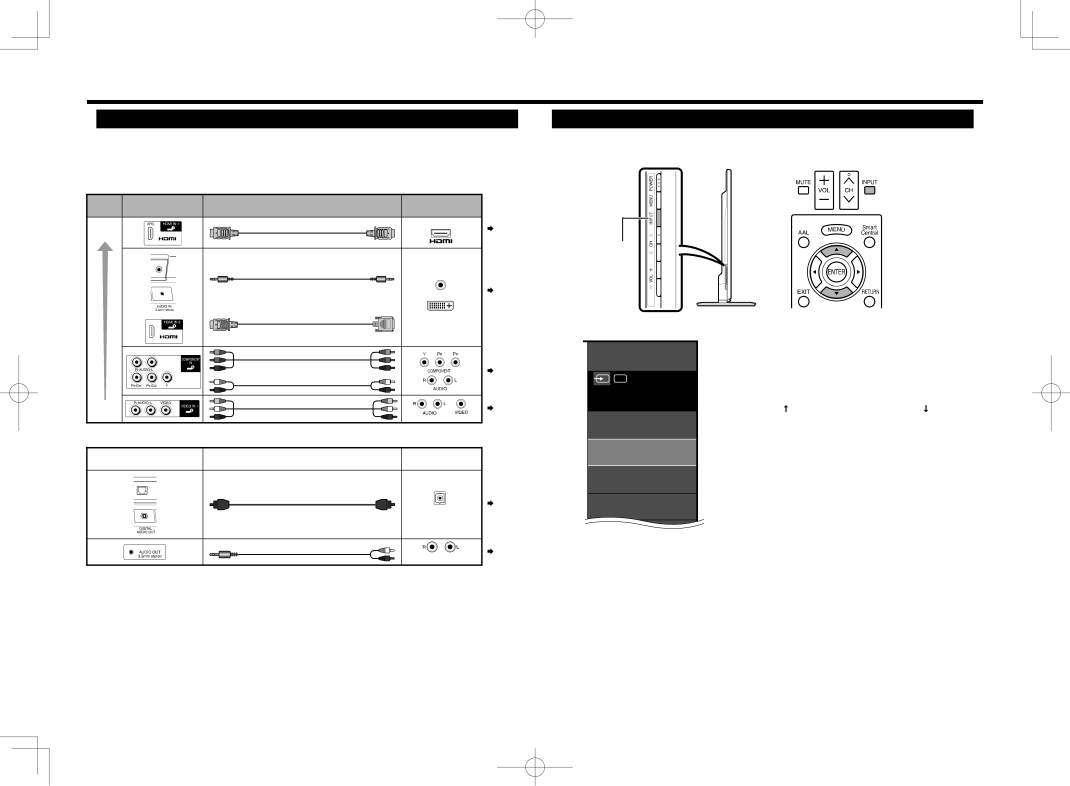

Introduction to Connections

Types of Connection

For connecting the TV to external equipment, use commercially available cables.

• The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

Connecting to video equipment or PC

Image quality differs depending on the terminal used. To enjoy clearer images, check the output terminals of your external equipment and use its appropriate terminals for higher quality images.

Displaying an External Equipment Image

To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV.


Terminal

Cable

Terminal on external



Quality

on the TV

equipment







HD



HDMI-certified cable



Pages

Quality







14, 15













Ø 3.5 mm stereo minijack cable











AUDIO

Pages







14, 15













DVI-HDMI conversion cable

DVI OUT















Component video cable









Audio cable



Page 14









Standard



AV cable



Page 14







Quality















Connecting to audio equipment

Terminal on the TV

Cable

Terminal on external

equipment



















INPUT

Example

Input Menu

AIR

INPUT

TV

HDMI1

HDMI2

1Press INPUT.

The INPUT list screen displays.

2Press a/b to select the input source.

You can also select the input source by pressing INPUT. Each time INPUT is pressed, the input source toggles.

HDMI1 HDMI2 HDMI3

TV HDMI4

An image from the selected source automatically displays.

If the corresponding input is not plugged in, you cannot change the input. Be sure to connect the equipment beforehand.

Optical fiber cable

Page 15

OPTICAL

DIGITAL AUDIO INPUT



Ø3.5 mm stereo minijack to RCA audio cable

Page 15



ANALOG AUDIO IN



HDMI3

13
