Sharp LC-70LE734U Connecting to External Equipment, When using Component cable Component

Page 16

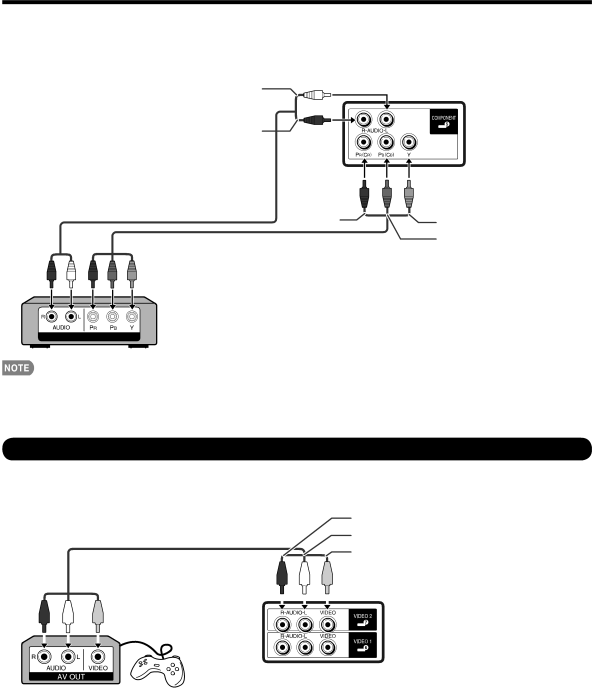

Connecting to External Equipment

■When using Component cable (COMPONENT):

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box

	Back panel
AUDIO-L (White)	surface inputs
AUDIO-L (White)
AUDIO-R (Red)

Audio cable	PR (Red)
	PR (Red)
	Component video cable

Y(Green) PB (Blue)

COMPONENT OUT

•To enjoy 1080p display capability, connect your external equipment using an HDMI-certiﬁ ed cable or a component cable and set the equipment to 1080p output.

•See page 13 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.

Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box

■When using Composite cable (VIDEO 1 or 2):

• Game console

• VCR

• Camcorder

• Cable/Satellite set-top box

AUDIO-R (Red)

AV cable

AUDIO-L (White)

VIDEO (Yellow)

Back panel surface inputs
