Quick Setup

Connections





Notes:

Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information.

Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables.

You may also connect the DVD player to Input 1.

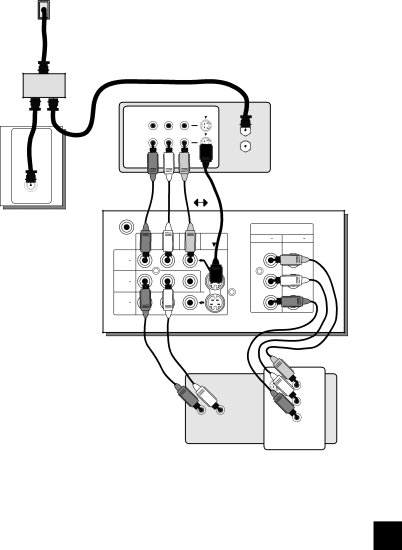

Diagram #3

Cable or Antenna

Output

Two-Way

IN

Splitter

OUT OUT



75Ω



( VHF/UHF )

TV Rear Panel

Coaxial Cable

R

L V





IN

IN



VCR





OUT

OUT













OR









COMPONENT VIDEO

AUDIO

VIDEO S VIDEO

INPUT 2

INPUT 1

R

L







OVER





INPUT 3



Y

Y

INPUT 2



Pb

Pb

INPUT 1



Pr

Pr



OVER







Y

Green







PB

Blue





AUDIO OUT

PR

Red



R L

OUT



DVD Player (OPTIONAL)
