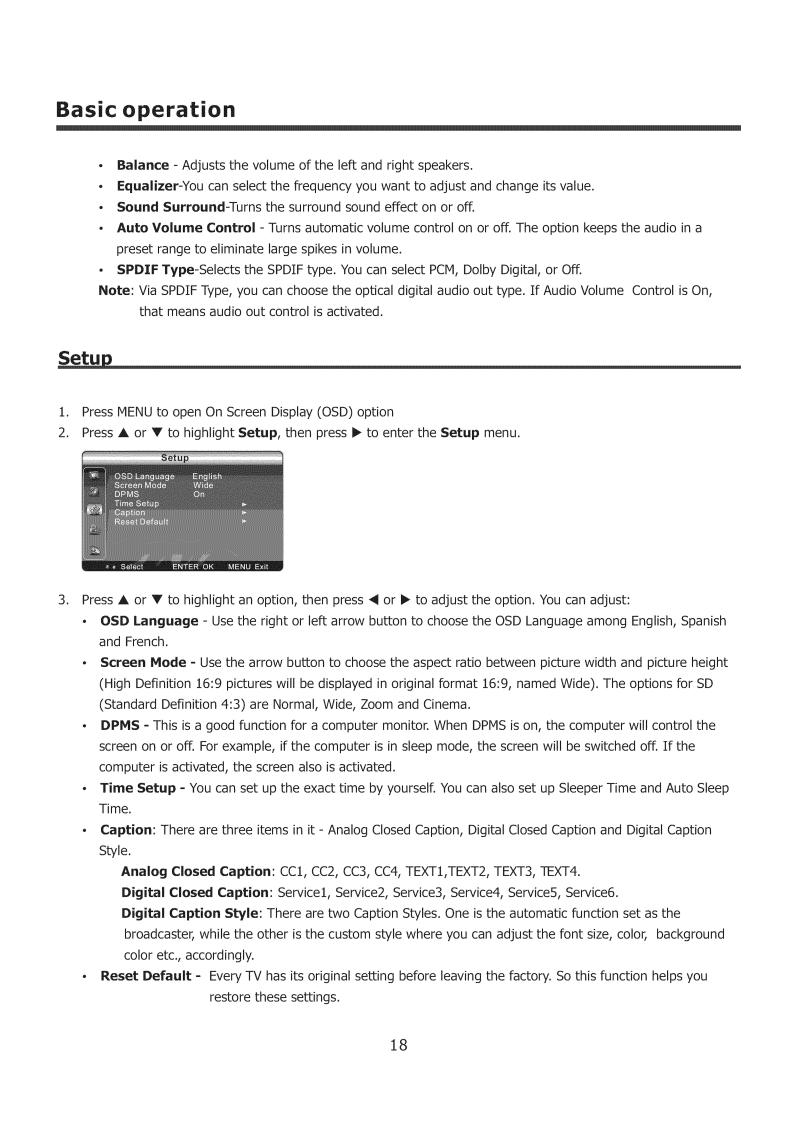

ProScan 32LC30S57 user manual Setu

Page 19

Basic operation

. Balance - Adjusts the volume of the left and right speakers.

,Equalizer-Youcan select the frequency you want to adjust and change its value.

,Sound Surround-Turns the surround sound effect on or off.

,Auto Volume Control - Turns automatic volume control on or off. The option keeps the audio in a preset range to eliminate large spikes in volume.

,SPDIF Type-Selectsthe SPDIF type. You can select PCM, Dolby Digital, or Off.

Note: Via SPDIF Type, you can choose the optical digital audio out type. If Audio Volume Control is On, that means audio out control is activated.

Setu

1.Press MENU to open On Screen Display (OSD) option

2.Press A or Y to highlight Setup, then press _ to enter the Setup menu.

. Press A or V to highlight an option, then press _ or 1_ to adjust the option. You can adjust:

,OSD Language - Use the right or left arrow button to choose the OSD Language among English, Spanish and French.

,Screen Mode - Use the arrow button to choose the aspect ratio between picture width and picture height

(High Definition 16:9 pictures will be displayed in original format 16:9, named Wide). The options for SD (Standard Definition 4:3) are Normal, Wide, Zoom and Cinema.

. DPMS - This is a good function for a computer monitor. When DPMS is on, the computer will control the screen on or off. For example, if the computer is in sleep mode, the screen will be switched off. If the computer is activated, the screen also is activated.

,Time Setup - You can set up the exact time by yourself. You can also set up Sleeper Time and Auto Sleep Time.

. Caption: There are three items in it - Analog Closed Caption, Digital Closed Caption and Digital Caption

Style.

Analog Closed Caption: CC1, CC2, CC3, CC4, TEXT1,TEXT2, TEXT3, TEXT4.

Digital Closed Caption: Service1, Service2, Service3, Service4, Service5, Service6.

Digital Caption Style: There are two Caption Styles. One is the automatic function set as the broadcaster, while the other is the custom style where you can adjust the font size, color, background color etc., accordingly.

. Reset Default - Every TV has its original setting before leaving the factory. So this function helps you restore these settings.

18
