Page 25

Appendix

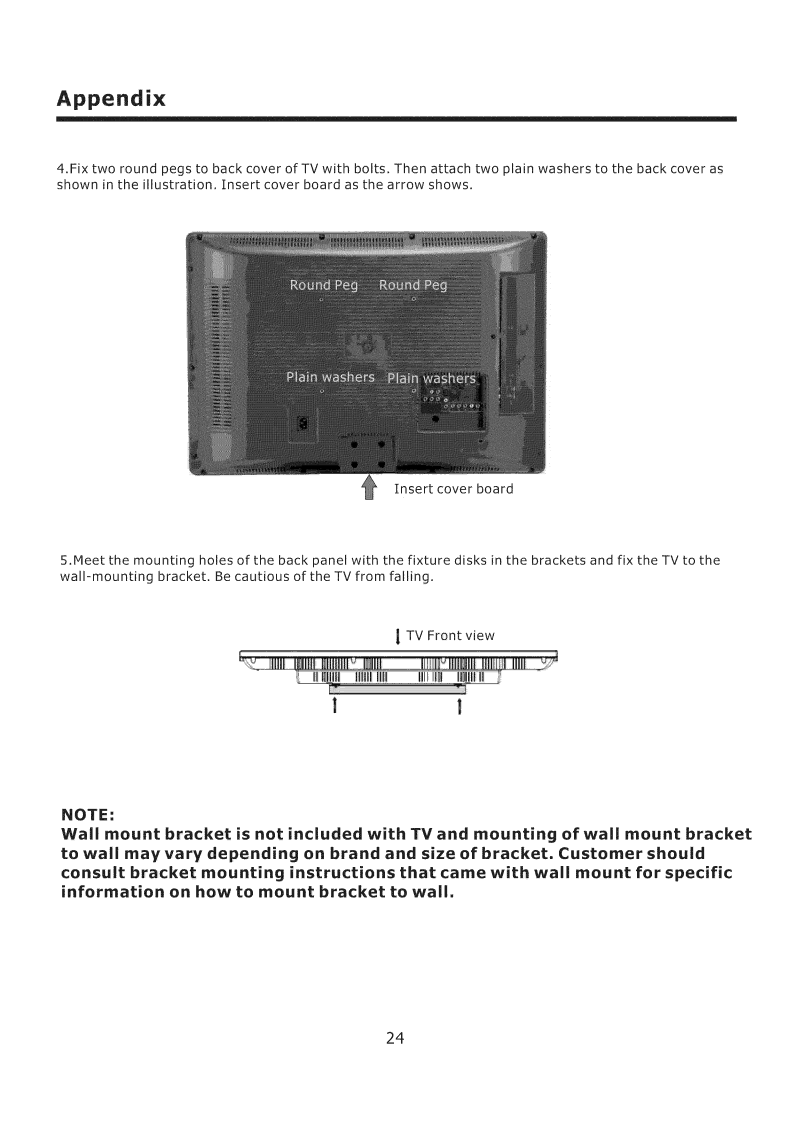

4.Fix two round pegs to back cover of TV with bolts, Then attach two plain washers to the back cover as shown in the illustration. Insert cover board as the arrow shows,

Insert cover board

5,Meet the mounting holes of the back panel with the fixture disks in the brackets and fix the TV to the

wall-mounting bracket, Be cautious of the TV from falling,

TV Front view

NOTE:

Wall mount bracket is not included with TV and mounting of wall mount bracket

to wall may vary depending on brand and size of bracket. Customer should

consult bracket mounting instructions that came with wall mount for specific

information on how to mount bracket to wall,

24
