Sceptre Technologies x32 user manual Rear View Mounting Pattern

Page 13

SCEPTRE X32 HDTV User Manual

POWER – Turn on the TV by pressing the button once. Press the button again to turn off the TV.

SOURCE – This button switches between all the different sources of the TV. The switching sequence is as follows : TV (cable or air), AV1 (CVBS), AV1 (S- Video), AV2 (CVBS), AV2 (S-Video), YPbPr1, YPbPr2, HDMI, and VGA. When the OSD is active, this button acts as the enter button and confirms the menu selection.

MENU – This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will return selection to the previous menu level. CH(▲/▼) – These buttons change the TV channel up or down. If the OSD is active, these buttons function as up or down controls for the menu.

VOL(+/-)– These buttons increase or decrease the TV’s volume. If a sub-menu is active, pressing these buttons will move the selection left or right.

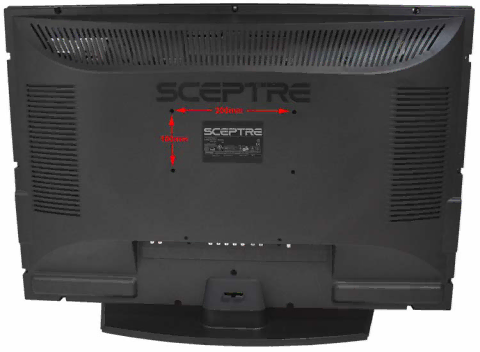

Rear View Mounting Pattern

Mounting Specification : 200mm x 100mm using screw M6 (6mm) diameter screws.
