INSTALLATION (Connection)

Connection to the other Satellite Receiver.

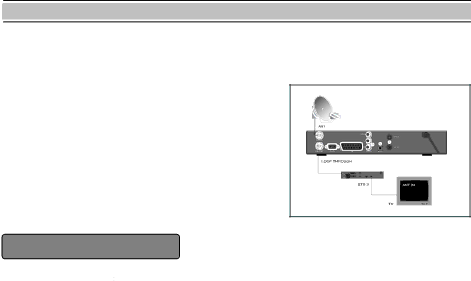

Connect the satellite antenna cable to the LNB IN socket on the STB. With other connector, connect the IF OUT socket on the STB and the LNB IN socket of the other STB or STB.

GETTING STARTED

Press the Power () button to operate the STB from the STANDBY mode. Now, the

Info Box will appear for a given time and disappear. By pressing button, the Info Box will remain on the screen. The display time of the Info Box is adjustable in the System Setting menu of the Main menu.

IMPORTANT: Before taking charge of your new STB, some important technical settings are essential.

-First, press the MENU ( ) button on the RCU to make the Main Menu appear.

-Go to the LNB Setting item in the Installation menu and press button.

-Choose the right parameters for Satellite Name, LNB Frequency, LNB Power, 22KHz, DiSEqC 1.1 and DiSEqC 1.0.

-Set the Motorized DiSEqC1.2 and the USALS items according to your antenna, LNB and satellite settings. If the right Satellite Name and LNB Frequency were not found in the list, call the dealer for satellite information.

-Then, press button at Service Search item and go to the Service Search menu.

-Set the Search Mode to the Auto. (Manual , Advanced or SMATV Search)

-Select the Start Search... item and press button.

-The search procedure will take a while. Press button when the searching process is finished to confirm and save the new service list.

-For further information, please refer to the LNB Setting part of MENU OPERATIONS in this manual.
