Connections

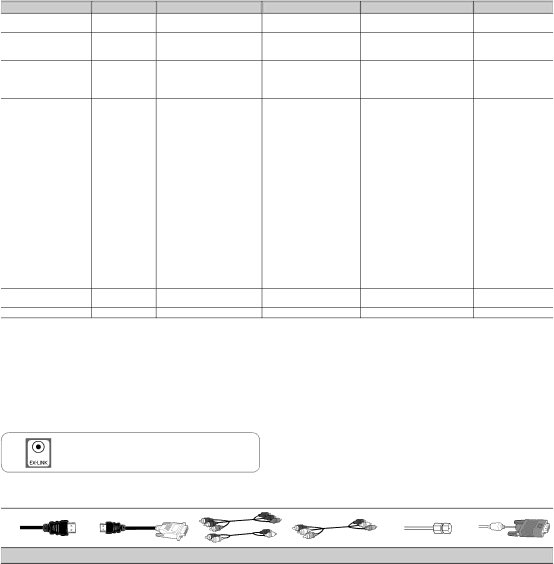

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 x 1080@60Hz.

Mode

Resolution

Horizontal Frequency (KHz)

Vertical Frequency (Hz)

Pixel Clock Frequency (MHz)

Sync Polarity (H / V)

IBM

640 x 350

31.469

70.086

25.175

+/-

720 x 400

31.469

70.087

28.322

-/+





640 x 480

35.000

66.667

30.240

-/-

MAC

832 x 624

49.726

74.551

57.284

-/-



1152 x 870

68.681

75.062

100.000

-/-



720 x 576

35.910

59.950

32.750

-/+

VESA CVT

1152 x 864

53.783

59.959

81.750

-/+

1280 x 720

56.456

74.777

95.750

-/+





1280 x 960

75.231

74.857

130.000

-/+



640 x 480

31.469

59.940

25.175

-/-



640 x 480

37.861

72.809

31.500

-/-



640 x 480

37.500

75.000

31.500

-/-



800 x 600

37.879

60.317

40.000

+/+



800 x 600

48.077

72.188

50.000

+/+



800 x 600

46.875

75.000

49.500

+/+



1024 x 768

48.363

60.004

65.000

-/-



1024 x 768

56.476

70.069

75.000

-/-



1024 x 768

60.023

75.029

78.750

+/+

VESA DMT

1152 x 864

67.500

75.000

108.000

+/+

1280 x 1024

63.981

60.020

108.000

+/+





1280 x 1024

79.976

75.025

135.000

+/+



1280 x 800

49.702

59.810

83.500

-/+



1280 x 800

62.795

74.934

106.500

-/+



1280 x 960

60.000

60.000

108.000

+/+



1280 x 720

45.000

60.000

74.250

+/+



1360 x 768

47.712

60.015

85.500

+/+



1440 x 900

55.935

59.887

106.500

-/+



1440 x 900

70.635

74.984

136.750

-/+



1680 x 1050

65.290

59.954

146.250

-/+

VESA GTF

1280 x 720

52.500

70.000

89.040

-/+

1280 x 1024

74.620

70.000

128.943

-/-



VESA DMT / DTV CEA

1920 x 1080p

67.500

60.000

148.500

+/+

✎✎NOTE











xx For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.





xx The interlace mode is not supported.







xx The set might operate abnormally if a non-standard video format is selected.



xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.



EX-LINK













Connector for service only.







Input Cables (Sold Separately)









HDMI

HDMI-DVI

Component

Composite (AV)

Coaxial (RF)

VGA
