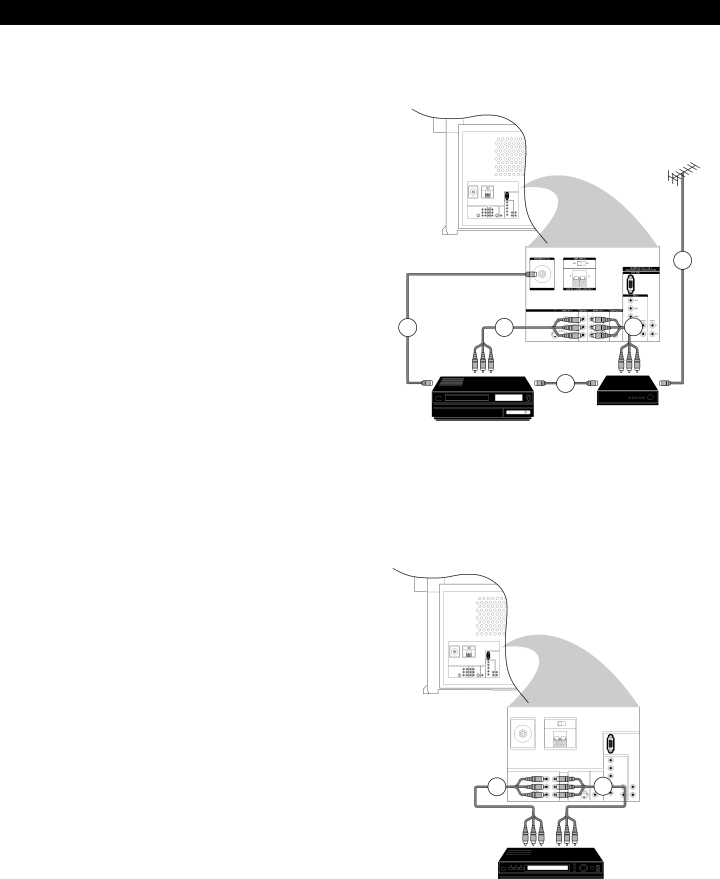

CONNECTING PERIPHERAL EQUIPMENT

Video Recorder and Other A/V Peripherals

Connect the RF cable to the RF socket on your A/V peripheral equipment.

To obtain better picture quality, also connect the Video and Audio left and Audio right (only for stereo equipment) cables to the VIDEO and AUDIO L (mono) and AUDIO R input of the INPUT- AV 2 sockets.

Note : In case of mono equipment, only the left loudspeaker	CABLE
reproduces sound. Use a mono-to-stereo adapter (not supplied)
for sound reproduction via the internal loudspeakers.	REAR OF TV

3 Connect the RF output of the A/V peripheral equipment to the RF input on the video recorder.

4 When a video recorder is not connected to MONITOR OUT on your TV, you can record a programme only from the aerial or from the cable system.

Only when a video recorder is connected to MONITOR OUT is it possible to record a programme from other equipment connected to the TV. See page 32.

Connect Video and Audio left (mono) and Audio right cables from the video recorder A/V inputs to the VIDEO and

AUDIO L (mono) and AUDIO R sockets of the MONITOR OUT on your TV.

5	Connect from the RF output on the video recorder to the
	ANTENNA IN 75Ω socket on your TV.

DVD Player

Note : Progressive-scan DVD players can be connected to the AV4 or AV5 inputs only.

			1
5	4		2
	A/V IN		A/V OUT
RF OUT	RF IN	RF OUT	RF IN
		3
			A/V PERIPHERAL
	VIDEO RECORDER

Connect the cables of your DVD player with component video
1 output to the Y-Pb-Pr INPUT-AV 1 sockets on your TV.	REAR OF TV

ANTENNA IN 75Ω AMP SWITCH

2 Connect the cables from the Video and Audio (L and R) outputs on the DVD player to the INPUT-AV 1 VIDEO and AUDIO L (mono) and R inputs on your TV.

See the handbook for your DVD player.

Note :The names of the component video sockets may differ depending on the DVD player or digital source equipment used. For example, besides YPbPr, you may see R-Y/B-Y/Y or CrCbY. Although abbreviations and terms may vary, the letters B and R stand for the blue and red color component signal connectors, respectively.The Y indicates the luminance signal. If necessary, see the handbook for the digital equipment for more information.

		EXT	INT
		+	_		AV5-RGB, 480p/1080i-60Hz, 576p-50Hz
		CENTER CHANNEL AMP INPUT
					AV4-480p/1080i-60Hz, 576p-50Hz
						G/Y
	INPUT-AV 1		MONITOR INPUT-AV 2		SUBWOOFER	R/Pr
			OUT
		Y			1	B/Pb
2	VIDEO		VIDEO
	S-VIDEO		S-	VIDEO
	L	Pb				V
	L		L			L	L
						SYNC
	AUDIOR	Pr	AUDIOR			H AUDIOR	AUDIOR
				COMPONENT VIDEO
A/V OUT						OUT

DVD PLAYER

22
