Connecting The Camera

Connecting The Camera

Before you install the camera, carefully plan where and how it will be positioned,andwhereyouwillroutethecablethatconnectsthecamera to the power adapter.

Before starting permanent installation, verify its performance by observing the image on a monitor when camera is positioned in the same location/position where it will be permanently installed.

Installation Warnings

Aim the Cameras to best optimize the viewing area: Select a location for the camera that provides a clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong light source or direct sunlight.

Avoid installing the cameras where there are thick walls or obstructions between the Cameras and the Receiver*.

Select a location for the camera that has an ambient temperature between 14°F~122°F (-10°C~50°C)

For outdoor use, installation under a shelter is recommended.

*Avoid installing in a location which requires the wireless signal to pass through cement, concrete, and metal structures. This will reduce the range of transmission.

For details, see “Appendix C: Facts About Digital Wireless Cameras” on page 11.

Camera Setup

To install the camera:

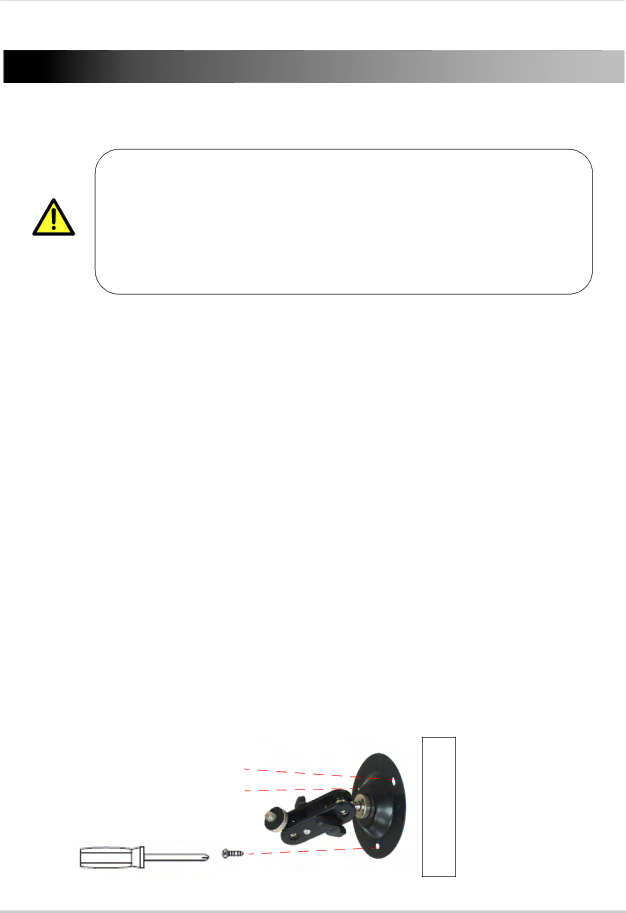

1Use the included mounting screws to mount the stand to the mounting surface:

Mark the position of the screw holes on the wall

Drill holes and insert the drywall plugs as needed

Firmly attach the stand to the wall using the provided screws
