Page 44

44 EN

USING THE REMOTE CONTROL UNIT (cont.)



To AV

To JLIP/





EDIT

Connector





cover**

Core





filter



To S



Core filter







Editing cable



(provided)

Core filter





S-Video cable

Audio/Video

cable

(optional)

(provided)



White to



AUDIO L IN



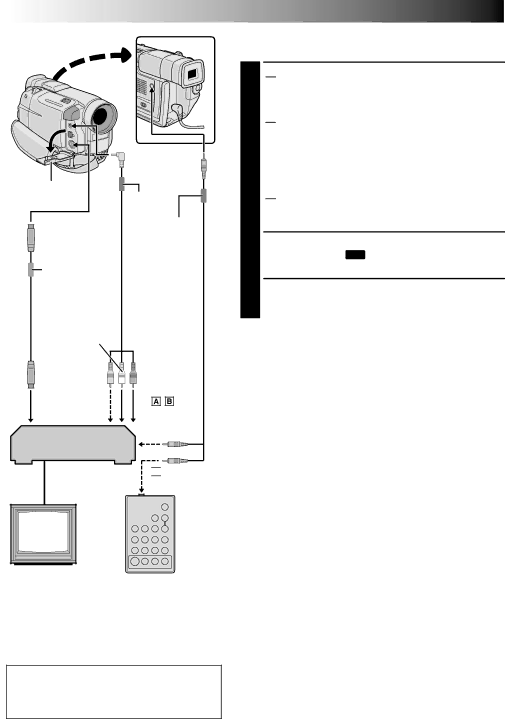

MAKE CONNECTIONS

Also refer to pg. 34 and 35.

1 A JVC VCR equipped with a remote pause connector . . .

... connect the editing cable to the Remote PAUSE connector.

A JVC VCR not equipped with a remote pause connector but equipped with an R.A. EDIT connector . . .

... connect the editing cable to the R.A.EDIT connector.

A VCR other than above . . .

... connect the editing cable to the remote control’s PAUSE IN connector.

2 Insert a recorded tape into the camcorder. Set the

Power Switch to “ ” while pressing down the Lock Button located on the switch.

3 Turn the VCR power on, insert a recordable tape and engage the AUX mode (refer to the VCR’s instructions).

NOTES:

● Before Random Assemble Editing, make sure the

indications do not appear on the TV monitor. If they do,

Yellow to

VIDEO IN*

To

S-VIDEO IN

VCR

Red to

AUDIO R IN

To Remote PAUSE or R.A.EDIT

they will be recorded onto the new tape.

To choose whether or not the following displays appear on the connected TV . . .

•Date/Time

.... set “DATE/TIME” to “ON” or “OFF” in the Menu

Screen ( pg. 32).

•Time Code

.... set “TIME CODE” to “ON” or “OFF” in the Menu

To PAUSE IN

TV

RM-V700U (optional)

*Connect when an S-Video cable is not used.

**When connecting cables, open this cover.

ATTENTION FOR EDITING CABLE

Make sure you connect the end with the core filter to the camcorder.

Screen ( pg. 32).

•Playback Sound Mode, Tape Speed And Tape Running Displays

.... set “ON SCREEN” to “LCD” or “SIMPLE” in the Menu Screen ( pg. 32).

●Use the provided cables, making sure to connect the end with a core filter to the camcorder. The core filter reduces interference.

●The S-Video cable is optional. Be sure to use the YTU94146A S-Video cable.

Consult the JVC Service Center described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camcorder. The core filter reduces interference.

●When editing on a VCR equipped with a DV input connector, an optional DV cable can be connected instead of an S-Video cable and audio/video cable.
