Pre-Installation Requirements

To install the Winegard Motorized Sensar antenna, check with your RV dealer or manufacturer. Your RV may already be pre-wired for this system, and/or may have a reinforced roof area available.

STEP 1: Choose location for antenna system on roof area. Figure 3 illustrates placement of system, showing it in travel position. You must be able to raise and rotate antenna without interfering with other roof-mounted equipment. When selecting location, keep in mind how you will route the cables to and from mount. Beware of any obstacles in roof area that may interfere with or be damaged during installation.

STEP 2: Choose location inside RV for mounting control panel. It is recommended that the control panel be in viewing area of most watched TV so you can see TV picture to turn antenna to best picture reception for your area. A 12VDC power source must also be available.

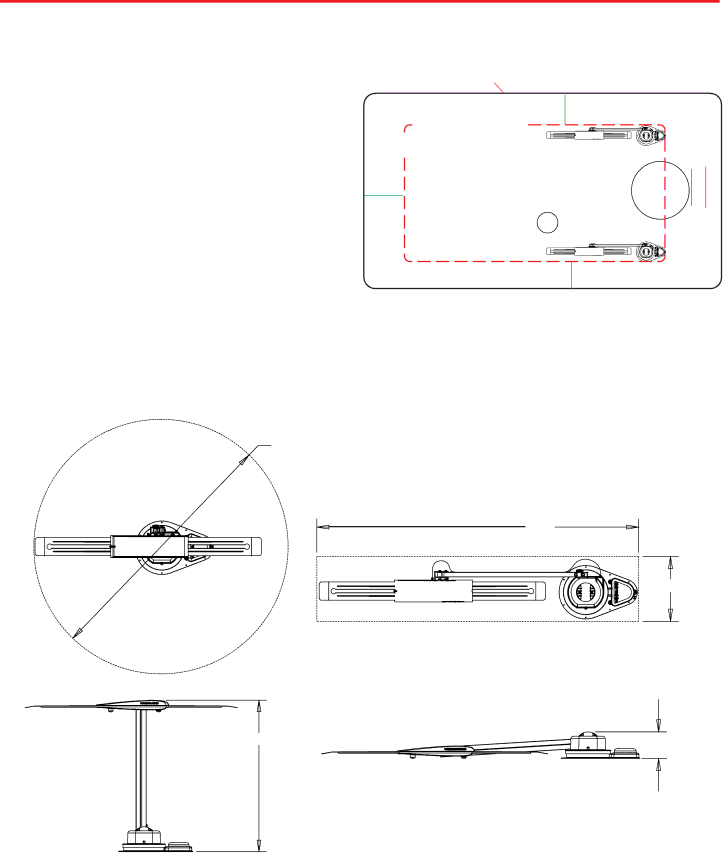

FIGURE 3

Roof Edge









































































































ef

2Feet Min.

c10 inches dMin.

OFFRONT

RV

e 2 Feetf

Min.

c10 inches dMin.

Ø 52" Raised Operating Diameter

66"

13.5"

33.5" Raised Height

5.5



3
