Life Fitness PSSLC manual Psslc Seated LEG Curl PS-ST5 Seat Assembly Legend

Page 10

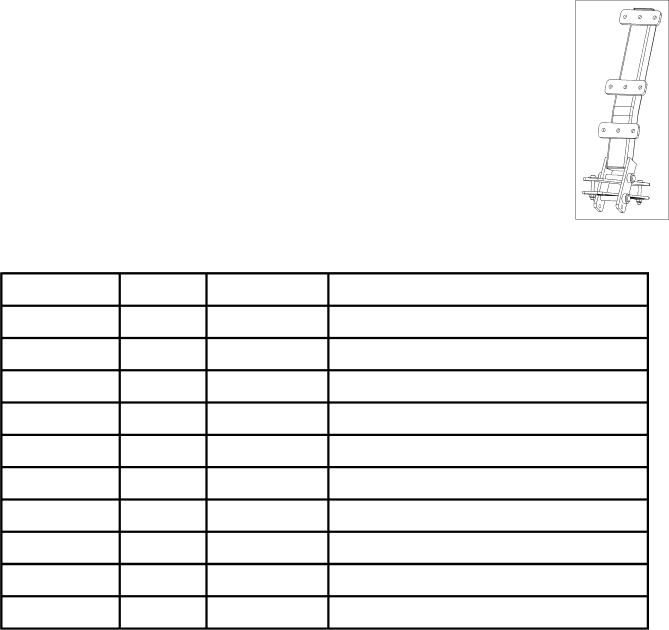

PSSLC SEATED LEG CURL

PS-ST5 SEAT ASSEMBLY LEGEND

ITEM NO.

QTY.

PART NO.

DESCRIPTION

1

1

7384201

WELDMENT, PS-ST5









2

4

3103301

SHAFT COLLAR, 3/4 I.D. ZINC









3

2

7359301

.75" SS ROUND SEAT PIN









4

2

7352301

CAP, END 2 X 3









5

1

7359701

SEATRACK FRONT









6

1

7359801

SEATRACK BACK









7

2

3236212

SCREW, M10 X1.5 75MM









8

2

3236801

NUT, M10 HEX NYLOCK SS









9

1

7422002

LABEL, SEAT ADJUST









10

4

3236602

WASHER, 3/8 ID X 1.25 OD SS
