GFX-120/212 Amplifier

12 13 14 15 16

Slapback delay

Long delay w/regeneration

Light Flange

Heavy Flange

Slow Chorus

Fast Chorus

Chorus w/small room reverb

Chorus w/large room reverb

Small room reverb

Large room reverb

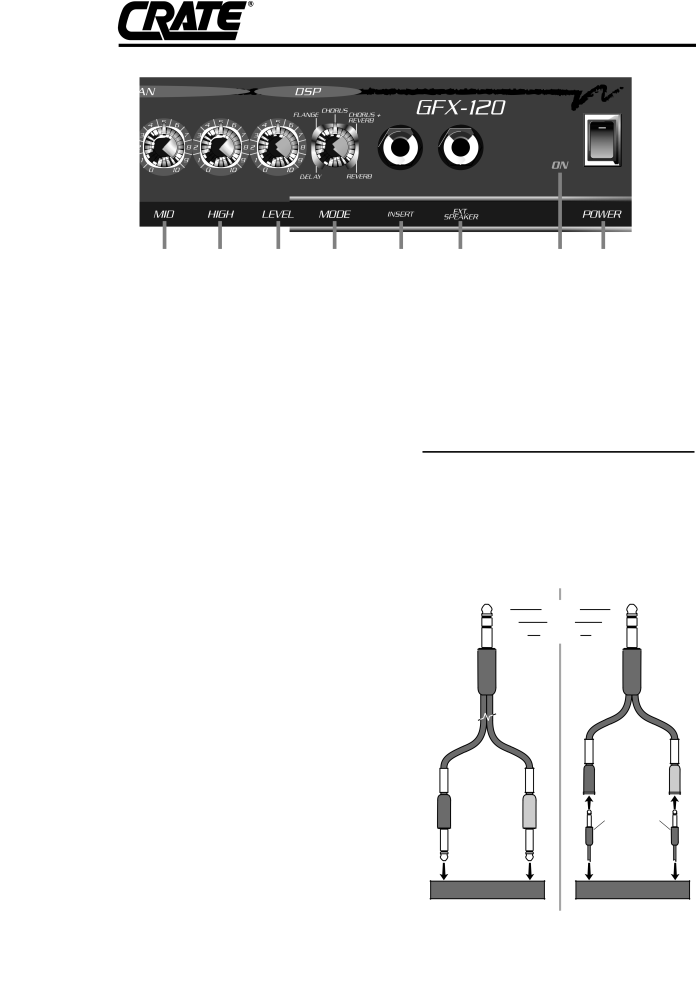

16:INSERT: Connect an external effects device via this jack. Use a stereo 1/4” male Y-cord: ring = send, tip = return, sleeve = ground. See the illus- tration on the panel to the right for more informa- tion.

17:EXT. SPEAKER: Connect to an extension speaker cabinet with this jack. The jack is wired in series with the internal speaker(s).

18:POWER ON LED: Lights when the amplifier is turned on.

19:POWER SWITCH: Turns the amplifier ON in the up position, off in the down position.

20.POWER CORD (rear panel, not shown): Your GFX-120/212 is equipped with a heavy-duty grounded three-wire power cord. Be sure this cord is properly plugged into a safely wired grounded

120volt, 60Hz AC power outlet before use. (If your GFX-120/212 was purchased outside the United States, refer to the rear panel for power ratings.) For your safety, never attempt to defeat the ground connection on this cord.

21:FUSE (rear panel, not shown): Protects the amplifier against damages caused from a faulty AC power source or other problems. If the fuse blows, replace it ONLY with the same size and type fuse. If the fuse blows repeatedly check the AC source; if it’s okay, contact your Crate dealer for service information.

17

18

19

22:CHANNEL SELECT / GAIN FOOTSWITCH JACK (rear panel, not shown): Connect the stereo 1/4” plug of the supplied three-button footswitch here for remote control of the Channel Select and Gain Select settings.

23:DSP FOOTSWITCH JACK (rear panel, not shown): Connect the mono 1/4” plug of the sup- plied three-button footswitch here for remote con- trol of the DSP on and off.

Connecting to the Insert jack:

The Insert jack (#16) lets you patch external effects into the amplifier just prior to its power amp stage. Use Crate’s STP201, STP202 or STP203 stereo- to-mono Y-cord or an adapter such as Crate’s YPP117 and 2 1/4” mono signal cables to connect to the effect as shown below.

Stereo-to-mono Y-cord:

Y-adapter and 2 cables:

to Insert

TIP



RETURN

TIP

to Insert

jack

RING



SEND

RING

jack



SLEEVE



GROUND

SLEEVE



(STP201, 3'







(YPP117)



STP202, 6'









STP203, 9')



















T

R I









I P

N G

T



R I







I P



N G















(1/4"-TO-1/4"









MONO SHIELDED









CABLES)

to

to





to

to

effect

effect





effect

effect

"OUT"

"IN"





"OUT"

"IN"

jack

jack





jack

jack

External Effect





External Effect
