Hand Held Products 7600 Supplying Power to the QuadCharger, Power Supply Connector, Power Switch

Page 88

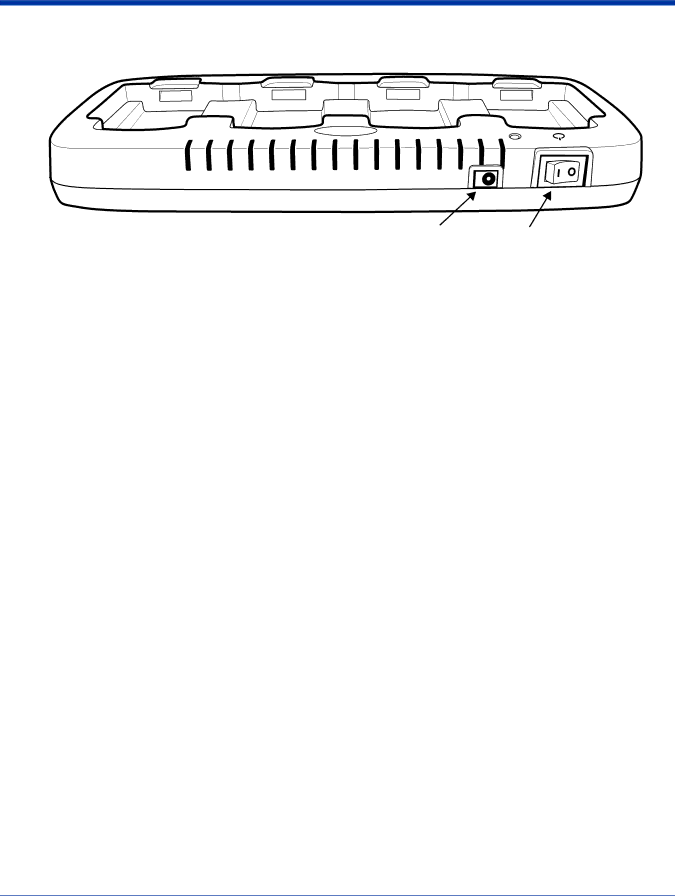

Back Panel

Power Supply Connector

Power Switch

Power Supply Connector

Use this connector to attach the power supply to the QuadCharger. The universal power supply accepts input voltages between 90-265 volts.

Power Switch

Toggle the power switch to turn the QuadCharger on and off.

Supplying Power to the QuadCharger

Use the power adapter cable that comes with the Dolphin QuadCharger so that the input voltage is adjusted appropriately.

1.Locate the AC power adapter cable and plug it into the power source.

2.Connect the power cable to the power adapter.

3.Connect the power cable to the power supply connector on the back of the QuadCharger.

4.Press the power switch to the ON position.

5.The device performs the following power-up diagnostic routine for each slot indicated by the Status LEDs.:

•All ON Orange

•delay (500ms)

•All ON Red

•delay (500ms)

•All ON Green

•delay (500ms)

•All OFF

9 - 2	Rev D	Dolphin® 7600 User’s Guide
	10/18/2007
