Allied Telesis AT-FS238b/2, AT-FS238b/1, AT-FS238a/2, AT-FS238a/1 manual Connecting the Stripped Wire

Page 33

AT-FS238a/x and AT-FS238b/x Series Installation Guide

Note

UL recognized wires of 22-gauge minimum should be provided by the installer.

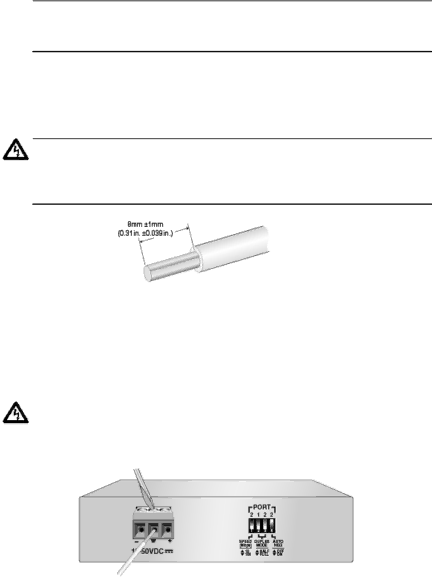

5.With a 22-gauge wire-stripping tool, strip the three wires in the tray cable coming from the DC input power source to 8mm ± 1mm

(0.31in.± 0.039in.), as shown in Figure 11 on page 21.

Warning

Do not strip more than the recommended amount of wire. Stripping more than the recommended amount can create a safety hazard by leaving exposed wire on the terminal block after installation. 17





Figure 11 Stripped Wire







6.

Connect the ground wire to the terminal marked with the ground symbol



by inserting the wire into power connector that comes with the converter



and tightening the connection with a flathead screwdriver, as shown in





Figure 12.























Warning











When installing this equipment, always ensure that the frame ground





connection is installed first and disconnected last.

18

￿







Figure 12 Connecting the Stripped Wire







7.

Connect the negative feed wire to the terminal block marked (-).



8.

Connect the positive feed wire to the terminal block￿marked (+).

21
